KPropsDlgPlugin Class Reference

#include <kpropertiesdialog.h>

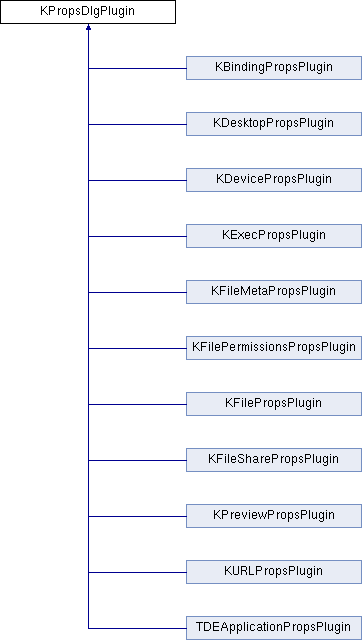

Inheritance diagram for KPropsDlgPlugin:

Public Slots
void	setDirty ()

Signals
void	changed ()

Public Member Functions
	KPropsDlgPlugin (KPropertiesDialog *_props)
virtual void	applyChanges ()
void	setDirty (bool b)
bool	isDirty () const

Static Public Member Functions
static bool	isDesktopFile (KFileItem *_item)

Protected Member Functions
virtual void	virtual_hook (int id, void *data)

Protected Attributes
KPropertiesDialog *	properties
int	fontHeight

Detailed Description

A Plugin in the Properties dialog This is an abstract class.

You must inherit from this class to build a new kind of tabbed page for the KPropertiesDialog. A plugin in itself is just a library containing code, not a dialog's page. It's up to the plugin to insert pages into the parent dialog.

To make a plugin available, define a service that implements the KPropsDlg/Plugin servicetype, as well as the mimetypes for which the plugin should be created. For instance, ServiceTypes=KPropsDlg/Plugin,text/html,application/x-mymimetype.

You can also include X-TDE-Protocol=file if you want that plugin to be loaded only for local files, for instance.

Definition at line 437 of file kpropertiesdialog.h.

Constructor & Destructor Documentation

KPropsDlgPlugin()

KPropsDlgPlugin::KPropsDlgPlugin

(

KPropertiesDialog *

_props

)

Constructor To insert tabs into the properties dialog, use the add methods provided by KDialogBase (the properties dialog is a KDialogBase).

Definition at line 606 of file kpropertiesdialog.cpp.

~KPropsDlgPlugin()

KPropsDlgPlugin::~KPropsDlgPlugin ( )

virtual

Definition at line 615 of file kpropertiesdialog.cpp.

Member Function Documentation

applyChanges()

void KPropsDlgPlugin::applyChanges ( )

virtual

Applies all changes to the file.

This function is called when the user presses 'Ok'. The last plugin inserted is called first.

Reimplemented in KFileMetaPropsPlugin, KFilePropsPlugin, KFilePermissionsPropsPlugin, KURLPropsPlugin, KBindingPropsPlugin, KDevicePropsPlugin, KDesktopPropsPlugin, KExecPropsPlugin, TDEApplicationPropsPlugin, and KFileSharePropsPlugin.

Definition at line 665 of file kpropertiesdialog.cpp.

changed

void KPropsDlgPlugin::changed ( )

signal

Emit this signal when the user changed anything in the plugin's tabs.

The hosting PropertiesDialog will call applyChanges only if the PropsPlugin has emitted this signal before.

isDesktopFile()

bool KPropsDlgPlugin::isDesktopFile ( KFileItem *  _item )

static

Convenience method for most ::supports methods.

Returns

true if the file is a local, regular, readable, desktop file

Definition at line 620 of file kpropertiesdialog.cpp.

isDirty()

bool KPropsDlgPlugin::isDirty

(

)

const

Definition at line 660 of file kpropertiesdialog.cpp.

setDirty [1/2]

void KPropsDlgPlugin::setDirty ( )

slot

Definition at line 655 of file kpropertiesdialog.cpp.

setDirty() [2/2]

void KPropsDlgPlugin::setDirty

(

bool

b

)

Definition at line 650 of file kpropertiesdialog.cpp.

virtual_hook()

void KPropsDlgPlugin::virtual_hook ( int  id, void *  data  )

protectedvirtual

Definition at line 3637 of file kpropertiesdialog.cpp.

Member Data Documentation

fontHeight

int KPropsDlgPlugin::fontHeight

protected

Definition at line 482 of file kpropertiesdialog.h.

properties

KPropertiesDialog* KPropsDlgPlugin::properties

protected

Pointer to the dialog.

Definition at line 480 of file kpropertiesdialog.h.

---

The documentation for this class was generated from the following files:

• kpropertiesdialog.h
• kpropertiesdialog.cpp
