#include <tdefiledialog.h>

Inheritance diagram for KFileDialog:

Public Types
enum	OperationMode { Other = 0 , Opening , Saving }

Signals
void	fileSelected (const TQString &)

void	fileHighlighted (const TQString &)

void	selectionChanged ()

void	filterChanged (const TQString &filter)

Public Member Functions
	KFileDialog (const TQString &startDir, const TQString &filter, TQWidget parent, const char name, bool modal)

	KFileDialog (const TQString &startDir, const TQString &filter, TQWidget parent, const char name, bool modal, TQWidget *widget)

	~KFileDialog ()

KURL	selectedURL () const

KURL::List	selectedURLs () const

KURL	baseURL () const

TQString	selectedFile () const

TQStringList	selectedFiles () const

void	setURL (const KURL &url, bool clearforward=true)

void	setSelection (const TQString &name)

void	setOperationMode (KFileDialog::OperationMode)

OperationMode	operationMode () const

void	setKeepLocation (bool keep)

bool	keepsLocation () const

void	setFilter (const TQString &filter)

TQString	currentFilter () const

void	setFilterMimeType (const TQString &label, const KMimeType::List &types, const KMimeType::Ptr &defaultType) TDE_DEPRECATED

KMimeType::Ptr	currentFilterMimeType ()

void	setMimeFilter (const TQStringList &types, const TQString &defaultType=TQString::null)

TQString	currentMimeFilter () const

void	clearFilter ()

void	setPreviewWidget (const TQWidget *w) TDE_DEPRECATED

void	setPreviewWidget (const KPreviewWidgetBase *w)

virtual void	show ()

void	setMode (KFile::Mode m)

void	setMode (unsigned int m)

KFile::Mode	mode () const

void	setLocationLabel (const TQString &text)

TDEToolBar *	toolBar () const

KPushButton *	okButton () const

KPushButton *	cancelButton () const

KURLBar *	speedBar ()

TDEActionCollection *	actionCollection () const

int	pathComboIndex ()

Static Public Member Functions
static TQString	getOpenFileName (const TQString &startDir=TQString::null, const TQString &filter=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static TQString	getOpenFileNameWId (const TQString &startDir, const TQString &filter, WId parent_id, const TQString &caption)

static TQStringList	getOpenFileNames (const TQString &startDir=TQString::null, const TQString &filter=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static KURL	getOpenURL (const TQString &startDir=TQString::null, const TQString &filter=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static KURL::List	getOpenURLs (const TQString &startDir=TQString::null, const TQString &filter=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static TQString	getSaveFileName (const TQString &startDir=TQString::null, const TQString &filter=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static TQString	getSaveFileNameWId (const TQString &dir, const TQString &filter, WId parent_id, const TQString &caption)

static KURL	getSaveURL (const TQString &startDir=TQString::null, const TQString &filter=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static TQString	getExistingDirectory (const TQString &startDir=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static KURL	getExistingURL (const TQString &startDir=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static KURL	getImageOpenURL (const TQString &startDir=TQString::null, TQWidget *parent=0, const TQString &caption=TQString::null)

static KURL	getStartURL (const TQString &startDir, TQString &recentDirClass)

static void	setStartDir (const KURL &directory)

Protected Slots
void	urlEntered (const KURL &)

void	enterURL (const KURL &url)

void	enterURL (const TQString &url)

void	locationActivated (const TQString &url)

void	toolbarCallback (int)

void	pathComboChanged (const TQString &)

void	dirCompletion (const TQString &)

void	slotFilterChanged ()

void	fileHighlighted (const KFileItem *i)

void	fileSelected (const KFileItem *i)

void	slotStatResult (TDEIO::Job *job)

void	slotLoadingFinished ()

void	fileCompletion (const TQString &)

void	toggleSpeedbar (bool)

void	toggleBookmarks (bool show)

virtual void	updateStatusLine (int dirs, int files)

virtual void	slotOk ()

virtual void	accept ()

virtual void	slotCancel ()

void	slotAutoSelectExtClicked ()

void	addToRecentDocuments ()

void	initSpeedbar ()

Protected Member Functions
virtual void	keyPressEvent (TQKeyEvent *e)

void	init (const TQString &startDir, const TQString &filter, TQWidget *widget)

virtual void	initGUI ()

void	multiSelectionChanged ()

virtual void	readConfig (TDEConfig *, const TQString &group=TQString::null)

virtual void	writeConfig (TDEConfig *, const TQString &group=TQString::null)

virtual void	readRecentFiles (TDEConfig *)

virtual void	saveRecentFiles (TDEConfig *)

KURL::List	tokenize (const TQString &line) const

KURL	getCompleteURL (const TQString &)

TQString	currentFilterExtension ()

void	updateAutoSelectExtension ()

KURL::List &	parseSelectedURLs () const

virtual void	virtual_hook (int id, void *data)

Protected Attributes
TDEToolBar *	toolbar

KURLComboBox *	locationEdit

KFileFilterCombo *	filterWidget

KDirOperator *	ops

bool	autoDirectoryFollowing

Static Protected Attributes
static KURL *	lastDirectory

Detailed Description

Provides a user (and developer) friendly way to select files and directories.

The widget can be used as a drop in replacement for the TQFileDialog widget, but has greater functionality and a nicer GUI.

You will usually want to use one of the static methods getOpenFileName(), getSaveFileName(), getOpenURL() or for multiple files getOpenFileNames() or getOpenURLs().

The dialog has been designed to allow applications to customise it by subclassing. It uses geometry management to ensure that subclasses can easily add children that will be incorporated into the layout.

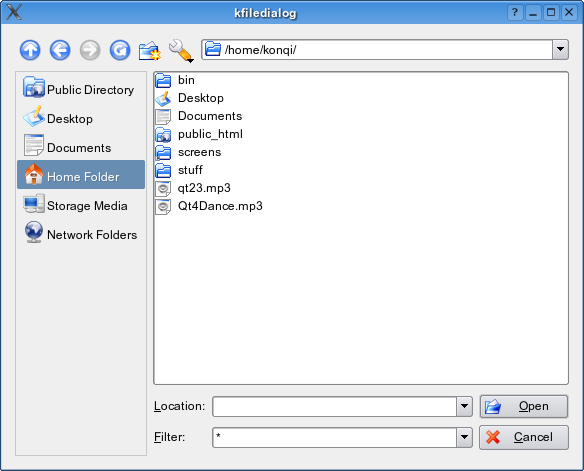

KDE File Dialog

A file selection dialog.

Author: Richard J. Moore rich@.nosp@m.kde..nosp@m.org, Carsten Pfeiffer pfeif.nosp@m.fer@.nosp@m.kde.o.nosp@m.rg

Definition at line 76 of file tdefiledialog.h.

Member Enumeration Documentation

◆ OperationMode

enum KFileDialog::OperationMode

Defines some default behavior of the filedialog.

E.g. in mode Opening and Saving, the selected files/urls will be added to the "recent documents" list. The Saving mode also implies setKeepLocation() being set.

Other means that no default actions are performed.

See also: setOperationMode; operationMode

Definition at line 93 of file tdefiledialog.h.

Constructor & Destructor Documentation

◆ KFileDialog() [1/2]

KFileDialog::KFileDialog	(	const TQString &	startDir,
		const TQString &	filter,
		TQWidget *	parent,
		const char *	name,
		bool	modal
	)

Constructs a file dialog.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	A shell glob or a mime-type-filter that specifies which files to display.
parent	The parent widget of this dialog
name	The name of this object
modal	Whether to create a modal dialog or not See setFilter() for details on how to use this argument.

Definition at line 168 of file tdefiledialog.cpp.

◆ KFileDialog() [2/2]

KFileDialog::KFileDialog	(	const TQString &	startDir,
		const TQString &	filter,
		TQWidget *	parent,
		const char *	name,
		bool	modal,
		TQWidget *	widget
	)

Constructs a file dialog.

The parameters here are identical to the first constructor except for the addition of a TQWidget parameter.

Historical note: The original version of KFileDialog did not have this extra parameter. It was added later, and, in order to maintain binary compatibility, it was placed in a new constructor instead of added to the original one.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	A shell glob or a mime-type-filter that specifies which files to display. See setFilter() for details on how to use this argument.
widget	A widget, or a widget of widgets, for displaying custom data in the dialog. This can be used, for example, to display a check box with the caption "Open as read-only". When creating this widget, you don't need to specify a parent, since the widget's parent will be set automatically by KFileDialog.
parent	The parent widget of this dialog
name	The name of this object
modal	Whether to create a modal dialog or not

Since: 3.1

Definition at line 175 of file tdefiledialog.cpp.

◆ ~KFileDialog()

KFileDialog::~KFileDialog ( )

Destructs the file dialog.

Definition at line 183 of file tdefiledialog.cpp.

Member Function Documentation

◆ actionCollection()

TDEActionCollection * KFileDialog::actionCollection ( ) const

Returns: a pointer to the action collection, holding all the used TDEActions.

Definition at line 2204 of file tdefiledialog.cpp.

◆ baseURL()

KURL KFileDialog::baseURL ( ) const

Returns: the currently shown directory.

Definition at line 1590 of file tdefiledialog.cpp.

◆ cancelButton()

KPushButton * KFileDialog::cancelButton ( ) const

Returns: a pointer to the Cancel-Button in the filedialog. You may use it e.g. to set a custom text to it.

Definition at line 1803 of file tdefiledialog.cpp.

◆ clearFilter()

void KFileDialog::clearFilter ( )

Clears any mime- or namefilter.

Does not reload the directory.

Definition at line 270 of file tdefiledialog.cpp.

◆ currentFilter()

TQString KFileDialog::currentFilter ( ) const

Returns the current filter as entered by the user or one of the predefined set via setFilter().

See also: setFilter(); filterChanged()

Definition at line 233 of file tdefiledialog.cpp.

◆ currentFilterExtension()

TQString KFileDialog::currentFilterExtension ( void )

protected

Returns the filename extension associated with the currentFilter().

TQString::null is returned if an extension is not available or if operationMode() != Saving.

Since: 3.2

Definition at line 1910 of file tdefiledialog.cpp.

◆ currentFilterMimeType()

KMimeType::Ptr KFileDialog::currentFilterMimeType ( )

Returns the mimetype for the desired output format.

This is only valid if setFilterMimeType() has been called previously.

See also: setFilterMimeType()

Definition at line 292 of file tdefiledialog.cpp.

◆ currentMimeFilter()

TQString KFileDialog::currentMimeFilter ( ) const

The mimetype for the desired output format.

This is only valid if setMimeFilter() has been called previously.

See also: setMimeFilter()

Definition at line 281 of file tdefiledialog.cpp.

◆ dirCompletion

void KFileDialog::dirCompletion ( const TQString & )

protectedslot

Deprecated:

Definition at line 1295 of file tdefiledialog.cpp.

◆ fileHighlighted

void KFileDialog::fileHighlighted ( const TQString & )

signal

Emitted when the user highlights a file.

◆ fileSelected

void KFileDialog::fileSelected ( const TQString & )

signal

Emitted when the user selects a file.

It is only emitted in single- selection mode. The best way to get notified about selected file(s) is to connect to the okClicked() signal inherited from KDialogBase and call selectedFile(), selectedFiles(), selectedURL() or selectedURLs().

◆ filterChanged

void KFileDialog::filterChanged ( const TQString & filter )

signal

Emitted when the filter changed, i.e.

the user entered an own filter or chose one of the predefined set via setFilter().

Parameters

filter contains the new filter (only the extension part, not the explanation), i.e. "*.cpp".

See also: setFilter(); currentFilter()

◆ getCompleteURL()

KURL KFileDialog::getCompleteURL ( const TQString & _url )

protected

Returns the absolute version of the URL specified in locationEdit.

Since: 3.2

Definition at line 309 of file tdefiledialog.cpp.

◆ getExistingDirectory()

TQString KFileDialog::getExistingDirectory	(	const TQString &	startDir = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and returns the selected directory or an empty string if none was chosen.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1412 of file tdefiledialog.cpp.

◆ getExistingURL()

KURL KFileDialog::getExistingURL	(	const TQString &	startDir = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and returns the selected directory or an empty string if none was chosen.

Contrary to getExistingDirectory(), this method allows the selection of a remote directory.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Since: 3.1

Definition at line 1405 of file tdefiledialog.cpp.

◆ getImageOpenURL()

KURL KFileDialog::getImageOpenURL	(	const TQString &	startDir = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog with an image previewer and returns the selected url or an empty string if none was chosen.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1429 of file tdefiledialog.cpp.

◆ getOpenFileName()

TQString KFileDialog::getOpenFileName	(	const TQString &	startDir = `TQString::null`,
		const TQString &	filter = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and return the selected filename or an empty string if none was chosen.

Note that with this method the user must select an existing filename.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	This is a space separated list of shell globs. You can set the text to be displayed for the glob, and provide multiple globs. See setFilter() for details on how to do this...
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1319 of file tdefiledialog.cpp.

◆ getOpenFileNames()

TQStringList KFileDialog::getOpenFileNames	(	const TQString &	startDir = `TQString::null`,
		const TQString &	filter = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and returns the selected filenames or an empty list if none was chosen.

Note that with this method the user must select an existing filename.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	This is a space separated list of shell globs. You can set the text to be displayed for the glob, and provide multiple globs. See setFilter() for details on how to do this...
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1359 of file tdefiledialog.cpp.

◆ getOpenFileNameWId()

TQString KFileDialog::getOpenFileNameWId	(	const TQString &	startDir,
		const TQString &	filter,
		WId	parent_id,
		const TQString &	caption
	)

static

Use this version only if you have no TQWidget available as parent widget.

This can be the case if the parent widget is a widget in another process or if the parent widget is a non-Qt widget. For example, in a GTK program.

Since: 3.4

Definition at line 1335 of file tdefiledialog.cpp.

◆ getOpenURL()

KURL KFileDialog::getOpenURL	(	const TQString &	startDir = `TQString::null`,
		const TQString &	filter = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and returns the selected URL or an empty string if none was chosen.

Note that with this method the user must select an existing URL.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	This is a space separated list of shell globs. You can set the text to be displayed for the glob, and provide multiple globs. See setFilter() for details on how to do this...
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1375 of file tdefiledialog.cpp.

◆ getOpenURLs()

KURL::List KFileDialog::getOpenURLs	(	const TQString &	startDir = `TQString::null`,
		const TQString &	filter = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and returns the selected URLs or an empty list if none was chosen.

Note that with this method the user must select an existing filename.

Parameters

startDir	This can either be The URL of the directory to start in. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	This is a space separated list of shell globs. You can set the text to be displayed for the glob, and provide multiple globs. See setFilter() for details on how to do this...
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1389 of file tdefiledialog.cpp.

◆ getSaveFileName()

TQString KFileDialog::getSaveFileName	(	const TQString &	startDir = `TQString::null`,
		const TQString &	filter = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and returns the selected filename or an empty string if none was chosen.

Note that with this method the user need not select an existing filename.

Parameters

startDir	This can either be The URL of the directory to start in. a relative path or a filename determining the directory to start in and the file to be selected. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	This is a space separated list of shell globs. You can set the text to be displayed for the glob, and provide multiple globs. See setFilter() for details on how to do this...
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1595 of file tdefiledialog.cpp.

◆ getSaveFileNameWId()

TQString KFileDialog::getSaveFileNameWId	(	const TQString &	dir,
		const TQString &	filter,
		WId	parent_id,
		const TQString &	caption
	)

static

This function accepts the window id of the parent window, instead of TQWidget*.

It should be used only when necessary.

Since: 3.4

Definition at line 1616 of file tdefiledialog.cpp.

◆ getSaveURL()

KURL KFileDialog::getSaveURL	(	const TQString &	startDir = `TQString::null`,
		const TQString &	filter = `TQString::null`,
		TQWidget *	parent = `0`,
		const TQString &	caption = `TQString::null`
	)

static

Creates a modal file dialog and returns the selected filename or an empty string if none was chosen.

Note that with this method the user need not select an existing filename.

Parameters

startDir	This can either be The URL of the directory to start in. a relative path or a filename determining the directory to start in and the file to be selected. TQString::null to start in the current working directory, or the last directory where a file has been selected. ':<keyword>' to start in the directory last used by a filedialog in the same application that specified the same keyword. '::<keyword>' to start in the directory last used by a filedialog in any application that specified the same keyword.
filter	This is a space separated list of shell globs. You can set the text to be displayed for the glob, and provide multiple globs. See setFilter() for details on how to do this...
parent	The widget the dialog will be centered on initially.
caption	The name of the dialog widget.

Definition at line 1645 of file tdefiledialog.cpp.

◆ getStartURL()

KURL KFileDialog::getStartURL	(	const TQString &	startDir,
		TQString &	recentDirClass
	)

static

This method implements the logic to determine the user's default directory to be listed.

E.g. the documents direcory, home directory or a recently used directory.

Parameters

startDir	A url/directory, to be used. May use the ':' and '::' syntax as documented in the KFileDialog() constructor.
recentDirClass	If the ':' or '::' syntax is used, recentDirClass will contain the string to be used later for TDERecentDir::dir()

Returns: The URL that should be listed by default (e.g. by KFileDialog or KDirSelectDialog).

Since: 3.1

Definition at line 2306 of file tdefiledialog.cpp.

◆ init()

void KFileDialog::init	(	const TQString &	startDir,
		const TQString &	filter,
		TQWidget *	widget
	)

protected

Perform basic initialization tasks.

Called by constructors.

Since: 3.1

Definition at line 814 of file tdefiledialog.cpp.

◆ initGUI()

void KFileDialog::initGUI ( )

protectedvirtual

rebuild geometry management.

Definition at line 1071 of file tdefiledialog.cpp.

◆ keepsLocation()

bool KFileDialog::keepsLocation ( ) const

Returns: whether the contents of the location edit are kept when changing directories.

Definition at line 1829 of file tdefiledialog.cpp.

◆ keyPressEvent()

void KFileDialog::keyPressEvent ( TQKeyEvent * e )

protectedvirtual

Reimplemented to animate the cancel button.

Definition at line 2209 of file tdefiledialog.cpp.

◆ mode()

KFile::Mode KFileDialog::mode ( ) const

Returns the mode of the filedialog.

See also: setMode()

Definition at line 1694 of file tdefiledialog.cpp.

◆ multiSelectionChanged()

void KFileDialog::multiSelectionChanged ( )

protected

called when an item is highlighted/selected in multiselection mode.

handles setting the locationEdit.

Definition at line 744 of file tdefiledialog.cpp.

◆ okButton()

KPushButton * KFileDialog::okButton ( ) const

Returns: a pointer to the OK-Button in the filedialog. You may use it e.g. to set a custom text to it.

Definition at line 1798 of file tdefiledialog.cpp.

◆ operationMode()

KFileDialog::OperationMode KFileDialog::operationMode ( ) const

Returns: the current operation mode, Opening, Saving or Other. Default is Other.

See also: operationMode; KFileDialog::OperationMode

Definition at line 1851 of file tdefiledialog.cpp.

◆ pathComboChanged

void KFileDialog::pathComboChanged ( const TQString & )

protectedslot

Deprecated:

Definition at line 1292 of file tdefiledialog.cpp.

◆ pathComboIndex()

int KFileDialog::pathComboIndex ( )

Returns: the index of the path combobox so when inserting widgets into the dialog (e.g. subclasses) they can do so without hardcoding in an index

Definition at line 2291 of file tdefiledialog.cpp.

◆ readConfig()

void KFileDialog::readConfig	(	TDEConfig *	kc,
		const TQString &	group = `TQString::null`
	)

protectedvirtual

Reads configuration and applies it (size, recent directories, ...)

Definition at line 1700 of file tdefiledialog.cpp.

◆ readRecentFiles()

void KFileDialog::readRecentFiles ( TDEConfig * kc )

protectedvirtual

Reads the recent used files and inserts them into the location combobox.

Definition at line 1773 of file tdefiledialog.cpp.

◆ saveRecentFiles()

void KFileDialog::saveRecentFiles ( TDEConfig * kc )

protectedvirtual

Saves the entries from the location combobox.

Definition at line 1788 of file tdefiledialog.cpp.

◆ selectedFile()

TQString KFileDialog::selectedFile ( ) const

Returns the full path of the selected file in the local filesystem.

(Local files only)

Definition at line 1548 of file tdefiledialog.cpp.

◆ selectedFiles()

TQStringList KFileDialog::selectedFiles ( ) const

Returns a list of all selected local files.

Definition at line 1564 of file tdefiledialog.cpp.

◆ selectedURL()

KURL KFileDialog::selectedURL ( ) const

Returns: The selected fully qualified filename.

Definition at line 1447 of file tdefiledialog.cpp.

◆ selectedURLs()

KURL::List KFileDialog::selectedURLs ( ) const

Returns: The list of selected URLs.

Definition at line 1455 of file tdefiledialog.cpp.

◆ selectionChanged

void KFileDialog::selectionChanged ( )

signal

Emitted when the user hilights one or more files in multiselection mode.

Note: fileHighlighted() or fileSelected() are not emitted in multiselection mode. You may use selectedItems() to ask for the current highlighted items.

See also: fileSelected

◆ setFilter()

void KFileDialog::setFilter ( const TQString & filter )

Sets the filter to be used to filter.

You can set more filters for the user to select separated by '
'. Every filter entry is defined through namefilter|text to diplay. If no | is found in the expression, just the namefilter is shown. Examples:

tdefile->setFilter("*.cpp|C++ Source Files\n*.h|Header files");
tdefile->setFilter("*.cpp");
tdefile->setFilter("*.cpp|Sources (*.cpp)");
tdefile->setFilter("*.cpp|" + i18n("Sources (*.cpp)"));
tdefile->setFilter("*.cpp|C++ Source Files\n*.h|Header files");

Note: The text to display is not parsed in any way. So, if you want to show the suffix to select by a specific filter, you must repeat it.

If the filter contains an unescaped '/', a mimetype-filter is assumed. If you would like a '/' visible in your filter it can be escaped with a '\'. You can specify multiple mimetypes like this (separated with space):

tdefile->setFilter( "image/png text/html text/plain" );

tdefile->setFilter( "*.cue|CUE\\/BIN Files (*.cue)" );

See also: filterChanged; setMimeFilter

Definition at line 204 of file tdefiledialog.cpp.

◆ setFilterMimeType()

void KFileDialog::setFilterMimeType	(	const TQString &	label,
		const KMimeType::List &	types,
		const KMimeType::Ptr &	defaultType
	)

Sets the filter up to specify the output type.

Parameters

label	the label to use instead of "Filter:"
types	a list of mimetypes that can be used as output format
defaultType	the default mimetype to use as output format.

Do not use in conjunction with setFilter()

Deprecated:

Definition at line 239 of file tdefiledialog.cpp.

◆ setKeepLocation()

void KFileDialog::setKeepLocation ( bool keep )

Sets whether the filename/url should be kept when changing directories.

This is for example useful when having a predefined filename where the full path for that file is searched.

This is implicitly set when operationMode() is KFileDialog::Saving

getSaveFileName() and getSaveURL() set this to true by default, so that you can type in the filename and change the directory without having to type the name again.

Definition at line 1824 of file tdefiledialog.cpp.

◆ setLocationLabel()

void KFileDialog::setLocationLabel ( const TQString & text )

Sets the text to be displayed in front of the selection.

The default is "Location". Most useful if you want to make clear what the location is used for.

Definition at line 199 of file tdefiledialog.cpp.

◆ setMimeFilter()

void KFileDialog::setMimeFilter	(	const TQStringList &	types,
		const TQString &	defaultType = `TQString::null`
	)

Sets the filter up to specify the output type.

Parameters

types	a list of mimetypes that can be used as output format
defaultType	the default mimetype to use as output format, if any. If `defaultType` is set, it will be set as the current item. Otherwise, a first item showing all the mimetypes will be created. Typically, `defaultType` should be empty for loading and set for saving.

Do not use in conjunction with setFilter()

Definition at line 253 of file tdefiledialog.cpp.

◆ setMode() [1/2]

void KFileDialog::setMode ( KFile::Mode m )

Convenient overload of the other setMode(unsigned int) method.

Definition at line 1676 of file tdefiledialog.cpp.

◆ setMode() [2/2]

void KFileDialog::setMode ( unsigned int m )

Sets the mode of the dialog.

The mode is defined as (in tdefile.h):

enum Mode {
     File         = 1,
     Directory    = 2,
     Files        = 4,
     ExistingOnly = 8,
     LocalOnly    = 16
};

You can OR the values, e.g.

KFile::Mode mode = static_cast<KFile::Mode>( KFile::Files |
                                             KFile::ExistingOnly |
                                             KFile::LocalOnly );
setMode( mode );

Definition at line 1689 of file tdefiledialog.cpp.

◆ setOperationMode()

void KFileDialog::setOperationMode ( KFileDialog::OperationMode mode )

Sets the operational mode of the filedialog to Saving, Opening or Other.

This will set some flags that are specific to loading or saving files. E.g. setKeepLocation() makes mostly sense for a save-as dialog. So setOperationMode( KFileDialog::Saving ); sets setKeepLocation for example.

The mode Saving, together with a default filter set via setMimeFilter() will make the filter combobox read-only.

The default mode is Opening.

Call this method right after instantiating KFileDialog.

See also: operationMode; KFileDialog::OperationMode

Definition at line 1834 of file tdefiledialog.cpp.

◆ setPreviewWidget() [1/2]

void KFileDialog::setPreviewWidget ( const KPreviewWidgetBase * w )

Adds a preview widget and enters the preview mode.

In this mode the dialog is split and the right part contains your preview widget.

Ownership is transferred to KFileDialog. You need to create the preview-widget with "new", i.e. on the heap.

Parameters

w	The widget to be used for the preview.

Definition at line 303 of file tdefiledialog.cpp.

◆ setPreviewWidget() [2/2]

void KFileDialog::setPreviewWidget ( const TQWidget * w )

Deprecated:: Add a preview widget and enter the preview mode.

In this mode the dialog is split and the right part contains your widget. This widget has to inherit TQWidget and it has to implement a slot showPreview(const KURL &); which is called every time the file changes. You may want to look at koffice/lib/kofficecore/koFilterManager.cpp for some hints :)

Ownership is transferred to KFileDialog. You need to create the preview-widget with "new", i.e. on the heap.

Definition at line 297 of file tdefiledialog.cpp.

◆ setSelection()

void KFileDialog::setSelection ( const TQString & name )

Sets the file name to preselect to name.

This takes absolute URLs and relative file names.

Definition at line 1220 of file tdefiledialog.cpp.

◆ setURL()

void KFileDialog::setURL	(	const KURL &	url,
		bool	clearforward = `true`
	)

Sets the directory to view.

Parameters

url	URL to show.
clearforward	Indicates whether the forward queue should be cleared.

Definition at line 1159 of file tdefiledialog.cpp.

◆ speedBar()

KURLBar * KFileDialog::speedBar ( )

Returns: the KURLBar object used as the "speed bar". You can add custom entries to it like that:
KURLBar *urlBar = fileDialog->speedBar();

if ( urlBar )

urlBar->insertDynamicItem( someURL, i18n("The URL's description") );

KURLBar
KURLBar is a widget that displays icons together with a description.
Definition: kurlbar.h:231

KURLBar::insertDynamicItem
virtual KURLBarItem * insertDynamicItem(const KURL &url, const TQString &description, const TQString &icon=TQString::null, TDEIcon::Group group=TDEIcon::Panel)
Inserts a new dynamic item into the KURLBar and returns the created KURLBarItem.
Definition: kurlbar.cpp:372

Note that this method may return a null-pointer if the user configured to not use the speed-bar.

See also: KURLBar; KURLBar::insertDynamicItem

Since: 3.2

Definition at line 1808 of file tdefiledialog.cpp.

◆ toggleBookmarks

void KFileDialog::toggleBookmarks ( bool show )

protectedslot

Since: 3.4

Definition at line 2256 of file tdefiledialog.cpp.

◆ toggleSpeedbar

void KFileDialog::toggleSpeedbar ( bool show )

protectedslot

Since: 3.1

Definition at line 2220 of file tdefiledialog.cpp.

◆ tokenize()

KURL::List KFileDialog::tokenize ( const TQString & line ) const

protected

Parses the string "line" for files.

If line doesn't contain any ", the whole line will be interpreted as one file. If the number of " is odd, an empty list will be returned. Otherwise, all items enclosed in " " will be returned as correct urls.

Definition at line 1502 of file tdefiledialog.cpp.

◆ toolBar()

TDEToolBar* KFileDialog::toolBar ( ) const

inline

Returns a pointer to the toolbar.

You can use this to insert custom items into it, e.g.:

yourAction = new TDEAction( i18n("Your Action"), 0,
                          this, TQ_SLOT( yourSlot() ),
                          this, "action name" );
yourAction->plug( tdefileDialog->toolBar() );

Definition at line 721 of file tdefiledialog.h.

◆ toolbarCallback

void KFileDialog::toolbarCallback ( int )

protectedslot

Deprecated:: ,

Definition at line 1211 of file tdefiledialog.cpp.

◆ updateAutoSelectExtension()

void KFileDialog::updateAutoSelectExtension ( void )

protected

Updates the currentFilterExtension and the availability of the Automatically Select Extension Checkbox (visible if operationMode() == Saving and enabled if an extension will be associated with the currentFilter(), after this call).

You should call this after filterWidget->setCurrentItem().

Since: 3.2

Definition at line 1915 of file tdefiledialog.cpp.

◆ updateStatusLine

void KFileDialog::updateStatusLine	(	int	dirs,
		int	files
	)

protectedvirtualslot

Deprecated:

Definition at line 1314 of file tdefiledialog.cpp.

◆ writeConfig()

void KFileDialog::writeConfig	(	TDEConfig *	kc,
		const TQString &	group = `TQString::null`
	)

protectedvirtual

Saves the current configuration.

Definition at line 1751 of file tdefiledialog.cpp.

The documentation for this class was generated from the following files:

tdeio/tdefile

Public Types

Signals

Public Member Functions

Static Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ OperationMode

Constructor & Destructor Documentation

◆ KFileDialog() [1/2]

◆ KFileDialog() [2/2]

◆ ~KFileDialog()

Member Function Documentation

◆ actionCollection()

◆ baseURL()

◆ cancelButton()

◆ clearFilter()

◆ currentFilter()

◆ currentFilterExtension()

◆ currentFilterMimeType()

◆ currentMimeFilter()

◆ dirCompletion

◆ fileHighlighted

◆ fileSelected

◆ filterChanged

◆ getCompleteURL()

◆ getExistingDirectory()

◆ getExistingURL()

◆ getImageOpenURL()

◆ getOpenFileName()

◆ getOpenFileNames()

◆ getOpenFileNameWId()

◆ getOpenURL()

◆ getOpenURLs()

◆ getSaveFileName()

◆ getSaveFileNameWId()

◆ getSaveURL()

◆ getStartURL()

◆ init()

◆ initGUI()

◆ keepsLocation()

◆ keyPressEvent()

◆ mode()

◆ multiSelectionChanged()

◆ okButton()

◆ operationMode()

◆ pathComboChanged

◆ pathComboIndex()

◆ readConfig()

◆ readRecentFiles()

◆ saveRecentFiles()

◆ selectedFile()

◆ selectedFiles()

◆ selectedURL()

◆ selectedURLs()

◆ selectionChanged

◆ setFilter()

◆ setFilterMimeType()

◆ setKeepLocation()

◆ setLocationLabel()

◆ setMimeFilter()

◆ setMode() [1/2]

◆ setMode() [2/2]

◆ setOperationMode()

◆ setPreviewWidget() [1/2]

◆ setPreviewWidget() [2/2]

◆ setSelection()

◆ setURL()

◆ speedBar()

◆ toggleBookmarks

◆ toggleSpeedbar

◆ tokenize()

◆ toolBar()

◆ toolbarCallback

◆ updateAutoSelectExtension()

◆ updateStatusLine
