KLineEdit Class Reference

#include <klineedit.h>

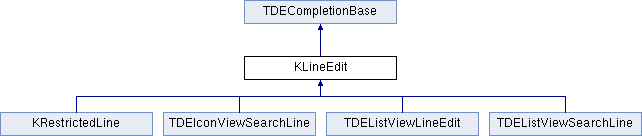

Inheritance diagram for KLineEdit:

Public Slots
virtual void	setReadOnly (bool)
void	rotateText (TDECompletionBase::KeyBindingType type)
virtual void	setCompletedText (const TQString &)
void	setCompletedItems (const TQStringList &items)
void	setCompletedItems (const TQStringList &items, bool autoSuggest)
virtual void	clear ()
void	setSqueezedText (const TQString &text)
virtual void	setText (const TQString &)

Signals
void	completionBoxActivated (const TQString &)
void	returnPressed (const TQString &)
void	completion (const TQString &)
void	substringCompletion (const TQString &)
void	textRotation (TDECompletionBase::KeyBindingType)
void	completionModeChanged (TDEGlobalSettings::Completion)
void	aboutToShowContextMenu (TQPopupMenu *p)

Public Member Functions
	KLineEdit (const TQString &string, TQWidget *parent, const char *name=0)
	KLineEdit (TQWidget *parent=0, const char *name=0)
virtual	~KLineEdit ()
void	setURL (const KURL &url)
void	cursorAtEnd ()
virtual void	setCompletionMode (TDEGlobalSettings::Completion mode)
virtual void	setContextMenuEnabled (bool showMenu)
bool	isContextMenuEnabled () const
void	setURLDropsEnabled (bool enable)
bool	isURLDropsEnabled () const
void	setTrapReturnKey (bool trap)
bool	trapReturnKey () const
virtual bool	eventFilter (TQObject *, TQEvent *)
TDECompletionBox *	completionBox (bool create=true)
virtual void	setCompletionObject (TDECompletion *, bool hsig=true)
virtual void	copy () const
void	setEnableSqueezedText (bool enable)
bool	isSqueezedTextEnabled () const
TQString	originalText () const
void	setCompletionBox (TDECompletionBox *box)
void	setClickMessage (const TQString &msg)
TQString	clickMessage () const
Public Member Functions inherited from TDECompletionBase
TDECompletion *	completionObject (bool hsig=true)
virtual void	setHandleSignals (bool handle)
bool	isCompletionObjectAutoDeleted () const
void	setAutoDeleteCompletionObject (bool autoDelete)
void	setEnableSignals (bool enable)
bool	handleSignals () const
bool	emitSignals () const
TDEGlobalSettings::Completion	completionMode () const
bool	setKeyBinding (KeyBindingType item, const TDEShortcut &key)
const TDEShortcut &	getKeyBinding (KeyBindingType item) const
void	useGlobalKeyBindings ()
virtual void	setCompletedText (const TQString &text)=0
virtual void	setCompletedItems (const TQStringList &items)=0
TDECompletion *	compObj () const

Protected Slots
virtual void	makeCompletion (const TQString &)
void	slotAboutToShow ()
void	slotCancelled ()
void	userCancelled (const TQString &cancelText)

Protected Member Functions
virtual void	resizeEvent (TQResizeEvent *)
virtual void	keyPressEvent (TQKeyEvent *)
virtual void	mousePressEvent (TQMouseEvent *)
virtual void	mouseDoubleClickEvent (TQMouseEvent *)
virtual void	mouseReleaseEvent (TQMouseEvent *)
virtual void	contextMenuEvent (TQContextMenuEvent *)
virtual TQPopupMenu *	createPopupMenu ()
virtual void	drawContents (TQPainter *p)
virtual void	dropEvent (TQDropEvent *)
virtual void	setCompletedText (const TQString &, bool)
void	setUserSelection (bool userSelection)
virtual void	create (WId=0, bool initializeWindow=true, bool destroyOldWindow=true)
virtual void	focusInEvent (TQFocusEvent *)
virtual void	focusOutEvent (TQFocusEvent *)
bool	autoSuggest () const
virtual void	virtual_hook (int id, void *data)
Protected Member Functions inherited from TDECompletionBase
KeyBindingMap	getKeyBindings () const
void	setDelegate (TDECompletionBase *delegate)
TDECompletionBase *	delegate () const

Friends
class	KComboBox

Additional Inherited Members
Public Types inherited from TDECompletionBase
enum	KeyBindingType
Public Attributes inherited from TDECompletionBase
	TextCompletion
	PrevCompletionMatch
	NextCompletionMatch
	SubstringCompletion

Detailed Description

An enhanced TQLineEdit widget for inputting text.

Detail
This widget inherits from TQLineEdit and implements the following additional functionalities: a completion object that provides both automatic and manual text completion as well as multiple match iteration features, configurable key-bindings to activate these features and a popup-menu item that can be used to allow the user to set text completion modes on the fly based on their preference.

To support these new features KLineEdit also emits a few more additional signals. These are: completion( const TQString& ), textRotation( KeyBindingType ), and returnPressed( const TQString& ). The completion signal can be connected to a slot that will assist the user in filling out the remaining text. The text rotation signal is intended to be used to iterate through the list of all possible matches whenever there is more than one match for the entered text. The returnPressed( const TQString& ) signals are the same as QLineEdit's except it provides the current text in the widget as its argument whenever appropriate.

This widget by default creates a completion object when you invoke the completionObject( bool ) member function for the first time or use setCompletionObject( TDECompletion*, bool ) to assign your own completion object. Additionally, to make this widget more functional, KLineEdit will by default handle the text rotation and completion events internally when a completion object is created through either one of the methods mentioned above. If you do not need this functionality, simply use setHandleSignals( bool ) or set the boolean parameter in the above functions to false.

The default key-bindings for completion and rotation is determined from the global settings in TDEStdAccel. These values, however, can be overridden locally by invoking setKeyBinding(). You can easily revert these settings back to the default by simply calling useGlobalSettings(). An alternate method would be to default individual key-bindings by using setKeyBinding() with the default second argument.

If EchoMode for this widget is set to something other than TQLineEdit::Normal, the completion mode will always be defaulted to TDEGlobalSettings::CompletionNone. This is done purposefully to guard against protected entries such as passwords being cached in TDECompletion's list. Hence, if the EchoMode is not TQLineEdit::Normal, the completion mode is automatically disabled.

A read-only KLineEdit will have the same background color as a disabled KLineEdit, but its foreground color will be the one used for the read-write mode. This differs from QLineEdit's implementation and is done to give visual distinction between the three different modes: disabled, read-only, and read-write.

Usage
To enable the basic completion feature :

KLineEdit *edit = new KLineEdit( this, "mywidget" );
TDECompletion *comp = edit->completionObject();
// Connect to the return pressed signal - optional
connect(edit,TQ_SIGNAL(returnPressed(const TQString&)),comp,TQ_SLOT(addItem(const TQString&)));

To use a customized completion objects or your own completion object :

KLineEdit *edit = new KLineEdit( this,"mywidget" );
KURLCompletion *comp = new KURLCompletion();
edit->setCompletionObject( comp );
// Connect to the return pressed signal - optional
connect(edit,TQ_SIGNAL(returnPressed(const TQString&)),comp,TQ_SLOT(addItem(const TQString&)));

Note if you specify your own completion object you have to either delete it when you don't need it anymore, or you can tell KLineEdit to delete it for you:

edit->setAutoDeleteCompletionObject( true );

Miscellaneous function calls :

// Tell the widget to not handle completion and iteration automatically.
edit->setHandleSignals( false );

// Set your own key-bindings for a text completion mode.
edit->setKeyBinding( TDECompletionBase::TextCompletion, TQt::End );

// Hide the context (popup) menu
edit->setContextMenuEnabled( false );

// Temporarily disable signal (both completion & iteration) emitions
edit->disableSignals();

// Default the key-bindings back to the default system settings.
edit->useGlobalKeyBindings();

Author

Dawit Alemayehu adawi.nosp@m.t@kd.nosp@m.e.org

Definition at line 145 of file klineedit.h.

Constructor & Destructor Documentation

KLineEdit() [1/2]

KLineEdit::KLineEdit	(	const TQString &	string,
		TQWidget *	parent,
		const char *	name = 0
	)

Constructs a KLineEdit object with a default text, a parent, and a name.

Parameters

string	Text to be shown in the edit widget.
parent	The parent object of this widget.
name	the name of this widget

Definition at line 106 of file klineedit.cpp.

KLineEdit() [2/2]

KLineEdit::KLineEdit	(	TQWidget *	parent = 0,
		const char *	name = 0
	)

Constructs a KLineEdit object with a parent and a name.

Parameters

parent	The parent object of this widget.
name	The name of this widget.

Definition at line 112 of file klineedit.cpp.

~KLineEdit()

KLineEdit::~KLineEdit ( )

virtual

Destructor.

Definition at line 118 of file klineedit.cpp.

Member Function Documentation

aboutToShowContextMenu

void KLineEdit::aboutToShowContextMenu ( TQPopupMenu *  p )

signal

Emitted before the context menu is displayed.

The signal allows you to add your own entries into the the context menu that is created on demand.

NOTE: Do not store the pointer to the QPopupMenu provided through since it is created and deleted on demand.

Parameters

p	the context menu about to be displayed

autoSuggest()

bool KLineEdit::autoSuggest ( ) const

protected

Whether in current state text should be auto-suggested.

Since

3.4

Definition at line 1362 of file klineedit.cpp.

clear

void KLineEdit::clear ( )

virtualslot

Reimplemented to workaround a buggy TQLineEdit::clear() (changing the clipboard to the text we just had in the lineedit)

Definition at line 1320 of file klineedit.cpp.

clickMessage()

TQString KLineEdit::clickMessage

(

)

const

Returns

the message set with setClickMessage

Since

3.5.4

Definition at line 1373 of file klineedit.cpp.

completion

void KLineEdit::completion ( const TQString &  )

signal

Emitted when the completion key is pressed.

Please note that this signal is not emitted if the completion mode is set to CompletionNone or EchoMode is normal.

completionBox()

TDECompletionBox * KLineEdit::completionBox

(

bool

create = true

)

Returns

the completion-box, that is used in completion mode TDEGlobalSettings::CompletionPopup. This method will create a completion-box if none is there, yet.

Parameters

create

Set this to false if you don't want the box to be created i.e. to test if it is available.

Definition at line 1260 of file klineedit.cpp.

completionBoxActivated

void KLineEdit::completionBoxActivated ( const TQString &  )

signal

Emitted whenever the completion box is activated.

Since

3.1

completionModeChanged

void KLineEdit::completionModeChanged ( TDEGlobalSettings::Completion  )

signal

Emitted when the user changed the completion mode by using the popupmenu.

contextMenuEvent()

void KLineEdit::contextMenuEvent ( TQContextMenuEvent *  e )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::contextMenuEvent().

Definition at line 856 of file klineedit.cpp.

copy()

void KLineEdit::copy ( ) const

virtual

Reimplemented for internal reasons, the API is not affected.

Definition at line 397 of file klineedit.cpp.

create()

void KLineEdit::create ( WId  id = 0, bool  initializeWindow = true, bool  destroyOldWindow = true  )

protectedvirtual

Reimplemented for internal reasons, the API is not affected.

Definition at line 1285 of file klineedit.cpp.

createPopupMenu()

TQPopupMenu * KLineEdit::createPopupMenu ( )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::createPopupMenu().

Reimplemented in TDEListViewSearchLine.

Definition at line 862 of file klineedit.cpp.

cursorAtEnd()

void KLineEdit::cursorAtEnd ( )

inline

Puts the text cursor at the end of the string.

This method is deprecated. Use TQLineEdit::end() instead.

Deprecated:

TQLineEdit::end()

Definition at line 197 of file klineedit.h.

drawContents()

void KLineEdit::drawContents ( TQPainter *  p )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQFrame::drawContents().

Definition at line 967 of file klineedit.cpp.

dropEvent()

void KLineEdit::dropEvent ( TQDropEvent *  e )

protectedvirtual

Re-implemented to handle URI drops.

See TQLineEdit::dropEvent().

Definition at line 983 of file klineedit.cpp.

eventFilter()

bool KLineEdit::eventFilter ( TQObject *  o, TQEvent *  ev  )

virtual

Re-implemented for internal reasons.

API not affected.

Definition at line 1007 of file klineedit.cpp.

focusInEvent()

void KLineEdit::focusInEvent ( TQFocusEvent *  ev )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::focusInEvent().

Definition at line 1339 of file klineedit.cpp.

focusOutEvent()

void KLineEdit::focusOutEvent ( TQFocusEvent *  ev )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::focusOutEvent().

Reimplemented in TDEListViewLineEdit.

Definition at line 1353 of file klineedit.cpp.

isContextMenuEnabled()

bool KLineEdit::isContextMenuEnabled ( ) const

inline

Returns true when the context menu is enabled.

Definition at line 228 of file klineedit.h.

isSqueezedTextEnabled()

bool KLineEdit::isSqueezedTextEnabled

(

)

const

Returns true if text squeezing is enabled.

This is only valid when the widget is in read-only mode.

Since

3.2

Definition at line 305 of file klineedit.cpp.

isURLDropsEnabled()

bool KLineEdit::isURLDropsEnabled

(

)

const

Returns true when decoded URL drops are enabled.

Definition at line 1063 of file klineedit.cpp.

keyPressEvent()

void KLineEdit::keyPressEvent ( TQKeyEvent *  e )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::keyPressEvent().

Reimplemented in TDEListViewLineEdit, and KRestrictedLine.

Definition at line 440 of file klineedit.cpp.

makeCompletion

void KLineEdit::makeCompletion ( const TQString &  text )

protectedvirtualslot

Completes the remaining text with a matching one from a given list.

Definition at line 226 of file klineedit.cpp.

mouseDoubleClickEvent()

void KLineEdit::mouseDoubleClickEvent ( TQMouseEvent *  e )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQWidget::mouseDoubleClickEvent().

Definition at line 818 of file klineedit.cpp.

mousePressEvent()

void KLineEdit::mousePressEvent ( TQMouseEvent *  e )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::mousePressEvent().

Definition at line 829 of file klineedit.cpp.

mouseReleaseEvent()

void KLineEdit::mouseReleaseEvent ( TQMouseEvent *  e )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::mouseReleaseEvent().

Definition at line 840 of file klineedit.cpp.

originalText()

TQString KLineEdit::originalText

(

)

const

Returns the original text if text squeezing is enabled.

If the widget is not in "read-only" mode, this function returns the same thing as TQLineEdit::text().

See also

QLineEdit

Since

3.2

Definition at line 1331 of file klineedit.cpp.

resizeEvent()

void KLineEdit::resizeEvent ( TQResizeEvent *  ev )

protectedvirtual

Re-implemented for internal reasons.

API not affected.

See TQLineEdit::resizeEvent().

Definition at line 432 of file klineedit.cpp.

returnPressed

void KLineEdit::returnPressed ( const TQString &  )

signal

Emitted when the user presses the return key.

The argument is the current text. Note that this signal is not emitted if the widget's EchoMode is set to TQLineEdit::EchoMode.

rotateText

void KLineEdit::rotateText ( TDECompletionBase::KeyBindingType  type )

slot

Iterates through all possible matches of the completed text or the history list.

This function simply iterates over all possible matches in case multimple matches are found as a result of a text completion request. It will have no effect if only a single match is found.

Parameters

type	The key-binding invoked.

Definition at line 205 of file klineedit.cpp.

setClickMessage()

void KLineEdit::setClickMessage

(

const TQString &

msg

)

This makes the line edit display a grayed-out hinting text as long as the user didn't enter any text.

It is often used as indication about the purpose of the line edit.

Since

3.5.4

Definition at line 1367 of file klineedit.cpp.

setCompletedItems [1/2]

void KLineEdit::setCompletedItems ( const TQStringList &  items )

slot

Sets items into the completion-box if completionMode() is CompletionPopup.

The popup will be shown immediately.

Parameters

items

list of completion matches to be shown in the completion box.

Definition at line 1193 of file klineedit.cpp.

setCompletedItems [2/2]

void KLineEdit::setCompletedItems ( const TQStringList &  items, bool  autoSuggest  )

slot

Same as the above function except it allows you to temporarily turn off text completion in CompletionPopupAuto mode.

TODO: Merge with above function in KDE 4. TODO: Does that make this or the above

Deprecated:

?

Parameters

items	list of completion matches to be shown in the completion box.
autoSuggest	true if you want automatic text completion (suggestion) enabled.

Definition at line 1198 of file klineedit.cpp.

setCompletedText

void KLineEdit::setCompletedText ( const TQString &  text )

virtualslot

See TDECompletionBase::setCompletedText.

Definition at line 195 of file klineedit.cpp.

setCompletionBox()

void KLineEdit::setCompletionBox

(

TDECompletionBox *

box

)

Set the completion-box to be used in completion mode TDEGlobalSettings::CompletionPopup.

This will do nothing if a completion-box already exists.

Parameters

box	The TDECompletionBox to set

Since

3.4

Definition at line 1083 of file klineedit.cpp.

setCompletionMode()

void KLineEdit::setCompletionMode ( TDEGlobalSettings::Completion  mode )

virtual

Re-implemented from TDECompletionBase for internal reasons.

This function is re-implemented in order to make sure that the EchoMode is acceptable before we set the completion mode.

See TDECompletionBase::setCompletionMode

Reimplemented from TDECompletionBase.

Definition at line 150 of file klineedit.cpp.

setCompletionObject()

void KLineEdit::setCompletionObject ( TDECompletion *  comp, bool  hsig = true  )

virtual

Reimplemented for internal reasons, the API is not affected.

Reimplemented from TDECompletionBase.

Definition at line 1270 of file klineedit.cpp.

setContextMenuEnabled()

virtual void KLineEdit::setContextMenuEnabled ( bool  showMenu )

inlinevirtual

Enables/disables the popup (context) menu.

Note that when this function is invoked with its argument set to true, then both the context menu and the completion menu item are enabled. If you do not want to the completion item to be visible simply invoke hideModechanger() right after calling this method. Also by default, the context menu is automatically created if this widget is editable. Thus you need to call this function with the argument set to false if you do not want this behavior.

Parameters

showMenu

If true, show the context menu.

Definition at line 223 of file klineedit.h.

setEnableSqueezedText()

void KLineEdit::setEnableSqueezedText

(

bool

enable

)

Enable text squeezing whenever the supplied text is too long.

Only works for "read-only" mode.

Note that once text squeezing is enabled, TQLineEdit::text() and TQLineEdit::displayText() return the squeezed text. If you want the original text, use originalText.

See also

QLineEdit

Since

3.2

Definition at line 300 of file klineedit.cpp.

setReadOnly

void KLineEdit::setReadOnly ( bool  readOnly )

virtualslot

Re-implemented for internal reasons.

API not changed.

Definition at line 265 of file klineedit.cpp.

setSqueezedText

void KLineEdit::setSqueezedText ( const TQString &  text )

slot

Squeezes text into the line edit.

This can only be used with read-only line-edits.

Since

3.1

Definition at line 294 of file klineedit.cpp.

setText

void KLineEdit::setText ( const TQString &  text )

virtualslot

Re-implemented to enable text squeezing.

API is not affected.

Definition at line 310 of file klineedit.cpp.

setTrapReturnKey()

void KLineEdit::setTrapReturnKey

(

bool

trap

)

By default, KLineEdit recognizes Key_Return and Key_Enter and emits the returnPressed() signals, but it also lets the event pass, for example causing a dialog's default-button to be called.

Call this method with trap = true to make KLineEdit stop these events. The signals will still be emitted of course.

See also

trapReturnKey()

Definition at line 1068 of file klineedit.cpp.

setURL()

void KLineEdit::setURL

(

const KURL &

url

)

Sets url into the lineedit.

It uses KURL::prettyURL() so that the url is properly decoded for displaying.

Definition at line 1078 of file klineedit.cpp.

setURLDropsEnabled()

void KLineEdit::setURLDropsEnabled

(

bool

enable

)

Enables/Disables handling of URL drops.

If enabled and the user drops an URL, the decoded URL will be inserted. Otherwise the default behavior of TQLineEdit is used, which inserts the encoded URL.

Parameters

enable

If true, insert decoded URLs

Definition at line 1058 of file klineedit.cpp.

setUserSelection()

void KLineEdit::setUserSelection ( bool  userSelection )

protected

Sets the widget in userSelection mode or in automatic completion selection mode.

This changes the colors of selections.

Definition at line 1291 of file klineedit.cpp.

slotAboutToShow

void KLineEdit::slotAboutToShow ( )

inlineprotectedslot

Deprecated:

.

Will be removed in the next major release!

Definition at line 484 of file klineedit.h.

slotCancelled

void KLineEdit::slotCancelled ( )

inlineprotectedslot

Deprecated:

.

Will be removed in the next major release!

Definition at line 489 of file klineedit.h.

substringCompletion

void KLineEdit::substringCompletion ( const TQString &  )

signal

Emitted when the shortcut for substring completion is pressed.

textRotation

void KLineEdit::textRotation ( TDECompletionBase::KeyBindingType  )

signal

Emitted when the text rotation key-bindings are pressed.

The argument indicates which key-binding was pressed. In KLineEdit's case this can be either one of two values: PrevCompletionMatch or NextCompletionMatch. See setKeyBinding for details.

Note that this signal is not emitted if the completion mode is set to TDEGlobalSettings::CompletionNone or echoMode() is not normal.

trapReturnKey()

bool KLineEdit::trapReturnKey

(

)

const

Returns

true if keyevents of Key_Return or Key_Enter will be stopped or if they will be propagated.

See also

setTrapReturnKey ()

Definition at line 1073 of file klineedit.cpp.

userCancelled

void KLineEdit::userCancelled ( const TQString &  cancelText )

protectedslot

Resets the current displayed text.

Call this function to revert a text completion if the user cancels the request. Mostly applies to popup completions.

Definition at line 1100 of file klineedit.cpp.

---

The documentation for this class was generated from the following files:

• klineedit.h
• klineedit.cpp
