KPrefsWid Class Reference

#include <kprefsdialog.h>

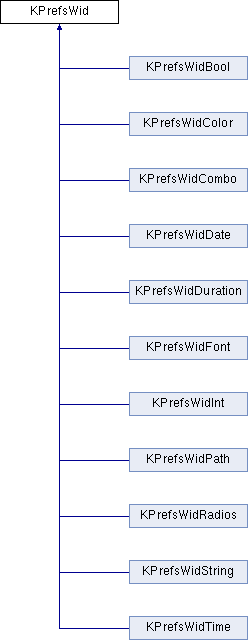

Inheritance diagram for KPrefsWid:

Signals
void	changed ()

Public Member Functions
virtual void	readConfig ()=0
virtual void	writeConfig ()=0
virtual TQValueList< TQWidget * >	widgets () const

Detailed Description

Base class for GUI control elements used by KPrefsDialog.

Author

Cornelius Schumacher

See also

KPrefsDialog

This class provides the interface for the GUI control elements used by KPrefsDialog. The control element consists of a set of widgets for handling a certain type of configuration information.

Definition at line 58 of file kprefsdialog.h.

Member Function Documentation

changed

void KPrefsWid::changed ( )

signal

Emitted when widget value has changed.

readConfig()

virtual void KPrefsWid::readConfig ( )

pure virtual

This function is called to read value of the setting from the stored configuration and display it in the widget.

Implemented in KPrefsWidPath, KPrefsWidString, KPrefsWidCombo, KPrefsWidRadios, KPrefsWidFont, KPrefsWidColor, KPrefsWidDate, KPrefsWidDuration, KPrefsWidTime, KPrefsWidInt, and KPrefsWidBool.

widgets()

TQValueList< TQWidget * > KPrefsWid::widgets ( ) const

virtual

Return a list of widgets used by this control element.

Reimplemented in KPrefsWidPath, KPrefsWidString, KPrefsWidCombo, KPrefsWidRadios, KPrefsWidInt, and KPrefsWidBool.

Definition at line 96 of file kprefsdialog.cpp.

writeConfig()

virtual void KPrefsWid::writeConfig ( )

pure virtual

This function is called to write the current setting of the widget to the stored configuration.

Implemented in KPrefsWidPath, KPrefsWidString, KPrefsWidCombo, KPrefsWidRadios, KPrefsWidFont, KPrefsWidColor, KPrefsWidDate, KPrefsWidDuration, KPrefsWidTime, KPrefsWidInt, and KPrefsWidBool.

---

The documentation for this class was generated from the following files:

• kprefsdialog.h
• kprefsdialog.cpp
