#include <kcolordialog.h>

Inheritance diagram for KColorDialog:

Public Slots
void	setColor (const TQColor &col)

Public Slots inherited from KDialogBase
void	enableButton (ButtonCode id, bool state)

void	enableButtonOK (bool state)

void	enableButtonApply (bool state)

void	enableButtonCancel (bool state)

void	enableLinkedHelp (bool state)

void	delayedDestruct ()

void	setHelpLinkText (const TQString &text)

void	setHelp (const TQString &anchor, const TQString &appname=TQString::null)

void	helpClickedSlot (const TQString &)

void	setDetails (bool showDetails)

void	setDetailsWidget (TQWidget *detailsWidget)

void	updateBackground ()

void	cancel ()

Public Slots inherited from KDialog
virtual void	polish ()

virtual void	setCaption (const TQString &caption)

virtual void	setPlainCaption (const TQString &caption)

Signals
void	colorSelected (const TQColor &col)

Signals inherited from KDialogBase
void	helpClicked ()

void	defaultClicked ()

void	user3Clicked ()

void	user2Clicked ()

void	user1Clicked ()

void	applyClicked ()

void	tryClicked ()

void	okClicked ()

void	yesClicked ()

void	noClicked ()

void	cancelClicked ()

void	closeClicked ()

void	apply ()

void	backgroundChanged ()

void	hidden ()

void	finished ()

void	aboutToShowDetails ()

void	aboutToShowPage (TQWidget *page)

Signals inherited from KDialog
void	layoutHintChanged ()

Public Member Functions
	KColorDialog (TQWidget parent=0L, const char name=0L, bool modal=false)

	~KColorDialog ()

TQColor	color () const

void	setDefaultColor (const TQColor &defaultCol)

TQColor	defaultColor () const

Public Member Functions inherited from KDialogBase
	KDialogBase (TQWidget parent=0, const char name=0, bool modal=true, const TQString &caption=TQString::null, int buttonMask=Ok\|Apply\|Cancel, ButtonCode defaultButton=Ok, bool separator=false, const KGuiItem &user1=KGuiItem(), const KGuiItem &user2=KGuiItem(), const KGuiItem &user3=KGuiItem())

	KDialogBase (int dialogFace, const TQString &caption, int buttonMask, ButtonCode defaultButton, TQWidget parent=0, const char name=0, bool modal=true, bool separator=false, const KGuiItem &user1=KGuiItem(), const KGuiItem &user2=KGuiItem(), const KGuiItem &user3=KGuiItem())

	KDialogBase (KDialogBase::DialogType dialogFace, WFlags f, TQWidget parent=0, const char name=0, bool modal=true, const TQString &caption=TQString::null, int buttonMask=Ok\|Apply\|Cancel, ButtonCode defaultButton=Ok, bool separator=false, const KGuiItem &user1=KGuiItem(), const KGuiItem &user2=KGuiItem(), const KGuiItem &user3=KGuiItem())

	KDialogBase (const TQString &caption, int buttonMask=Yes\|No\|Cancel, ButtonCode defaultButton=Yes, ButtonCode escapeButton=Cancel, TQWidget parent=0, const char name=0, bool modal=true, bool separator=false, const KGuiItem &yes=KStdGuiItem::yes(), const KGuiItem &no=KStdGuiItem::no(), const KGuiItem &cancel=KStdGuiItem::cancel())

	~KDialogBase ()

void	setButtonBoxOrientation (int orientation)

void	setEscapeButton (ButtonCode id)

virtual void	adjustSize ()

virtual TQSize	sizeHint () const

virtual TQSize	minimumSizeHint () const

TQFrame *	plainPage ()

TQFrame *	addPage (const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQFrame *	addPage (const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQVBox *	addVBoxPage (const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQVBox *	addVBoxPage (const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQHBox *	addHBoxPage (const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQHBox *	addHBoxPage (const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQGrid *	addGridPage (int n, Orientation dir, const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQGrid *	addGridPage (int n, Orientation dir, const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

void	setFolderIcon (const TQStringList &path, const TQPixmap &pixmap)

TQFrame *	makeMainWidget ()

TQVBox *	makeVBoxMainWidget ()

TQHBox *	makeHBoxMainWidget ()

TQGrid *	makeGridMainWidget (int n, Orientation dir)

void	enableButtonSeparator (bool state)

void	showButton (ButtonCode id, bool state)

void	showButtonOK (bool state)

void	showButtonApply (bool state)

void	showButtonCancel (bool state)

bool	showPage (int index)

int	activePageIndex () const

int	pageIndex (TQWidget *widget) const

void	setMainWidget (TQWidget *widget)

TQWidget *	mainWidget ()

void	disableResize ()

void	setInitialSize (const TQSize &s, bool noResize=false)

void	incInitialSize (const TQSize &s, bool noResize=false)

TQSize	configDialogSize (const TQString &groupName) const

TQSize	configDialogSize (TDEConfig &config, const TQString &groupName) const

void	saveDialogSize (const TQString &groupName, bool global=false)

void	saveDialogSize (TDEConfig &config, const TQString &groupName, bool global=false) const

void	setButtonOK (const KGuiItem &item=KStdGuiItem::ok())

void	setButtonOKText (const TQString &text=TQString::null, const TQString &tooltip=TQString::null, const TQString &quickhelp=TQString::null) TDE_DEPRECATED

void	setButtonApply (const KGuiItem &item=KStdGuiItem::apply())

void	setButtonApplyText (const TQString &text=TQString::null, const TQString &tooltip=TQString::null, const TQString &quickhelp=TQString::null) TDE_DEPRECATED

void	setButtonCancel (const KGuiItem &item=KStdGuiItem::cancel())

void	setButtonCancelText (const TQString &text=TQString::null, const TQString &tooltip=TQString::null, const TQString &quickhelp=TQString::null) TDE_DEPRECATED

void	setButtonText (ButtonCode id, const TQString &text)

void	setButtonTip (ButtonCode id, const TQString &text)

void	setButtonWhatsThis (ButtonCode id, const TQString &text)

void	setButtonGuiItem (ButtonCode id, const KGuiItem &item)

void	setTreeListAutoResize (bool state)

void	setShowIconsInTreeList (bool state)

void	setRootIsDecorated (bool state)

void	unfoldTreeList (bool persist=false)

void	addWidgetBelowList (TQWidget *widget)

void	addButtonBelowList (const TQString &text, TQObject recv, const char slot)

void	addButtonBelowList (const KGuiItem &guiitem, TQObject recv, const char slot)

void	setIconListAllVisible (bool state)

void	showTile (bool state)

void	getBorderWidths (int &ulx, int &uly, int &lrx, int &lry) const TDE_DEPRECATED

TQRect	getContentsRect () const TDE_DEPRECATED

TQSize	calculateSize (int w, int h) const

TQString	helpLinkText () const

TQPushButton *	actionButton (ButtonCode id)

Public Member Functions inherited from KDialog
	KDialog (TQWidget parent=0, const char name=0, bool modal=false, WFlags f=0)

Static Public Member Functions
static int	getColor (TQColor &theColor, TQWidget *parent=0L)

static int	getColor (TQColor &theColor, const TQColor &defaultColor, TQWidget *parent=0L)

static TQColor	grabColor (const TQPoint &p)

Static Public Member Functions inherited from KDialogBase
static bool	haveBackgroundTile ()

static const TQPixmap *	backgroundTile ()

static const TQPixmap *	getBackgroundTile () TDE_DEPRECATED

static void	setBackgroundTile (const TQPixmap *pix)

Static Public Member Functions inherited from KDialog
static int	marginHint ()

static int	spacingHint ()

static void	resizeLayout (TQWidget *widget, int margin, int spacing)

static void	resizeLayout (TQLayoutItem *lay, int margin, int spacing)

static void	centerOnScreen (TQWidget *widget, int screen=-1)

static bool	avoidArea (TQWidget *widget, const TQRect &area, int screen=-1)

Protected Member Functions
virtual void	mouseReleaseEvent (TQMouseEvent *)

virtual void	keyPressEvent (TQKeyEvent *)

virtual bool	eventFilter (TQObject obj, TQEvent ev)

virtual void	virtual_hook (int id, void *data)

Protected Member Functions inherited from KDialogBase
virtual void	keyPressEvent (TQKeyEvent *e)

virtual void	hideEvent (TQHideEvent *)

virtual void	closeEvent (TQCloseEvent *e)

virtual void	virtual_hook (int id, void *data)

virtual void	keyPressEvent (TQKeyEvent *)

virtual void	virtual_hook (int id, void *data)

Additional Inherited Members
Public Types inherited from KDialogBase
enum	ButtonCode { Help = 0x00000001 , Default = 0x00000002 , Ok = 0x00000004 , Apply = 0x00000008 , Try = 0x00000010 , Cancel = 0x00000020 , Close = 0x00000040 , User1 = 0x00000080 , User2 = 0x00000100 , User3 = 0x00000200 , No = 0x00000080 , Yes = 0x00000100 , Details = 0x00000400 , Filler = 0x40000000 , Stretch = 0x80000000 , NoDefault }

enum	ActionButtonStyle { ActionStyle0 =0 , ActionStyle1 , ActionStyle2 , ActionStyle3 , ActionStyle4 , ActionStyleMAX }

enum	DialogType { TreeList = KJanusWidget::TreeList , Tabbed = KJanusWidget::Tabbed , Plain = KJanusWidget::Plain , Swallow = KJanusWidget::Swallow , IconList = KJanusWidget::IconList }

Protected Slots inherited from KDialogBase
virtual void	slotHelp ()

virtual void	slotDefault ()

virtual void	slotDetails ()

virtual void	slotUser3 ()

virtual void	slotUser2 ()

virtual void	slotUser1 ()

virtual void	slotOk ()

virtual void	slotApply ()

virtual void	slotTry ()

virtual void	slotYes ()

virtual void	slotNo ()

virtual void	slotCancel ()

virtual void	slotClose ()

virtual void	applyPressed ()

void	updateGeometry ()

void	slotDelayedDestruct ()

Detailed Description

A color selection dialog.

Features:

Color selection from a wide range of palettes.
Color selection from a palette of H vs S and V selectors.
Direct input of HSV or RGB values.
Saving of custom colors

In most cases, you will want to use the static method KColorDialog::getColor(). This pops up the dialog (with an initial selection provided by you), lets the user choose a color, and returns.

Example:

TQColor myColor;
int result = KColorDialog::getColor( myColor );
    if ( result == KColorDialog::Accepted )
       ...

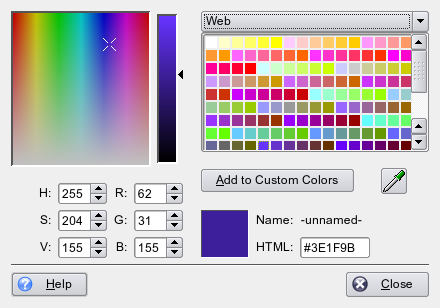

KDE Color Dialog

The color dialog is really a collection of several widgets which can you can also use separately: the quadratic plane in the top left of the dialog is a KXYSelector. Right next to it is a KHSSelector for choosing hue/saturation.

On the right side of the dialog you see a KPaletteTable showing up to 40 colors with a combo box which offers several predefined palettes or a palette configured by the user. The small field showing the currently selected color is a KColorPatch.

Definition at line 377 of file kcolordialog.h.

Constructor & Destructor Documentation

◆ KColorDialog()

KColorDialog::KColorDialog	(	TQWidget *	parent = `0L`,
		const char *	name = `0L`,
		bool	modal = `false`
	)

Constructs a color selection dialog.

Definition at line 939 of file kcolordialog.cpp.

◆ ~KColorDialog()

KColorDialog::~KColorDialog ( )

Destroys the color selection dialog.

Definition at line 1178 of file kcolordialog.cpp.

Member Function Documentation

◆ color()

TQColor KColorDialog::color ( ) const

Returns the currently selected color.

Definition at line 1281 of file kcolordialog.cpp.

◆ colorSelected

void KColorDialog::colorSelected ( const TQColor & col )

signal

Emitted when a color is selected.

Connect to this to monitor the color as it as selected if you are not running modal.

◆ defaultColor()

TQColor KColorDialog::defaultColor ( ) const

Returns: the value passed to setDefaultColor

Definition at line 1237 of file kcolordialog.cpp.

◆ eventFilter()

bool KColorDialog::eventFilter	(	TQObject *	obj,
		TQEvent *	ev
	)

protectedvirtual

Definition at line 1188 of file kcolordialog.cpp.

◆ getColor() [1/2]

int KColorDialog::getColor	(	TQColor &	theColor,
		const TQColor &	defaultColor,
		TQWidget *	parent = `0L`
	)

static

Creates a modal color dialog, lets the user choose a color, and returns when the dialog is closed.

The selected color is returned in the argument theColor.

This version takes a defaultColor argument, which sets the color selected by the "default color" checkbox. When this checkbox is checked, the invalid color (TQColor()) is returned into theColor.

Returns: TQDialog::result().

Definition at line 1316 of file kcolordialog.cpp.

◆ getColor() [2/2]

int KColorDialog::getColor	(	TQColor &	theColor,
		TQWidget *	parent = `0L`
	)

static

Creates a modal color dialog, let the user choose a color, and returns when the dialog is closed.

The selected color is returned in the argument theColor.

Returns: TQDialog::result().

Definition at line 1298 of file kcolordialog.cpp.

◆ grabColor()

TQColor KColorDialog::grabColor ( const TQPoint & p )

static

Gets the color from the pixel at point p on the screen.

Definition at line 1533 of file kcolordialog.cpp.

◆ keyPressEvent()

void KColorDialog::keyPressEvent ( TQKeyEvent * e )

protectedvirtual

Maps some keys to the actions buttons.

F1 is mapped to the Help button if present and Escape to the Cancel or Close if present. The button action event is animated.

Reimplemented from KDialogBase.

Definition at line 1542 of file kcolordialog.cpp.

◆ mouseReleaseEvent()

void KColorDialog::mouseReleaseEvent ( TQMouseEvent * e )

protectedvirtual

Definition at line 1515 of file kcolordialog.cpp.

◆ setColor

void KColorDialog::setColor ( const TQColor & col )

slot

Preselects a color.

Definition at line 1290 of file kcolordialog.cpp.

◆ setDefaultColor()

void KColorDialog::setDefaultColor ( const TQColor & defaultCol )

Call this to make the dialog show a "Default Color" checkbox.

If this checkbox is selected, the dialog will return an "invalid" color (TQColor()). This can be used to mean "the default text color", for instance, the one with the KDE text color on screen, but black when printing.

Definition at line 1207 of file kcolordialog.cpp.

◆ virtual_hook()

void KColorDialog::virtual_hook	(	int	id,
		void *	data
	)

protectedvirtual

Reimplemented from KDialogBase.

Definition at line 1611 of file kcolordialog.cpp.

The documentation for this class was generated from the following files:

tdeui

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ KColorDialog()

◆ ~KColorDialog()

Member Function Documentation

◆ color()

◆ colorSelected

◆ defaultColor()

◆ eventFilter()

◆ getColor() [1/2]

◆ getColor() [2/2]

◆ grabColor()

◆ keyPressEvent()

◆ mouseReleaseEvent()

◆ setColor

◆ setDefaultColor()

◆ virtual_hook()

tdeui

tdeui
