#include <kdialogbase.h>

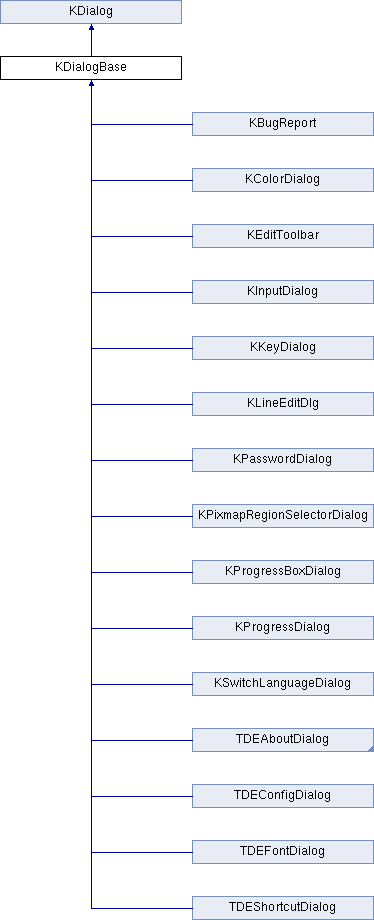

Inheritance diagram for KDialogBase:

Public Types
enum	ButtonCode { Help = 0x00000001 , Default = 0x00000002 , Ok = 0x00000004 , Apply = 0x00000008 , Try = 0x00000010 , Cancel = 0x00000020 , Close = 0x00000040 , User1 = 0x00000080 , User2 = 0x00000100 , User3 = 0x00000200 , No = 0x00000080 , Yes = 0x00000100 , Details = 0x00000400 , Filler = 0x40000000 , Stretch = 0x80000000 , NoDefault }

enum	ActionButtonStyle { ActionStyle0 =0 , ActionStyle1 , ActionStyle2 , ActionStyle3 , ActionStyle4 , ActionStyleMAX }

enum	DialogType { TreeList = KJanusWidget::TreeList , Tabbed = KJanusWidget::Tabbed , Plain = KJanusWidget::Plain , Swallow = KJanusWidget::Swallow , IconList = KJanusWidget::IconList }

Public Slots
void	enableButton (ButtonCode id, bool state)

void	enableButtonOK (bool state)

void	enableButtonApply (bool state)

void	enableButtonCancel (bool state)

void	enableLinkedHelp (bool state)

void	delayedDestruct ()

void	setHelpLinkText (const TQString &text)

void	setHelp (const TQString &anchor, const TQString &appname=TQString::null)

void	helpClickedSlot (const TQString &)

void	setDetails (bool showDetails)

void	setDetailsWidget (TQWidget *detailsWidget)

void	updateBackground ()

void	cancel ()

Public Slots inherited from KDialog
virtual void	polish ()

virtual void	setCaption (const TQString &caption)

virtual void	setPlainCaption (const TQString &caption)

Signals
void	helpClicked ()

void	defaultClicked ()

void	user3Clicked ()

void	user2Clicked ()

void	user1Clicked ()

void	applyClicked ()

void	tryClicked ()

void	okClicked ()

void	yesClicked ()

void	noClicked ()

void	cancelClicked ()

void	closeClicked ()

void	apply ()

void	backgroundChanged ()

void	hidden ()

void	finished ()

void	aboutToShowDetails ()

void	aboutToShowPage (TQWidget *page)

Signals inherited from KDialog
void	layoutHintChanged ()

Public Member Functions
	KDialogBase (TQWidget parent=0, const char name=0, bool modal=true, const TQString &caption=TQString::null, int buttonMask=Ok\|Apply\|Cancel, ButtonCode defaultButton=Ok, bool separator=false, const KGuiItem &user1=KGuiItem(), const KGuiItem &user2=KGuiItem(), const KGuiItem &user3=KGuiItem())

	KDialogBase (int dialogFace, const TQString &caption, int buttonMask, ButtonCode defaultButton, TQWidget parent=0, const char name=0, bool modal=true, bool separator=false, const KGuiItem &user1=KGuiItem(), const KGuiItem &user2=KGuiItem(), const KGuiItem &user3=KGuiItem())

	KDialogBase (KDialogBase::DialogType dialogFace, WFlags f, TQWidget parent=0, const char name=0, bool modal=true, const TQString &caption=TQString::null, int buttonMask=Ok\|Apply\|Cancel, ButtonCode defaultButton=Ok, bool separator=false, const KGuiItem &user1=KGuiItem(), const KGuiItem &user2=KGuiItem(), const KGuiItem &user3=KGuiItem())

	KDialogBase (const TQString &caption, int buttonMask=Yes\|No\|Cancel, ButtonCode defaultButton=Yes, ButtonCode escapeButton=Cancel, TQWidget parent=0, const char name=0, bool modal=true, bool separator=false, const KGuiItem &yes=KStdGuiItem::yes(), const KGuiItem &no=KStdGuiItem::no(), const KGuiItem &cancel=KStdGuiItem::cancel())

	~KDialogBase ()

void	setButtonBoxOrientation (int orientation)

void	setEscapeButton (ButtonCode id)

virtual void	adjustSize ()

virtual TQSize	sizeHint () const

virtual TQSize	minimumSizeHint () const

TQFrame *	plainPage ()

TQFrame *	addPage (const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQFrame *	addPage (const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQVBox *	addVBoxPage (const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQVBox *	addVBoxPage (const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQHBox *	addHBoxPage (const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQHBox *	addHBoxPage (const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQGrid *	addGridPage (int n, Orientation dir, const TQString &itemName, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

TQGrid *	addGridPage (int n, Orientation dir, const TQStringList &items, const TQString &header=TQString::null, const TQPixmap &pixmap=TQPixmap())

void	setFolderIcon (const TQStringList &path, const TQPixmap &pixmap)

TQFrame *	makeMainWidget ()

TQVBox *	makeVBoxMainWidget ()

TQHBox *	makeHBoxMainWidget ()

TQGrid *	makeGridMainWidget (int n, Orientation dir)

void	enableButtonSeparator (bool state)

void	showButton (ButtonCode id, bool state)

void	showButtonOK (bool state)

void	showButtonApply (bool state)

void	showButtonCancel (bool state)

bool	showPage (int index)

int	activePageIndex () const

int	pageIndex (TQWidget *widget) const

void	setMainWidget (TQWidget *widget)

TQWidget *	mainWidget ()

void	disableResize ()

void	setInitialSize (const TQSize &s, bool noResize=false)

void	incInitialSize (const TQSize &s, bool noResize=false)

TQSize	configDialogSize (const TQString &groupName) const

TQSize	configDialogSize (TDEConfig &config, const TQString &groupName) const

void	saveDialogSize (const TQString &groupName, bool global=false)

void	saveDialogSize (TDEConfig &config, const TQString &groupName, bool global=false) const

void	setButtonOK (const KGuiItem &item=KStdGuiItem::ok())

void	setButtonOKText (const TQString &text=TQString::null, const TQString &tooltip=TQString::null, const TQString &quickhelp=TQString::null) TDE_DEPRECATED

void	setButtonApply (const KGuiItem &item=KStdGuiItem::apply())

void	setButtonApplyText (const TQString &text=TQString::null, const TQString &tooltip=TQString::null, const TQString &quickhelp=TQString::null) TDE_DEPRECATED

void	setButtonCancel (const KGuiItem &item=KStdGuiItem::cancel())

void	setButtonCancelText (const TQString &text=TQString::null, const TQString &tooltip=TQString::null, const TQString &quickhelp=TQString::null) TDE_DEPRECATED

void	setButtonText (ButtonCode id, const TQString &text)

void	setButtonTip (ButtonCode id, const TQString &text)

void	setButtonWhatsThis (ButtonCode id, const TQString &text)

void	setButtonGuiItem (ButtonCode id, const KGuiItem &item)

void	setTreeListAutoResize (bool state)

void	setShowIconsInTreeList (bool state)

void	setRootIsDecorated (bool state)

void	unfoldTreeList (bool persist=false)

void	addWidgetBelowList (TQWidget *widget)

void	addButtonBelowList (const TQString &text, TQObject recv, const char slot)

void	addButtonBelowList (const KGuiItem &guiitem, TQObject recv, const char slot)

void	setIconListAllVisible (bool state)

void	showTile (bool state)

void	getBorderWidths (int &ulx, int &uly, int &lrx, int &lry) const TDE_DEPRECATED

TQRect	getContentsRect () const TDE_DEPRECATED

TQSize	calculateSize (int w, int h) const

TQString	helpLinkText () const

TQPushButton *	actionButton (ButtonCode id)

Public Member Functions inherited from KDialog
	KDialog (TQWidget parent=0, const char name=0, bool modal=false, WFlags f=0)

Static Public Member Functions
static bool	haveBackgroundTile ()

static const TQPixmap *	backgroundTile ()

static const TQPixmap *	getBackgroundTile () TDE_DEPRECATED

static void	setBackgroundTile (const TQPixmap *pix)

Static Public Member Functions inherited from KDialog
static int	marginHint ()

static int	spacingHint ()

static void	resizeLayout (TQWidget *widget, int margin, int spacing)

static void	resizeLayout (TQLayoutItem *lay, int margin, int spacing)

static void	centerOnScreen (TQWidget *widget, int screen=-1)

static bool	avoidArea (TQWidget *widget, const TQRect &area, int screen=-1)

Protected Slots
virtual void	slotHelp ()

virtual void	slotDefault ()

virtual void	slotDetails ()

virtual void	slotUser3 ()

virtual void	slotUser2 ()

virtual void	slotUser1 ()

virtual void	slotOk ()

virtual void	slotApply ()

virtual void	slotTry ()

virtual void	slotYes ()

virtual void	slotNo ()

virtual void	slotCancel ()

virtual void	slotClose ()

virtual void	applyPressed ()

void	updateGeometry ()

void	slotDelayedDestruct ()

Protected Member Functions
virtual void	keyPressEvent (TQKeyEvent *e)

virtual void	hideEvent (TQHideEvent *)

virtual void	closeEvent (TQCloseEvent *e)

virtual void	virtual_hook (int id, void *data)

Detailed Description

A dialog base class with standard buttons and predefined layouts.

Provides basic functionality needed by nearly all dialogs.

It offers the standard action buttons you'd expect to find in a dialog as well as the capability to define at most three configurable buttons. You can define a main widget that contains your specific dialog layout or you can use a predefined layout. Currently, TreeList/Paged, Tabbed, Plain, Swallow and IconList mode layouts (faces) are available.

The class takes care of the geometry management. You only need to define a minimum size for the widget you want to use as the main widget.

You can set a background tile (pixmap) for parts of the dialog. The tile you select is shared by all instances of this class in your application so that they all get the same look and feel.

There is a tutorial available on http://developer.kde.org/ (NOT YET) that contains copy/paste examples as well a screenshots on how to use this class.

Standard buttons (action buttons):
You select which buttons should be displayed, but you do not choose the order in which they are displayed. This ensures a standard interface in KDE. The button order can be changed, but this ability is only available for a central KDE control tool. The following buttons are available: OK, Cancel/Close, Apply/Try, Default, Help and three user definable buttons: User1, User2 and User3. You must specify the text of the UserN buttons. Each button has a virtual slot so you can overload the method when required. The default slots emit a signal as well, so you can choose to connect a signal instead of overriding the slot. The default implementation of slotHelp() will automatically enable the help system if you have provided a path to the help text. slotCancel() and slotClose() will run TQDialog::reject() while slotOk() will run TQDialog::accept(). You define a default button in the constructor.

If you don't want any buttons at all because your dialog is special in some way, then set the buttonMask argument in the constructor to zero (0). The optional button box separator line should not be enabled in this case. Note that the KDialogBase will animate a button press when the user press Escape. The button that is enabled is either Cancel, Close or the button that is defined by setEscapeButton() The animation will not take place when the buttonMask is zero. Your custom dialog code should reimplement the keyPressEvent and animate the cancel button so that the dialog behaves like regular dialogs. NOTE: None of the regular slots (like slotOk() ) or signals that are related to the standard action buttons will be used when you don't use these buttons.

Dialog shapes:
You can either use one of the prebuilt, easy to use, faces or define your own main widget. The dialog provides ready to use TreeList, Tabbed, Plain, Swallow and IconList faces. KDialogBase uses the KJanusWidget class internally to accomplish this. If you use TreeList, Tabbed or IconList mode, then add pages with addPage().

Pages that have been added can be removed again by simply deleting the page.

If you want complete control of how the dialog contents should look, then you can define a main widget by using setMainWidget(). You only need to set the minimum size of that widget and the dialog will resize itself to fit this minimum size. The dialog is resizeable, but cannot be made smaller than its minimum size.

Layout:
The dialog consists of a help area on top (becomes visible if you define a help path and use enableLinkedHelp()), the main area which is the built-in dialog face or your own widget in the middle and by default a button box at the bottom. The button box can also be placed at the right edge (to the right of the main widget). Use setButtonBoxOrientation() to control this behavior. A separator can be placed above the button box (or to the left when the button box is at the right edge). Normally you specify that you want a separator in the constructor, but you can use enableButtonSeparator() as well.

Standard compliance:
The class is derived from KDialog, so you get automatic access to the KDialog::marginHint(), KDialog::spacingHint() and the extended KDialog::setCaption() method. NOTE: The main widget you use will be positioned inside the dialog using a margin (or border) equal to KDialog::marginHint(). You should not add a margin yourself, since one will be added automatically. The example below (from kedit) shows how you use the top level widget and its layout. The second argument (the border) to QVBoxLayout is 0. This situation is valid for addPage , addVBoxPage , addHBoxPage , addGridPage , makeMainWidget , makeVBoxMainWidget , makeHBoxMainWidget and makeGridMainWidget as well.

Example:

UrlDlg::UrlDlg( TQWidget *parent, const TQString& caption,
                const TQString& urltext)
  : KDialogBase( parent, "urldialog", true, caption, Ok|Cancel, Ok, true )
{
  TQWidget *page = new TQWidget( this );
  setMainWidget(page);
  TQVBoxLayout *topLayout = new TQVBoxLayout( page, 0, spacingHint() );

  TQLabel *label = new TQLabel( caption, page, "caption" );
  topLayout->addWidget( label );

  lineedit = new TQLineEdit( urltext, page, "lineedit" );
  lineedit->setMinimumWidth(fontMetrics().maxWidth()*20);
  topLayout->addWidget( lineedit );

  topLayout->addStretch(10);
}

If you use makeVBoxMainWidget(), then the dialog above can be made simpler but you lose the ability to add a stretchable area:

UrlDlg::UrlDlg( TQWidget *parent, const TQString& caption,
                const TQString& urltext)
: KDialogBase( parent, "urldialog", true, caption, Ok|Cancel, Ok, true )
{
  TQVBox *page = makeVBoxMainWidget();
  TQLabel *label = new TQLabel( caption, page, "caption" );

  lineedit = new TQLineEdit( urltext, page, "lineedit" );
  lineedit->setMinimumWidth(fontMetrics().maxWidth()*20);
}

This class can be used in many ways. Note that most KDE ui widgets and many of KDE core applications use the KDialogBase so for more inspiration you should study the code for these.

Author: Mirko Boehm (mirko.nosp@m.@kde.nosp@m..org) and Espen Sand (espen.nosp@m.@kde.nosp@m..org)

Definition at line 191 of file kdialogbase.h.

Member Enumeration Documentation

◆ ButtonCode

enum KDialogBase::ButtonCode

Enumerator
Help	Show Help button.
Default	Show Default button.
Ok	Show Ok button.
Apply	Show Apply button.
Try	Show Try button.
Cancel	Show Cancel-button.
Close	Show Close-button.
User1	Show User defined button 1.
User2	Show User defined button 2.
User3	Show User defined button 3.
No	Show No button.
Yes	Show Yes button.
Details	Show Details button.
Filler	Ignored when used in a constructor.
Stretch	Ignored when used in a constructor.
NoDefault	Used when specifying a default button; indicates that no button should be marked by default. Since 3.3

Definition at line 197 of file kdialogbase.h.

◆ DialogType

enum KDialogBase::DialogType

TreeList - A dialog with a tree on the left side and a representation of the contents on the right side.
Tabbed - A dialog using a TQTabWidget.
Plain - A normal dialog. Use plainPage() as parent for widgets.
Swallow - Simplifes the usage of existing widgets. You specify the widget to be displayed by setMainWidget().
IconList - A dialog with an iconlist on the left side and a representation of the contents on the right side.

Definition at line 237 of file kdialogbase.h.

Constructor & Destructor Documentation

◆ KDialogBase() [1/4]

KDialogBase::KDialogBase	(	TQWidget *	parent = `0`,
		const char *	name = `0`,
		bool	modal = `true`,
		const TQString &	caption = `TQString::null`,
		int	buttonMask = `Ok\|Apply\|Cancel`,
		ButtonCode	defaultButton = `Ok`,
		bool	separator = `false`,
		const KGuiItem &	user1 = `KGuiItem()`,
		const KGuiItem &	user2 = `KGuiItem()`,
		const KGuiItem &	user3 = `KGuiItem()`
	)

Constructor for the standard mode where you must specify the main widget with setMainWidget() .

Parameters

parent	Parent of the dialog.
name	Dialog name (for internal use only)
modal	Controls dialog modality. If `false`, the rest of the program interface (example: other dialogs) is accessible while the dialog is open.
caption	The dialog caption. Do not specify the application name here. The class will take care of that.
buttonMask	Specifies which buttons will be visible. If zero (0) no button box will be made.
defaultButton	Specifies which button will be marked as the default. Use ButtonCode::NoDefault to indicate that no button should be marked as the default button.
separator	If `true`, a separator line is drawn between the action buttons and the main widget.
user1	User button1 item.
user2	User button2 item.
user3	User button3 item.

Definition at line 99 of file kdialogbase.cpp.

◆ KDialogBase() [2/4]

KDialogBase::KDialogBase	(	int	dialogFace,
		const TQString &	caption,
		int	buttonMask,
		ButtonCode	defaultButton,
		TQWidget *	parent = `0`,
		const char *	name = `0`,
		bool	modal = `true`,
		bool	separator = `false`,
		const KGuiItem &	user1 = `KGuiItem()`,
		const KGuiItem &	user2 = `KGuiItem()`,
		const KGuiItem &	user3 = `KGuiItem()`
	)

In KDE4 a WFlag paramater should be added after modal and next function can be removed.

Constructor for the predefined layout mode where you specify the kind of layout (face).

Parameters

dialogFace	You can use TreeList, Tabbed, Plain, Swallow or IconList.
caption	The dialog caption. Do not specify the application name here. The class will take care of that.
buttonMask	Specifies which buttons will be visible. If zero (0) no button box will be made.
defaultButton	Specifies which button will be marked as the default. Use ButtonCode::NoDefault to indicate that no button should be marked as the default button.
parent	Parent of the dialog.
name	Dialog name (for internal use only).
modal	Controls dialog modality. If `false`, the rest of the program interface (example: other dialogs) is accessible while the dialog is open.
separator	If `true`, a separator line is drawn between the action buttons and the main widget.
user1	User button1 text item.
user2	User button2 text item.
user3	User button3 text item.

Definition at line 121 of file kdialogbase.cpp.

◆ KDialogBase() [3/4]

KDialogBase::KDialogBase	(	KDialogBase::DialogType	dialogFace,
		WFlags	f,
		TQWidget *	parent = `0`,
		const char *	name = `0`,
		bool	modal = `true`,
		const TQString &	caption = `TQString::null`,
		int	buttonMask = `Ok\|Apply\|Cancel`,
		ButtonCode	defaultButton = `Ok`,
		bool	separator = `false`,
		const KGuiItem &	user1 = `KGuiItem()`,
		const KGuiItem &	user2 = `KGuiItem()`,
		const KGuiItem &	user3 = `KGuiItem()`
	)

Constructor for the predefined layout mode where you specify the kind of layout (face).

Parameters

dialogFace	You can use TreeList, Tabbed, Plain, Swallow or IconList.
f	widget flags, by default it is just set to WStyle_DialogBorder.
caption	The dialog caption. Do not specify the application name here. The class will take care of that.
parent	Parent of the dialog.
name	Dialog name (for internal use only).
modal	Controls dialog modality. If `false`, the rest of the program interface (example: other dialogs) is accessible while the dialog is open.
buttonMask	Specifies which buttons will be visible. If zero (0) no button box will be made.
defaultButton	Specifies which button will be marked as the default. Use ButtonCode::NoDefault to indicate that no button should be marked as the default button.
separator	If `true`, a separator line is drawn between the action buttons and the main widget.
user1	User button1 text item.
user2	User button2 text item.
user3	User button3 text item.

Since: : 3.2

Definition at line 149 of file kdialogbase.cpp.

◆ KDialogBase() [4/4]

KDialogBase::KDialogBase	(	const TQString &	caption,
		int	buttonMask = `Yes\|No\|Cancel`,
		ButtonCode	defaultButton = `Yes`,
		ButtonCode	escapeButton = `Cancel`,
		TQWidget *	parent = `0`,
		const char *	name = `0`,
		bool	modal = `true`,
		bool	separator = `false`,
		const KGuiItem &	yes = `KStdGuiItem::yes()`,
		const KGuiItem &	no = `KStdGuiItem::no()`,
		const KGuiItem &	cancel = `KStdGuiItem::cancel()`
	)

Constructor for a message box mode where the buttonMask can only contain Yes, No, or Cancel.

If you need other names you can rename the buttons with setButtonText(). The dialog box is not resizable by default but this can be changed by setInitialSize(). If you select 'modal' to be true, the dialog will return Yes, No, or Cancel when closed otherwise you can use the signals yesClicked(), noClicked(), or cancelClicked() to determine the state.

Parameters

caption	The dialog caption. Do not specify the application name here. The class will take care of that.
buttonMask	Specifies which buttons will be visible. If zero (0) no button box will be made.
defaultButton	Specifies which button will be marked as the default. Use ButtonCode::NoDefault to indicate that no button should be marked as the default button.
escapeButton	Specifies which button will be activated by when the dialog receives a `Key_Escape` keypress.
parent	Parent of the dialog.
name	Dialog name (for internal use only).
modal	Controls dialog modality. If `false`, the rest of the program interface (example: other dialogs) is accessible while the dialog is open.
separator	If `true`, a separator line is drawn between the action buttons and the main widget.
yes	Text to use for the first button (defaults to i18n("Yes"))
no	Text to use for the second button (defaults to i18n("No"))
cancel	Text to use for the third button (defaults to i18n("Cancel"))

Definition at line 178 of file kdialogbase.cpp.

◆ ~KDialogBase()

KDialogBase::~KDialogBase ( )

Destructor.

Definition at line 211 of file kdialogbase.cpp.

Member Function Documentation

◆ aboutToShowDetails

void KDialogBase::aboutToShowDetails ( )

signal

The detailsWidget is about to get shown.

This is your last chance to call setDetailsWidget if you haven't done so yet.

◆ aboutToShowPage

void KDialogBase::aboutToShowPage ( TQWidget * page )

signal

A page is about to be shown.

This signal is only emitted for the TreeList and IconList faces.

◆ actionButton()

TQPushButton * KDialogBase::actionButton ( ButtonCode id )

Returns the action button that corresponds to the id.

Normally you should not use this function. Never delete the object returned by this function. See also enableButton(), showButton(), setButtonTip(), setButtonWhatsThis(), and setButtonText().

Parameters

id	Integer identifier of the button.

Returns: The action button or 0 if the button does not exists.

FIXME KDE 4: Return the actual KPushButton instead of TQPushButton (Martijn)

Definition at line 832 of file kdialogbase.cpp.

◆ activePageIndex()

int KDialogBase::activePageIndex ( ) const

Returns the index of the active page.

This method will only work when the dialog is using the predefined shape of Tabbed, TreeList or IconList.

Returns: The page index or -1 if there is no active page.

Definition at line 1476 of file kdialogbase.cpp.

◆ addButtonBelowList() [1/2]

void KDialogBase::addButtonBelowList	(	const KGuiItem &	guiitem,
		TQObject *	recv,
		const char *	slot
	)

The same as the above function, but with a KGuiItem providing the text and icon for the button at the bottom of the TreeList/IconList.

Parameters

guiitem	The text and icon on the PushButton.
recv	The object that is to receive the signal when the button is clicked.
slot	The slot to connect to the clicked signal of the button.

Since: 3.2

Definition at line 1079 of file kdialogbase.cpp.

◆ addButtonBelowList() [2/2]

void KDialogBase::addButtonBelowList	(	const TQString &	text,
		TQObject *	recv,
		const char *	slot
	)

Add a button at the bottom of the TreeList/IconList.

Parameters

text	The text on the PushButton.
recv	The object that is to receive the signal when the button is clicked.
slot	The slot to connect to the clicked signal of the button.

Since: 3.2

Definition at line 1073 of file kdialogbase.cpp.

◆ addGridPage() [1/2]

TQGrid * KDialogBase::addGridPage	(	int	n,
		Orientation	dir,
		const TQString &	itemName,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

Add a page to the dialog when the class is used in TreeList, IconList or Tabbed mode.

The returned widget must be used as the toplevel widget for this particular page. The widget contains a TQGridLayout layout so the widget children are positioned in a grid.

Parameters

n	Specifies the number of columns if `dir` is TQt::Horizontal or the number of rows if `dir` is TQt::Vertical.
dir	Can be TQt::Horizontal or TQt::Vertical.
itemName	String used in the list or as tab item name.
header	Header text use in the list modes `Ignored` in `Tabbed` mode. If empty, the item text is used instead.
pixmap	Used in `IconList` mode. You should prefer a pixmap with size 32x32 pixels.

Returns: The page widget which must be used as the toplevel widget for the page.

Definition at line 1337 of file kdialogbase.cpp.

◆ addGridPage() [2/2]

TQGrid * KDialogBase::addGridPage	(	int	n,
		Orientation	dir,
		const TQStringList &	items,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

This is like addGridPage() just above, with the difference that the first element is a list of strings.

These strings are used to form a path of folders down to the given page. The initial elements are names for the folders, while the last element is the name of the page. Note: This does yet only work for the TreeList face. Later this may be added for the IconList face too. In other faces than the TreeList, all the strings except the last one is ignored.

Definition at line 1344 of file kdialogbase.cpp.

◆ addHBoxPage() [1/2]

TQHBox * KDialogBase::addHBoxPage	(	const TQString &	itemName,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

Add a page to the dialog when the class is used in TreeList, IconList or Tabbed mode.

The returned widget must be used as the toplevel widget for this particular page. The widget contains a TQHBoxLayout layout so the widget children are lined up horizontally. You can use it as follows:

Parameters

itemName	String used in the list or as tab item name.
header	Header text use in the list modes. Ignored in Tabbed mode. If empty, the item text is used instead.
pixmap	Used in IconList mode. You should prefer a pixmap with size 32x32 pixels.

Returns: The page widget which must be used as the toplevel widget for the page.

Definition at line 1322 of file kdialogbase.cpp.

◆ addHBoxPage() [2/2]

TQHBox * KDialogBase::addHBoxPage	(	const TQStringList &	items,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

This is like addHBoxPage() just above, with the difference that the first element is a list of strings.

These strings are used to form a path of folders down to the given page. The initial elements are names for the folders, while the last element is the name of the page. Note: This does yet only work for the TreeList face. Later this may be added for the IconList face too. In other faces than the TreeList, all the strings except the last one is ignored.

Definition at line 1329 of file kdialogbase.cpp.

◆ addPage() [1/2]

TQFrame * KDialogBase::addPage	(	const TQString &	itemName,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

Add a page to the dialog when the class is used in TreeList , IconList or Tabbed mode.

The returned widget must be used as the toplevel widget for this particular page. Note: The returned frame widget has no layout manager associated with it. In order to use it you must create a layout yourself as the example below illustrates:

TQFrame *page = addPage( i18n("Layout") );
TQVBoxLayout *topLayout = new TQVBoxLayout( page, 0, KDialog::spacingHint() );
TQLabel *label = new TQLabel( i18n("Layout type"), page );
topLayout->addWidget( label );
..

Parameters

itemName	String used in the list or as tab item name.
header	Header text use in the list modes. Ignored in `Tabbed` mode. If empty, the item text is used instead.
pixmap	Used in `IconList` mode. You should prefer a pixmap with size 32x32 pixels.

Returns: The page widget which must be used as the toplevel widget for the page.

Definition at line 1296 of file kdialogbase.cpp.

◆ addPage() [2/2]

TQFrame * KDialogBase::addPage	(	const TQStringList &	items,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

This is like addPage() just above, with the difference that the first element is a list of strings.

These strings are used to form a path of folders down to the given page. The initial elements are names for the folders, while the last element is the name of the page. Note: This does yet only work for the TreeList face. Later this may be added for the IconList face too. In other faces than the TreeList, all the strings except the last one is ignored.

Definition at line 1302 of file kdialogbase.cpp.

◆ addVBoxPage() [1/2]

TQVBox * KDialogBase::addVBoxPage	(	const TQString &	itemName,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

Add a page to the dialog when the class is used in TreeList, IconList or Tabbed mode.

The returned widget must be used as the toplevel widget for this particular page. The widget contains a QVBoxLayout layout so the widget children are lined up vertically. You can use it as follows:

TQVBox *page = addVBoxPage( i18n("Layout") );
TQLabel *label = new TQLabel( i18n("Layout type"), page );
..

Parameters

itemName	String used in the list or as tab item name.
header	Header text use in the list modes. Ignored in `Tabbed` mode. If empty, the item text is used instead.
pixmap	Used in `IconList` mode. You should prefer a pixmap with size 32x32 pixels.

Returns: The page widget which must be used as the toplevel widget for the page.

Definition at line 1309 of file kdialogbase.cpp.

◆ addVBoxPage() [2/2]

TQVBox * KDialogBase::addVBoxPage	(	const TQStringList &	items,
		const TQString &	header = `TQString::null`,
		const TQPixmap &	pixmap = `TQPixmap()`
	)

This is like addVBoxPage() just above, with the difference that the first element is a list of strings.

These strings are used to form a path of folders down to the given page. The initial elements are names for the folders, while the last element is the name of the page. Note: This does yet only work for the TreeList face. Later this may be added for the IconList face too. In other faces than the TreeList, all the strings except the last one is ignored.

Definition at line 1315 of file kdialogbase.cpp.

◆ addWidgetBelowList()

void KDialogBase::addWidgetBelowList ( TQWidget * widget )

Add a widget at the bottom of the TreeList/IconList.

Parameters

widget The widget to be added. It will be reparented into the KJanusWidget, therefor it will be deleted with the KJanusWidget, too. To be on the save side just don't keep the pointer to this widget.

Definition at line 1067 of file kdialogbase.cpp.

◆ adjustSize()

void KDialogBase::adjustSize ( )

virtual

Adjust the size of the dialog to fit the contents just before TQDialog::exec() or TQDialog::show() is called.

This method will not be called if the dialog has been explicitly resized before showing it.

Definition at line 427 of file kdialogbase.cpp.

◆ apply

void KDialogBase::apply ( )

signal

Do not use this signal.

Is is kept for compatibility reasons.

Deprecated:: Use applyClicked() instead.

◆ applyClicked

void KDialogBase::applyClicked ( )

signal

The Apply button was pressed.

This signal is only emitted if slotApply() is not replaced.

◆ applyPressed

void KDialogBase::applyPressed ( )

protectedvirtualslot

Deprecated:: Do not use this slot.

Is is kept for compatibility reasons. Activated when the Apply button has been clicked

Definition at line 1235 of file kdialogbase.cpp.

◆ backgroundChanged

void KDialogBase::backgroundChanged ( )

signal

The background tile has changed.

◆ backgroundTile()

const TQPixmap * KDialogBase::backgroundTile ( )

static

Returns a pointer to the background tile if there is one.

Returns: The tile pointer or 0 if no tile is defined.

Definition at line 1670 of file kdialogbase.cpp.

◆ calculateSize()

TQSize KDialogBase::calculateSize	(	int	w,
		int	h
	)		const

Calculate the size hint for the dialog.

With this method it is easy to calculate a size hint for a dialog derived from KDialogBase if you know the width and height of the elements you add to the widget. The rectangle returned is calculated so that all elements exactly fit into it. Thus, you may set it as a minimum size for the resulting dialog.

You should not need to use this method and never if you use one of the predefined shapes.

Parameters

w	The width of you special widget.
h	The height of you special widget.

Returns: The minimum width and height of the dialog using w and h as the size of the main widget.

Definition at line 1528 of file kdialogbase.cpp.

◆ cancel

void KDialogBase::cancel ( )

slot

Force closing the dialog, setting its result code to the one Esc would set.

You shouldn't use this, generally (let the user make his choice!) but it can be useful when you need to make a choice after a timeout has happened, or when the parent widget has to go somewhere else (e.g. html redirections).

Since: 3.1

Definition at line 1632 of file kdialogbase.cpp.

◆ cancelClicked

void KDialogBase::cancelClicked ( )

signal

The Cancel button was pressed.

This signal is only emitted if slotCancel() is not replaced.

◆ closeClicked

void KDialogBase::closeClicked ( )

signal

The Close button was pressed.

This signal is only emitted if slotClose() is not replaced.

◆ closeEvent()

void KDialogBase::closeEvent ( TQCloseEvent * e )

protectedvirtual

Detects when a dialog is being closed from the window manager controls.

If the Cancel or Close button is present then the button is activated. Otherwise standard TQDialog behavior will take place.

Definition at line 1622 of file kdialogbase.cpp.

◆ configDialogSize() [1/2]

TQSize KDialogBase::configDialogSize ( const TQString & groupName ) const

read the dialogs size from the configuration according to the screen size.

If no size is saved for one dimension of the screen, sizeHint() is returned.

Parameters

groupName Name of the group to read from. The old group of TDEGlobal::config is preserved.

Definition at line 1741 of file kdialogbase.cpp.

◆ configDialogSize() [2/2]

TQSize KDialogBase::configDialogSize	(	TDEConfig &	config,
		const TQString &	groupName
	)		const

read the dialogs size from the configuration according to the screen size.

If no size is saved for one dimension of the screen, sizeHint() is returned.

Parameters

config	The TDEConfig object to read from
groupName	Name of the group to read from. The old group of TDEGlobal::config is preserved.

Since: 3.2

Definition at line 1747 of file kdialogbase.cpp.

◆ defaultClicked

void KDialogBase::defaultClicked ( )

signal

The Default button was pressed.

This signal is only emitted if slotDefault() is not replaced.

◆ delayedDestruct

void KDialogBase::delayedDestruct ( )

slot

Destruct the Dialog delayed.

You can call this function from slots like closeClicked() and hidden(). You should not use the dialog any more after calling this function.

Since: 3.1

Definition at line 280 of file kdialogbase.cpp.

◆ disableResize()

void KDialogBase::disableResize ( )

Convenience method.

Freezes the dialog size using the minimum size of the dialog. This method should only be called right before show() or exec().

Definition at line 531 of file kdialogbase.cpp.

◆ enableButton

void KDialogBase::enableButton	(	ButtonCode	id,
		bool	state
	)

slot

Enable or disable (gray out) a general action button.

Parameters

id	Button identifier.
state	`true` enables the button(s).

Definition at line 838 of file kdialogbase.cpp.

◆ enableButtonApply

void KDialogBase::enableButtonApply ( bool state )

slot

Enable or disable (gray out) the Apply button.

Parameters

state true enables the button.

Definition at line 854 of file kdialogbase.cpp.

◆ enableButtonCancel

void KDialogBase::enableButtonCancel ( bool state )

slot

Enable or disable (gray out) the Cancel button.

Parameters

state true enables the button.

Definition at line 860 of file kdialogbase.cpp.

◆ enableButtonOK

void KDialogBase::enableButtonOK ( bool state )

slot

Enable or disable (gray out) the OK button.

Parameters

state true enables the button.

Definition at line 848 of file kdialogbase.cpp.

◆ enableButtonSeparator()

void KDialogBase::enableButtonSeparator ( bool state )

Hide or display the a separator line drawn between the action buttons an the main widget.

Definition at line 389 of file kdialogbase.cpp.

◆ enableLinkedHelp

void KDialogBase::enableLinkedHelp ( bool state )

slot

Display or hide the help link area on the top of the dialog.

Parameters

state true will display the area.

Definition at line 1241 of file kdialogbase.cpp.

◆ finished

void KDialogBase::finished ( )

signal

The dialog has finished.

A dialog emits finished after a user clicks a button that ends the dialog.

This signal is also emitted when you call hide()

If you have stored a pointer to the dialog do not try to delete the pointer in the slot that is connected to this signal.

You should use delayedDestruct() instead.

◆ getBackgroundTile()

const TQPixmap * KDialogBase::getBackgroundTile ( )

static

Deprecated:: Use backgroundTile() instead.

Definition at line 1668 of file kdialogbase.cpp.

◆ getBorderWidths()

void KDialogBase::getBorderWidths	(	int &	ulx,
		int &	uly,
		int &	lrx,
		int &	lry
	)		const

Deprecated:: Do not use this method.

It is included for compatibility reasons.

This method returns the border widths in all directions the dialog needs for itself. Respect this, or get bad looking results. The references are upper left x (ulx), upper left y (uly), lower right x (lrx), and lower left y (lly). The results are differences in pixels from the dialogs corners.

Definition at line 1510 of file kdialogbase.cpp.

◆ getContentsRect()

TQRect KDialogBase::getContentsRect ( ) const

Deprecated:: Do not use this method.

It is included for compatibility reasons.

This method returns the contents rectangle of the work area. Place your widgets inside this rectangle, and use it to set up their geometry. Be careful: The rectangle is only valid after resizing the dialog, as it is a result of the resizing process. If you need the "overhead" the dialog needs for its elements, use getBorderWidths().

Definition at line 1489 of file kdialogbase.cpp.

◆ haveBackgroundTile()

bool KDialogBase::haveBackgroundTile ( )

static

Check whether the background tile is set or not.

Returns: true if there is defined a background tile.

Definition at line 1662 of file kdialogbase.cpp.

◆ helpClicked

void KDialogBase::helpClicked ( )

signal

The Help button was pressed.

This signal is only emitted if slotHelp() is not replaced.

◆ helpClickedSlot

void KDialogBase::helpClickedSlot ( const TQString & )

slot

Connected to help link label.

Definition at line 1229 of file kdialogbase.cpp.

◆ helpLinkText()

TQString KDialogBase::helpLinkText ( ) const

Returns the help link text.

If no text has been defined, "Get help..." (internationalized) is returned.

Returns: The help link text.

Definition at line 1536 of file kdialogbase.cpp.

◆ hidden

void KDialogBase::hidden ( )

signal

The dialog is about to be hidden.

A dialog is hidden after a user clicks a button that ends the dialog or when the user switches to another desktop or minimizes the dialog.

◆ hideEvent()

void KDialogBase::hideEvent ( TQHideEvent * ev )

protectedvirtual

Emits the hidden signal.

You can connect to that signal to detect when a dialog has been closed.

Definition at line 1611 of file kdialogbase.cpp.

◆ incInitialSize()

void KDialogBase::incInitialSize	(	const TQSize &	s,
		bool	noResize = `false`
	)

Convenience method.

Add a size to the default minimum size of a dialog.

This method should only be called right before show() or exec().

Parameters

s	Size added to minimum size.
noResize	If `true` the dialog cannot be resized.

Definition at line 545 of file kdialogbase.cpp.

◆ keyPressEvent()

void KDialogBase::keyPressEvent ( TQKeyEvent * e )

protectedvirtual

Maps some keys to the actions buttons.

F1 is mapped to the Help button if present and Escape to the Cancel or Close if present. The button action event is animated.

Reimplemented from KDialog.

Reimplemented in KColorDialog.

Definition at line 1553 of file kdialogbase.cpp.

◆ mainWidget()

TQWidget * KDialogBase::mainWidget ( )

Returns the main widget if any.

Returns: The current main widget. Can be 0 if no widget has been defined.

Definition at line 1464 of file kdialogbase.cpp.

◆ makeGridMainWidget()

TQGrid * KDialogBase::makeGridMainWidget	(	int	n,
		Orientation	dir
	)

Make a main widget.

The function will make a TQGrid widget and use setMainWidget() to register it. You can not use this function more than once, not if you have already defined a main widget with setMainWidget and not if you have used the constructor where you define the face (Plain, Swallow, Tabbed, TreeList, IconList).

Parameters

n	Specifies the number of columns if 'dir' is TQt::Horizontal or the number of rows if 'dir' is TQt::Vertical.
dir	Can be TQt::Horizontal or TQt::Vertical.

Returns: The main widget or 0 if any of the rules described above were broken.

Definition at line 1403 of file kdialogbase.cpp.

◆ makeHBoxMainWidget()

TQHBox * KDialogBase::makeHBoxMainWidget ( )

Make a main widget.

The function will make a TQHBox widget and use setMainWidget() to register it. You can not use this function more than once, not if you have already defined a main widget with setMainWidget() and not if you have used the constructor where you define the face (Plain, Swallow, Tabbed, TreeList, IconList).

Returns: The main widget or 0 if any of the rules described above were broken.

Definition at line 1388 of file kdialogbase.cpp.

◆ makeMainWidget()

TQFrame * KDialogBase::makeMainWidget ( )

Make a main widget.

The function will make a TQFrame widget and use setMainWidget() to register it. You can not use this function more than once, not if you have already defined a main widget with setMainWidget() and not if you have used the constructor where you define the face (Plain, Swallow, Tabbed, TreeList).

Returns: The main widget or 0 if any of the rules described above were broken.

Definition at line 1359 of file kdialogbase.cpp.

◆ makeVBoxMainWidget()

TQVBox * KDialogBase::makeVBoxMainWidget ( )

Make a main widget.

The function will make a TQVBox widget and use setMainWidget() to register it. You can use this function more than once, but not if you have already defined a main widget with setMainWidget() and not if you have used the constructor where you define the face (Plain, Swallow, Tabbed, TreeList, IconList).

Returns: The main widget or 0 if any of the rules described above were broken.

Definition at line 1373 of file kdialogbase.cpp.

◆ noClicked

void KDialogBase::noClicked ( )

signal

The No button was pressed.

This signal is only emitted if slotNo() is not replaced.

◆ okClicked

void KDialogBase::okClicked ( )

signal

The OK button was pressed.

This signal is only emitted if slotOk() is not replaced.

◆ pageIndex()

int KDialogBase::pageIndex ( TQWidget * widget ) const

Returns the index of a page created with addPage(), addVBoxPage(), addHBoxPage() or addGridPage().

You can can compare this index with the value returned from activePageIndex() if you need to do some page specific actions in your code.

The returned index will never change so you can safely use this function once and save the value.

Parameters

widget The widget returned by addPage(), addVBoxPage(), addHBoxPage() or addGridPage().

Returns: The index or -1 if the face is not Tabbed, TreeList or IconList

Definition at line 1482 of file kdialogbase.cpp.

◆ plainPage()

TQFrame * KDialogBase::plainPage ( )

Retrieve the empty page when the predefined layout is used in Plain mode.

This widget must be used as the toplevel widget of your dialog code.

Returns: The widget or 0 if the predefined layout mode is not Plain or if you don't use any predefined layout.

Definition at line 420 of file kdialogbase.cpp.

◆ saveDialogSize() [1/2]

void KDialogBase::saveDialogSize	(	const TQString &	groupName,
		bool	global = `false`
	)

save the dialogs size dependant on the screen dimension either to the global or application config file.

Parameters

groupName	The group to which the dialogs size is saved. See configDialogSize to read the size.
global	Set to true if the entry should go to the global config rather than to the applications config. Default is false.

Definition at line 1765 of file kdialogbase.cpp.

◆ saveDialogSize() [2/2]

void KDialogBase::saveDialogSize	(	TDEConfig &	config,
		const TQString &	groupName,
		bool	global = `false`
	)		const

save the dialogs size dependant on the screen dimension.

Parameters

config	The TDEConfig object to write to.
groupName	The group to which the dialogs size is saved. See configDialogSize to read the size.
global	Set to true if the entry should go to the global config. Default is false.

Since: 3.2

Definition at line 1771 of file kdialogbase.cpp.

◆ setBackgroundTile()

void KDialogBase::setBackgroundTile ( const TQPixmap * pix )

static

Sets the background tile.

If it is Null (0), the background image is deleted.

Parameters

pix	The background tile.

Definition at line 1676 of file kdialogbase.cpp.

◆ setButtonApply()

void KDialogBase::setButtonApply ( const KGuiItem & item = KStdGuiItem::apply() )

Sets the appearance of the Apply button.

If the default parameters are used (that is, if no KGuiItem is given) KStdGuiItem::apply() is used.

Parameters

item KGuiItem.

Since: 3.2

Definition at line 946 of file kdialogbase.cpp.

◆ setButtonApplyText()

void KDialogBase::setButtonApplyText	(	const TQString &	text = `TQString::null`,
		const TQString &	tooltip = `TQString::null`,
		const TQString &	quickhelp = `TQString::null`
	)

Deprecated:: .

Use setButtonApply() instead.

Sets the text of the Apply button.

If the default parameters are used (that is, if no parameters are given) the standard texts are set: The button shows "Apply", the tooltip contains "Apply settings." (internationalized) and the quickhelp text explains the standard behavior of the apply button in settings dialogs.

Parameters

text	Button text.
tooltip	Tooltip text.
quickhelp	Quick help text.

Definition at line 922 of file kdialogbase.cpp.

◆ setButtonBoxOrientation()

void KDialogBase::setButtonBoxOrientation ( int orientation )

Sets the orientation of the button box.

It can be Vertical or Horizontal. If Horizontal (default), the button box is positioned at the bottom of the dialog. If Vertical it will be placed at the right edge of the dialog.

Parameters

orientation The button box orientation.

Definition at line 345 of file kdialogbase.cpp.

◆ setButtonCancel()

void KDialogBase::setButtonCancel ( const KGuiItem & item = KStdGuiItem::cancel() )

Sets the appearance of the Cancel button.

If the default parameters are used (that is, if no KGuiItem is given) KStdGuiItem::cancel() is used.

Parameters

item KGuiItem.

Since: 3.2

Definition at line 970 of file kdialogbase.cpp.

◆ setButtonCancelText()

void KDialogBase::setButtonCancelText	(	const TQString &	text = `TQString::null`,
		const TQString &	tooltip = `TQString::null`,
		const TQString &	quickhelp = `TQString::null`
	)

Deprecated:: .

Use setButtonCancel() instead.

Sets the text of the Cancel button.

If the default parameters are used (that is, if no parameters are given) the standard texts are set: The button shows "Cancel", everything else will not be set.

Parameters

text	Button text.
tooltip	Tooltip text.
quickhelp	Quick help text.

Definition at line 952 of file kdialogbase.cpp.

◆ setButtonGuiItem()

void KDialogBase::setButtonGuiItem	(	ButtonCode	id,
		const KGuiItem &	item
	)

Sets the KGuiItem directly for the button instead of using 3 methods to set the text, tooltip and whatsthis strings.

This also allows to set an icon for the button which is otherwise not possible for the extra buttons beside Ok, Cancel and Apply.

Parameters

id	The button identifier.
item	The KGuiItem for the button.

Since: 3.3

Definition at line 975 of file kdialogbase.cpp.

◆ setButtonOK()

void KDialogBase::setButtonOK ( const KGuiItem & item = KStdGuiItem::ok() )

Sets the appearance of the OK button.

If the default parameters are used (that is, if no KGuiItem is given) KStdGuiItem::ok() is used.

Parameters

item KGuiItem.

Since: 3.2

Definition at line 916 of file kdialogbase.cpp.

◆ setButtonOKText()

void KDialogBase::setButtonOKText	(	const TQString &	text = `TQString::null`,
		const TQString &	tooltip = `TQString::null`,
		const TQString &	quickhelp = `TQString::null`
	)

Deprecated:: .

Use setButtonOk() instead.

Sets the text of the OK button.

If the default parameters are used (that is, if no parameters are given) the standard texts are set: The button shows "OK", the tooltip contains "Accept settings." (internationalized) and the quickhelp text explains the standard behavior of the OK button in settings dialogs.

Parameters

text	Button text.
tooltip	Tooltip text.
quickhelp	Quick help text.

Definition at line 894 of file kdialogbase.cpp.

◆ setButtonText()

void KDialogBase::setButtonText	(	ButtonCode	id,
		const TQString &	text
	)

Sets the text of any button.

Parameters

id	The button identifier.
text	Button text.

Definition at line 986 of file kdialogbase.cpp.

◆ setButtonTip()

void KDialogBase::setButtonTip	(	ButtonCode	id,
		const TQString &	text
	)

Sets the tooltip text of any button.

Parameters

id	The button identifier.
text	Button text.

Definition at line 1003 of file kdialogbase.cpp.

◆ setButtonWhatsThis()

void KDialogBase::setButtonWhatsThis	(	ButtonCode	id,
		const TQString &	text
	)

Sets the "What's this?" text of any button.

Parameters

id	The button identifier.
text	Button text.

Definition at line 1016 of file kdialogbase.cpp.

◆ setDetails

void KDialogBase::setDetails ( bool showDetails )

slot

Sets the status of the Details button.

Definition at line 1127 of file kdialogbase.cpp.

◆ setDetailsWidget

void KDialogBase::setDetailsWidget ( TQWidget * detailsWidget )

slot

Sets the widget that gets shown when "Details" is enabled.

The dialog takes over ownership of the widget. Any previously set widget gets deleted.

Definition at line 1112 of file kdialogbase.cpp.

◆ setEscapeButton()

void KDialogBase::setEscapeButton ( ButtonCode id )

Sets the button that will be activated when the Escape key is pressed.

Normally you should not use this function. By default, the Escape key is mapped to either the Cancel or the Close button if one of these buttons are defined. The user expects that Escape will cancel an operation so use this function with caution.

Parameters

id	The button code.

Definition at line 365 of file kdialogbase.cpp.

◆ setFolderIcon()

void KDialogBase::setFolderIcon	(	const TQStringList &	path,
		const TQPixmap &	pixmap
	)

Sets the icon used in TreeList Mode for the given path.

Parameters

path	The path for which this icon should be shown.
pixmap	The icon used.

Definition at line 1351 of file kdialogbase.cpp.

◆ setHelp

void KDialogBase::setHelp	(	const TQString &	anchor,
		const TQString &	appname = `TQString::null`
	)

slot

Sets the help path and topic.

Parameters

anchor	Defined anchor in your docbook sources
appname	Defines the appname the help belongs to If empty it's the current one

Note: The help button works differently for the class KCMultiDialog, so it does not make sense to call this function for Dialogs of that type. See KCMultiDialog::slotHelp() for more information.

Definition at line 1279 of file kdialogbase.cpp.

◆ setHelpLinkText

void KDialogBase::setHelpLinkText ( const TQString & text )

slot

Sets the text that is shown as the linked text.

If text is empty, the text "Get help..." (internationalized) is used instead.

Parameters

text	The link text.

Definition at line 1286 of file kdialogbase.cpp.

◆ setIconListAllVisible()

void KDialogBase::setIconListAllVisible ( bool state )

This function has only effect in IconList mode.

Defines how the icon list widget is displayed. By default it is the widgets in the dialog pages that decide the minimum height of the dialog. A vertical scrollbar can be used in the icon list area.

Parameters

state The visibility mode. If true, the minimum height is adjusted so that every icon in the list is visible at the same time. The vertical scrollbar will never be visible.

Definition at line 1085 of file kdialogbase.cpp.

◆ setInitialSize()

void KDialogBase::setInitialSize	(	const TQSize &	s,
		bool	noResize = `false`
	)

Convenience method.

Sets the initial dialog size.

This method should only be called right before show() or exec(). The initial size will be ignored if smaller than the dialog's minimum size.

Parameters

s	Startup size.
noResize	If `true` the dialog cannot be resized.

Definition at line 537 of file kdialogbase.cpp.

◆ setMainWidget()

void KDialogBase::setMainWidget ( TQWidget * widget )

Sets the main user definable widget.

If the dialog is using the predefined Swallow mode, the widget will be reparented to the internal swallow control widget. If the dialog is being used in the standard mode then the widget must have the dialog as parent.

Parameters

widget The widget to be displayed as main widget. If it is 0, then the dialog will show an empty space of 100x100 pixels instead.

Definition at line 1431 of file kdialogbase.cpp.

◆ setRootIsDecorated()

void KDialogBase::setRootIsDecorated ( bool state )

This function has only effect in TreeList mode.

This tells the widgets whether the root should be decorated. For details see TQListView::setRootIsDecorated

Parameters

state Root will be decorated if true.

Definition at line 1053 of file kdialogbase.cpp.

◆ setShowIconsInTreeList()

void KDialogBase::setShowIconsInTreeList ( bool state )

This function has only effect in TreeList mode.

This tells the widgets whether the icons given in the addPage, addVBoxPage, addHBoxPage, or addGridPage methods should be shown in the TreeList.

Note: This method must be called before calling any of the methods which add icons to the page.

Parameters

state If true the icons are shown.

Definition at line 1045 of file kdialogbase.cpp.

◆ setTreeListAutoResize()

void KDialogBase::setTreeListAutoResize ( bool state )

This function has only effect in TreeList mode.

Defines how the tree list widget is resized when the dialog is resized horizontally. By default the tree list keeps its width when the dialog becomes wider.

Parameters

state The resize mode. If false (default) the tree list keeps its current width when the dialog becomes wider.

Definition at line 1037 of file kdialogbase.cpp.

◆ showButton()

void KDialogBase::showButton	(	ButtonCode	id,
		bool	state
	)

Hide or display a general action button.

Only buttons that have been created in the constructor can be displayed. This method will not create a new button.

Parameters

id	Button identifier.
state	true display the button(s).

Definition at line 866 of file kdialogbase.cpp.

◆ showButtonApply()

void KDialogBase::showButtonApply ( bool state )

Hide or display the Apply button.

The Apply button must have been created in the constructor to be displayed.

Parameters

state true display the button(s).

Definition at line 882 of file kdialogbase.cpp.

◆ showButtonCancel()

void KDialogBase::showButtonCancel ( bool state )

Hide or display the Cancel button.

The Cancel button must have been created in the constructor to be displayed.

Parameters

state true display the button(s).

Definition at line 888 of file kdialogbase.cpp.

◆ showButtonOK()

void KDialogBase::showButtonOK ( bool state )

Hide or display the OK button.

The OK button must have been created in the constructor to be displayed.

Parameters

state If true, display the button(s).

Definition at line 876 of file kdialogbase.cpp.

◆ showPage()

bool KDialogBase::showPage ( int index )

Sets the page with index to be displayed.

This method will only work when the dialog is using the predefined shape of TreeList, IconList or Tabbed.

Parameters

index Index of the page to be shown.

Returns: true if the page is shown, false otherwise.

Definition at line 1470 of file kdialogbase.cpp.

◆ showTile()

void KDialogBase::showTile ( bool state )

Enable hiding of the background tile (if any).

Parameters

state true will make the tile visible.

Definition at line 1711 of file kdialogbase.cpp.

◆ slotApply

void KDialogBase::slotApply ( )

protectedvirtualslot

Activated when the Apply button has been clicked.

Definition at line 1171 of file kdialogbase.cpp.

◆ slotCancel

void KDialogBase::slotCancel ( void )

protectedvirtualslot

Activated when the Cancel button has been clicked.

The TQDialog::reject() is activated in regular mode and TQDialog::done( Cancel ) when in message box mode.

Definition at line 1215 of file kdialogbase.cpp.

◆ slotClose

void KDialogBase::slotClose ( void )

protectedvirtualslot

Activated when the Close button has been clicked.

The TQDialog::reject() is activated.

Definition at line 1222 of file kdialogbase.cpp.

◆ slotDefault

void KDialogBase::slotDefault ( )

protectedvirtualslot

Activated when the Default button has been clicked.

Definition at line 1102 of file kdialogbase.cpp.

◆ slotDelayedDestruct

void KDialogBase::slotDelayedDestruct ( )

protectedslot

Deletes the dialog immediately.

If you want to delete the dialog delayed use delayedDestruct() or TQObject::deleteLater().

Attention: Do no use connect this slot to signals from user actions!

Definition at line 288 of file kdialogbase.cpp.

◆ slotDetails

void KDialogBase::slotDetails ( )

protectedvirtualslot

Activated when the Details button has been clicked.

See also: detailsClicked(bool)

Definition at line 1107 of file kdialogbase.cpp.

◆ slotHelp

void KDialogBase::slotHelp ( )

protectedvirtualslot

Activated when the Help button has been clicked.

If a help text has been defined, the help system will be activated.

Definition at line 1094 of file kdialogbase.cpp.

◆ slotNo

void KDialogBase::slotNo ( )

protectedvirtualslot

Activated when the Yes button has been clicked.

The TQDialog::done( No ) is activated.

Definition at line 1208 of file kdialogbase.cpp.

◆ slotOk

void KDialogBase::slotOk ( void )

protectedvirtualslot

Activated when the Ok button has been clicked.

The TQDialog::accept() is activated.

Definition at line 1164 of file kdialogbase.cpp.

◆ slotTry

void KDialogBase::slotTry ( )

protectedvirtualslot

Activated when the Try button has been clicked.

Definition at line 1177 of file kdialogbase.cpp.

◆ slotUser1

void KDialogBase::slotUser1 ( void )

protectedvirtualslot

Activated when the User1 button has been clicked.

Definition at line 1195 of file kdialogbase.cpp.

◆ slotUser2

void KDialogBase::slotUser2 ( void )

protectedvirtualslot

Activated when the User2 button has been clicked.

Definition at line 1189 of file kdialogbase.cpp.

◆ slotUser3

void KDialogBase::slotUser3 ( void )

protectedvirtualslot

Activated when the User3 button has been clicked.

Definition at line 1183 of file kdialogbase.cpp.

◆ slotYes

void KDialogBase::slotYes ( )

protectedvirtualslot

Activated when the Yes button has been clicked.

The TQDialog::done( Yes ) is activated.

Definition at line 1201 of file kdialogbase.cpp.

◆ tryClicked

void KDialogBase::tryClicked ( )

signal

The Try button was pressed.

This signal is only emitted if slotTry() is not replaced.

◆ unfoldTreeList()

void KDialogBase::unfoldTreeList ( bool persist = false )

This function has only effect in TreeList mode.

This tells the TreeList to unfold the whole tree so that all entries are visible.

If the list is empty when you call this method newly created entries will not automatically be opened. If the persist flag is set opened entries cannot be closed again, though.

Parameters

persist If true the tree always stays unfolded.

Since: 3.2

Definition at line 1061 of file kdialogbase.cpp.

◆ updateBackground

void KDialogBase::updateBackground ( )

slot

This method is called automatically whenever the background has changed.

You do not need to use this method.

Definition at line 1685 of file kdialogbase.cpp.

◆ updateGeometry

void KDialogBase::updateGeometry ( )

protectedslot

Updates the margins and spacings.

Definition at line 1542 of file kdialogbase.cpp.

◆ user1Clicked

void KDialogBase::user1Clicked ( )

signal

The User1 button was pressed.

This signal is only emitted if slotUser1() is not replaced.

◆ user2Clicked

void KDialogBase::user2Clicked ( )

signal

The User2 button was pressed.

This signal is only emitted if slotUser2() is not replaced.

◆ user3Clicked

void KDialogBase::user3Clicked ( )

signal

The User3 button was pressed.

This signal is only emitted if slotUser3() is not replaced.

◆ yesClicked

void KDialogBase::yesClicked ( )

signal

The Yes button was pressed.

This signal is only emitted if slotYes() is not replaced.

The documentation for this class was generated from the following files:

tdeui

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Slots

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ ButtonCode

◆ DialogType

Constructor & Destructor Documentation

◆ KDialogBase() [1/4]

◆ KDialogBase() [2/4]

◆ KDialogBase() [3/4]

◆ KDialogBase() [4/4]

◆ ~KDialogBase()

Member Function Documentation

◆ aboutToShowDetails

◆ aboutToShowPage

◆ actionButton()

◆ activePageIndex()

◆ addButtonBelowList() [1/2]

◆ addButtonBelowList() [2/2]

◆ addGridPage() [1/2]

◆ addGridPage() [2/2]

◆ addHBoxPage() [1/2]

◆ addHBoxPage() [2/2]

◆ addPage() [1/2]

◆ addPage() [2/2]

◆ addVBoxPage() [1/2]

◆ addVBoxPage() [2/2]

◆ addWidgetBelowList()

◆ adjustSize()

◆ apply

◆ applyClicked

◆ applyPressed

◆ backgroundChanged

◆ backgroundTile()

◆ calculateSize()

◆ cancel

◆ cancelClicked

◆ closeClicked

◆ closeEvent()

◆ configDialogSize() [1/2]

◆ configDialogSize() [2/2]

◆ defaultClicked

◆ delayedDestruct

◆ disableResize()

◆ enableButton

◆ enableButtonApply

◆ enableButtonCancel

◆ enableButtonOK

◆ enableButtonSeparator()

◆ enableLinkedHelp

◆ finished

◆ getBackgroundTile()

◆ getBorderWidths()

◆ getContentsRect()

◆ haveBackgroundTile()

◆ helpClicked

◆ helpClickedSlot

◆ helpLinkText()

◆ hidden

◆ hideEvent()

◆ incInitialSize()

◆ keyPressEvent()

◆ mainWidget()

◆ makeGridMainWidget()

◆ makeHBoxMainWidget()

◆ makeMainWidget()

◆ makeVBoxMainWidget()

◆ noClicked

◆ okClicked

◆ pageIndex()

◆ plainPage()

◆ saveDialogSize() [1/2]

◆ saveDialogSize() [2/2]

◆ setBackgroundTile()
