#include <kclientsocketbase.h>

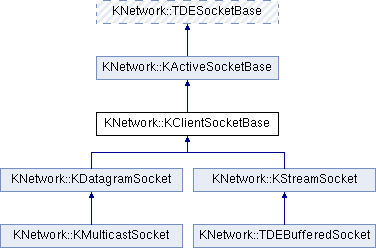

Inheritance diagram for KNetwork::KClientSocketBase:

Public Types
enum	SocketState { Idle , HostLookup , HostFound , Bound , Connecting , Open , Closing , Unconnected = Bound , Connected = Open , Connection = Open }

Public Types inherited from KNetwork::TDESocketBase
enum	SocketOptions { Blocking = 0x01 , AddressReuseable = 0x02 , IPv6Only = 0x04 , Keepalive = 0x08 , Broadcast = 0x10 }

enum	SocketError { NoError = 0 , LookupFailure , AddressInUse , AlreadyCreated , AlreadyBound , AlreadyConnected , NotConnected , NotBound , NotCreated , WouldBlock , ConnectionRefused , ConnectionTimedOut , InProgress , NetFailure , NotSupported , Timeout , UnknownError , RemotelyDisconnected }

Signals
void	stateChanged (int newstate)

void	gotError (int code)

void	hostFound ()

void	bound (const KResolverEntry &local)

void	aboutToConnect (const KResolverEntry &remote, bool &skip)

void	connected (const KResolverEntry &remote)

void	closed ()

void	readyRead ()

void	readyWrite ()

Public Member Functions
	KClientSocketBase (TQObject parent, const char name)

virtual	~KClientSocketBase ()

SocketState	state () const

KResolver &	peerResolver () const

const KResolverResults &	peerResults () const

KResolver &	localResolver () const

const KResolverResults &	localResults () const

void	setResolutionEnabled (bool enable)

void	setFamily (int families)

virtual bool	lookup ()

virtual bool	bind (const TQString &node=TQString::null, const TQString &service=TQString::null)=0

virtual bool	bind (const KResolverEntry &address)

virtual bool	connect (const TQString &node=TQString::null, const TQString &service=TQString::null)=0

virtual bool	connect (const KResolverEntry &address)

void	connectToHost (const TQString &host, TQ_UINT16 port)

virtual bool	disconnect ()

virtual bool	open (int)

virtual void	close ()

virtual void	flush ()

virtual TQ_LONG	bytesAvailable () const

virtual TQ_LONG	waitForMore (int msecs, bool *timeout=0L)

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen)

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen)

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len)

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len, const TDESocketAddress &to)

virtual TDESocketAddress	localAddress () const

virtual TDESocketAddress	peerAddress () const

bool	emitsReadyRead () const

virtual void	enableRead (bool enable)

bool	emitsReadyWrite () const

virtual void	enableWrite (bool enable)

Public Member Functions inherited from KNetwork::KActiveSocketBase
	KActiveSocketBase ()

virtual	~KActiveSocketBase ()

virtual bool	bind (const KResolverEntry &address)=0

virtual bool	connect (const KResolverEntry &address)=0

virtual bool	disconnect ()=0

virtual Offset	size () const

virtual Offset	at () const

virtual bool	at (Offset)

virtual bool	atEnd () const

virtual TQ_LONG	bytesAvailable () const =0

virtual TQ_LONG	waitForMore (int msecs, bool *timeout=0L)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG len)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len, const TDESocketAddress &to)=0

virtual int	getch ()

virtual int	putch (int ch)

virtual int	ungetch (int)

virtual TDESocketAddress	localAddress () const =0

virtual TDESocketAddress	peerAddress () const =0

Public Member Functions inherited from KNetwork::TDESocketBase
	TDESocketBase ()

virtual	~TDESocketBase ()

virtual bool	setBlocking (bool enable)

bool	blocking () const

virtual bool	setAddressReuseable (bool enable)

bool	addressReuseable () const

virtual bool	setIPv6Only (bool enable)

bool	isIPv6Only () const

virtual bool	setBroadcast (bool enable)

bool	broadcast () const

TDESocketDevice *	socketDevice () const

virtual void	setSocketDevice (TDESocketDevice *device)

int	setRequestedCapabilities (int add, int remove=0)

SocketError	error () const

TQString	errorString () const

TQMutex *	mutex () const

Protected Slots
virtual void	slotReadActivity ()

virtual void	slotWriteActivity ()

Protected Member Functions
virtual bool	setSocketOptions (int opts)

void	setState (SocketState state)

virtual void	stateChanging (SocketState newState)

void	copyError ()

Protected Member Functions inherited from KNetwork::KActiveSocketBase
void	setError (int status, SocketError error)

void	resetError ()

Protected Member Functions inherited from KNetwork::TDESocketBase
virtual bool	setSocketOptions (int opts)

virtual int	socketOptions () const

bool	hasDevice () const

void	setError (SocketError error)

Additional Inherited Members
Static Public Member Functions inherited from KNetwork::TDESocketBase
static TQString	errorString (SocketError code)

static bool	isFatalError (int code)

Detailed Description

Abstract client socket class.

This class provides the base functionality for client sockets, such as, and especially, name resolution and signals.

Note: This class is abstract. If you're looking for a normal, client socket class, see KStreamSocket and TDEBufferedSocket

Author: Thiago Macieira thiag.nosp@m.o.ma.nosp@m.cieir.nosp@m.a@kd.nosp@m.email.nosp@m..net

Definition at line 49 of file kclientsocketbase.h.

Member Enumeration Documentation

◆ SocketState

enum KNetwork::KClientSocketBase::SocketState

Socket states.

These are the possible states for a KClientSocketBase:

Idle: socket is not connected
HostLookup: socket is doing host lookup prior to connecting
HostFound: name lookup is complete
Bound: the socket is locally bound
Connecting: socket is attempting connection
Open: socket is open
Connected (=Open): socket is connected
Connection (=Open): yet another name for a connected socket
Closing: socket is shutting down

Whenever the socket state changes, the stateChanged(int) signal will be emitted.

Definition at line 72 of file kclientsocketbase.h.

Constructor & Destructor Documentation

◆ KClientSocketBase()

KClientSocketBase::KClientSocketBase	(	TQObject *	parent,
		const char *	name
	)

Default constructor.

Parameters

parent	the parent TQObject object
name	the name of this object

Definition at line 50 of file kclientsocketbase.cpp.

◆ ~KClientSocketBase()

KClientSocketBase::~KClientSocketBase ( )

virtual

Destructor.

Definition at line 58 of file kclientsocketbase.cpp.

Member Function Documentation

◆ aboutToConnect

void KNetwork::KClientSocketBase::aboutToConnect	(	const KResolverEntry &	remote,
		bool &	skip
	)

signal

This signal is emitted when the socket is about to connect to an address (but before doing so).

The skip parameter can be used to make the loop skip this address. Its value is initially false: change it to true if you want to skip the current address (as given by remote).

This function is also useful if one wants to reset the timeout.

Parameters

remote	the address we're about to connect to
skip	set to true if you want to skip this address

Note: if the connection is successful, the connected signal will be emitted.

◆ bind() [1/2]

bool KClientSocketBase::bind ( const KResolverEntry & address )

virtual

Reimplemented from TDESocketBase.

Connect this socket to this specific address.

Unlike bind(const TQString&, const TQString&) above, this function really does bind the socket. No lookup is performed. The bound signal will be emitted.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KDatagramSocket, and KNetwork::KStreamSocket.

Definition at line 189 of file kclientsocketbase.cpp.

◆ bind() [2/2]

virtual bool KNetwork::KClientSocketBase::bind	(	const TQString &	node = `TQString::null`,
		const TQString &	service = `TQString::null`
	)

pure virtual

Binds this socket to the given nodename and service, or use the default ones if none are given.

Upon successful binding, the bound signal will be emitted. If an error is found, the gotError signal will be emitted.

Note: Due to the internals of the name lookup and binding mechanism, some (if not most) implementations of this function do not actually bind the socket until the connection is requested (see connect). They only set the values for future reference.

This function returns true on success.

Parameters

node	the nodename
service	the service

Implemented in KNetwork::KDatagramSocket, and KNetwork::KStreamSocket.

◆ bound

void KNetwork::KClientSocketBase::bound ( const KResolverEntry & local )

signal

This signal is emitted when the socket successfully binds to an address.

Parameters

local the local address we bound to

◆ bytesAvailable()

TQ_LONG KClientSocketBase::bytesAvailable ( ) const

virtual

Returns the number of bytes available on this socket.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 281 of file kclientsocketbase.cpp.

◆ close()

void KClientSocketBase::close ( )

virtual

Closes the socket.

Reimplemented from TQIODevice.

The closing of the socket causes the emission of the signal closed.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 261 of file kclientsocketbase.cpp.

◆ closed

void KNetwork::KClientSocketBase::closed ( )

signal

This signal is emitted when the socket completes the closing/shut down process.

◆ connect() [1/2]

bool KClientSocketBase::connect ( const KResolverEntry & address )

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KDatagramSocket, and KNetwork::KStreamSocket.

Definition at line 210 of file kclientsocketbase.cpp.

◆ connect() [2/2]

virtual bool KNetwork::KClientSocketBase::connect	(	const TQString &	node = `TQString::null`,
		const TQString &	service = `TQString::null`
	)

pure virtual

Attempts to connect to the these hostname and service, or use the default ones if none are given.

If a connection attempt is already in progress, check on its state and set the error status (NoError or InProgress).

If the blocking mode for this object is on, this function will only return when all the resolved peer addresses have been tried or when a connection is established.

Upon successfully connecting, the connected signal will be emitted. If an error is found, the gotError signal will be emitted.

Note for derived classes:: Derived classes must implement this function. The implementation will set the parameters for the lookup (using the peer KResolver object) and call lookup to start it.

: The implementation should use the hostFound signal to be notified of the completion of the lookup process and then proceed to start the connection itself. Care should be taken regarding the value of blocking flag.

Parameters

node	the nodename
service	the service

Implemented in KNetwork::KDatagramSocket, and KNetwork::KStreamSocket.

◆ connected

void KNetwork::KClientSocketBase::connected ( const KResolverEntry & remote )

signal

This socket is emitted when the socket successfully connects to a remote address.

Parameters

remote the remote address we did connect to

◆ connectToHost()

void KNetwork::KClientSocketBase::connectToHost	(	const TQString &	host,
		TQ_UINT16	port
	)

inline

Deprecated:: This is a convenience function provided to ease migrating from Qt 3.x's TQSocket class.

Definition at line 261 of file kclientsocketbase.h.

◆ copyError()

void KClientSocketBase::copyError ( )

protected

Convenience function to set this object's error code to match that of the socket device.

Definition at line 472 of file kclientsocketbase.cpp.

◆ disconnect()

bool KClientSocketBase::disconnect ( )

virtual

Disconnects the socket.

Note that not all socket types can disconnect.

Implements KNetwork::KActiveSocketBase.

Definition at line 244 of file kclientsocketbase.cpp.

◆ emitsReadyRead()

bool KClientSocketBase::emitsReadyRead ( ) const

Returns true if the readyRead signal is set to be emitted.

Definition at line 383 of file kclientsocketbase.cpp.

◆ emitsReadyWrite()

bool KClientSocketBase::emitsReadyWrite ( ) const

Returns true if the readyWrite signal is set to be emitted.

Definition at line 398 of file kclientsocketbase.cpp.

◆ enableRead()

void KClientSocketBase::enableRead ( bool enable )

virtual

Enables the emission of the readyRead signal.

By default, this signal is enabled.

Parameters

enable whether to enable the signal

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 388 of file kclientsocketbase.cpp.

◆ enableWrite()

void KClientSocketBase::enableWrite ( bool enable )

virtual

Enables the emission of the readyWrite signal.

By default, this signal is disabled.

Parameters

enable whether to enable the signal

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 403 of file kclientsocketbase.cpp.

◆ flush()

virtual void KNetwork::KClientSocketBase::flush ( )

inlinevirtual

This call is not supported on sockets.

Reimplemented from TQIODevice.

Definition at line 289 of file kclientsocketbase.h.

◆ gotError

void KNetwork::KClientSocketBase::gotError ( int code )

signal

This signal is emitted when this object finds an error.

The code parameter contains the error code that can also be found by calling error.

◆ hostFound

void KNetwork::KClientSocketBase::hostFound ( )

signal

This signal is emitted when the lookup is successfully completed.

◆ localAddress()

TDESocketAddress KClientSocketBase::localAddress ( ) const

virtual

Returns the local socket address.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Definition at line 373 of file kclientsocketbase.cpp.

◆ localResolver()

KResolver & KClientSocketBase::localResolver ( ) const

Returns the internal KResolver object used for looking up the local host name and service.

This can be used to set extra options to the lookup process other than the default values, as well as obtaining the error codes in case of lookup failure.

Definition at line 101 of file kclientsocketbase.cpp.

◆ localResults()

const KResolverResults & KClientSocketBase::localResults ( ) const

Returns the internal list of resolved results for the local address.

Definition at line 106 of file kclientsocketbase.cpp.

◆ lookup()

bool KClientSocketBase::lookup ( )

virtual

Starts the lookup for peer and local hostnames as well as their services.

If the blocking mode for this object is on, this function will wait for the lookup results to be available (by calling the KResolver::wait method on the resolver objects).

When the lookup is done, the signal hostFound will be emitted (only once, even if we're doing a double lookup). If the lookup failed (for any of the two lookups) the gotError signal will be emitted with the appropriate error condition (see TDESocketBase::SocketError).

This function returns true on success and false on error. Note that this is not the lookup result!

Definition at line 131 of file kclientsocketbase.cpp.

◆ open()

virtual bool KNetwork::KClientSocketBase::open ( int )

inlinevirtual

Opens the socket.

Reimplemented from TQIODevice.

You should not call this function; instead, use connect

Definition at line 275 of file kclientsocketbase.h.

◆ peekBlock() [1/2]

TQ_LONG KClientSocketBase::peekBlock	(	char *	data,
		TQ_ULONG	maxlen
	)

virtual

Peeks data from the socket.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 325 of file kclientsocketbase.cpp.

◆ peekBlock() [2/2]

TQ_LONG KClientSocketBase::peekBlock	(	char *	data,
		TQ_ULONG	maxlen,
		TDESocketAddress &	from
	)

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Peeks data from the socket.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 337 of file kclientsocketbase.cpp.

◆ peerAddress()

TDESocketAddress KClientSocketBase::peerAddress ( ) const

virtual

Returns the peer socket address.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Definition at line 378 of file kclientsocketbase.cpp.

◆ peerResolver()

KResolver & KClientSocketBase::peerResolver ( ) const

Returns the internal KResolver object used for looking up the peer host name and service.

This can be used to set extra options to the lookup process other than the default values, as well as obtaining the error codes in case of lookup failure.

Definition at line 91 of file kclientsocketbase.cpp.

◆ peerResults()

const KResolverResults & KClientSocketBase::peerResults ( ) const

Returns the internal list of resolved results for the peer address.

Definition at line 96 of file kclientsocketbase.cpp.

◆ readBlock() [1/2]

TQ_LONG KClientSocketBase::readBlock	(	char *	data,
		TQ_ULONG	maxlen
	)

virtual

Reads data from a socket.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 301 of file kclientsocketbase.cpp.

◆ readBlock() [2/2]

TQ_LONG KClientSocketBase::readBlock	(	char *	data,
		TQ_ULONG	maxlen,
		TDESocketAddress &	from
	)

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Reads data from a socket.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 313 of file kclientsocketbase.cpp.

◆ readyRead

void KNetwork::KClientSocketBase::readyRead ( )

signal

This signal is emitted whenever the socket is ready for reading – i.e., there is data to be read in the buffers.

The subsequent read operation is guaranteed to be non-blocking.

You can toggle the emission of this signal with the enableRead function. This signal is by default enabled.

◆ readyWrite

void KNetwork::KClientSocketBase::readyWrite ( )

signal

This signal is emitted whenever the socket is ready for writing – i.e., whenever there's space available in the buffers to receive more data.

The subsequent write operation is guaranteed to be non-blocking.

You can toggle the emission of this signal with the enableWrite function. This signal is by default disabled. You will want to disable this signal after the first reception, since it'll probably fire at every event loop.

◆ setFamily()

void KClientSocketBase::setFamily ( int families )

Sets the allowed families for the resolutions.

Parameters

families the families that we want/accept

See also: KResolver::SocketFamilies for possible values

Definition at line 125 of file kclientsocketbase.cpp.

◆ setResolutionEnabled()

void KClientSocketBase::setResolutionEnabled ( bool enable )

Enables or disables name resolution.

If this flag is set to true, bind and connect operations will trigger name lookup operations (i.e., converting a hostname into its binary form). If the flag is set to false, those operations will instead try to convert a string representation of an address without attempting name resolution.

This is useful, for instance, when IP addresses are in their string representation (such as "1.2.3.4") or come from other sources like TDESocketAddress.

Parameters

enable whether to enable

Definition at line 111 of file kclientsocketbase.cpp.

◆ setSocketOptions()

bool KClientSocketBase::setSocketOptions ( int opts )

protectedvirtual

Sets the socket options.

Reimplemented from TDESocketBase.

Reimplemented from KNetwork::TDESocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 75 of file kclientsocketbase.cpp.

◆ setState()

void KClientSocketBase::setState ( SocketState state )

protected

Sets the socket state to state.

This function does not emit the stateChanged signal.

Definition at line 69 of file kclientsocketbase.cpp.

◆ slotReadActivity

void KClientSocketBase::slotReadActivity ( )

protectedvirtualslot

This slot is connected to the read notifier's signal meaning the socket can read more data.

The default implementation only emits the readyRead signal.

Override if your class requires processing of incoming data.

Definition at line 413 of file kclientsocketbase.cpp.

◆ slotWriteActivity

void KClientSocketBase::slotWriteActivity ( )

protectedvirtualslot

This slot is connected to the write notifier's signal meaning the socket can write more data.

The default implementation only emits the readyWrite signal.

Override if your class writes data from another source (like a buffer).

Definition at line 419 of file kclientsocketbase.cpp.

◆ state()

KClientSocketBase::SocketState KClientSocketBase::state ( ) const

Returns the current state for this socket.

See also: SocketState

Definition at line 64 of file kclientsocketbase.cpp.

◆ stateChanged

void KNetwork::KClientSocketBase::stateChanged ( int newstate )

signal

This signal is emitted whenever the socket state changes.

Note: do not delete this object inside the slot called by this signal.

Parameters

newstate the new state of the socket object

◆ stateChanging()

void KClientSocketBase::stateChanging ( SocketState newState )

protectedvirtual

This function is called by setState whenever the state changes.

You should override it if you need to specify any actions to be done when the state changes.

The default implementation acts for these states only:

Connected: it sets up the socket notifiers to fire readyRead and readyWrite signals.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 448 of file kclientsocketbase.cpp.

◆ waitForMore()

TQ_LONG KClientSocketBase::waitForMore	(	int	msecs,
		bool *	timeout = `0L`
	)

virtual

Waits for more data.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 289 of file kclientsocketbase.cpp.

◆ writeBlock() [1/2]

TQ_LONG KClientSocketBase::writeBlock	(	const char *	data,
		TQ_ULONG	len
	)

virtual

Writes data to the socket.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket.

Definition at line 349 of file kclientsocketbase.cpp.

◆ writeBlock() [2/2]

TQ_LONG KClientSocketBase::writeBlock	(	const char *	data,
		TQ_ULONG	len,
		const TDESocketAddress &	to
	)

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Writes data to the socket.

Reimplemented from TDESocketBase.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::TDEBufferedSocket, and KNetwork::KDatagramSocket.

Definition at line 361 of file kclientsocketbase.cpp.

The documentation for this class was generated from the following files:

tdecore

Public Types

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ SocketState

Constructor & Destructor Documentation

◆ KClientSocketBase()

◆ ~KClientSocketBase()

Member Function Documentation

◆ aboutToConnect

◆ bind() [1/2]

◆ bind() [2/2]

◆ bound

◆ bytesAvailable()

◆ close()

◆ closed

◆ connect() [1/2]

◆ connect() [2/2]

◆ connected

◆ connectToHost()

◆ copyError()

◆ disconnect()

◆ emitsReadyRead()

◆ emitsReadyWrite()

◆ enableRead()

◆ enableWrite()

◆ flush()

◆ gotError

◆ hostFound

◆ localAddress()

◆ localResolver()

◆ localResults()

◆ lookup()

◆ open()

◆ peekBlock() [1/2]

◆ peekBlock() [2/2]

◆ peerAddress()

◆ peerResolver()

◆ peerResults()

◆ readBlock() [1/2]

◆ readBlock() [2/2]

◆ readyRead

◆ readyWrite

◆ setFamily()

◆ setResolutionEnabled()

◆ setSocketOptions()

◆ setState()

◆ slotReadActivity

◆ slotWriteActivity

◆ state()

◆ stateChanged

◆ stateChanging()

◆ waitForMore()

◆ writeBlock() [1/2]

◆ writeBlock() [2/2]

tdecore

tdecore
