#include <tdesocketbase.h>

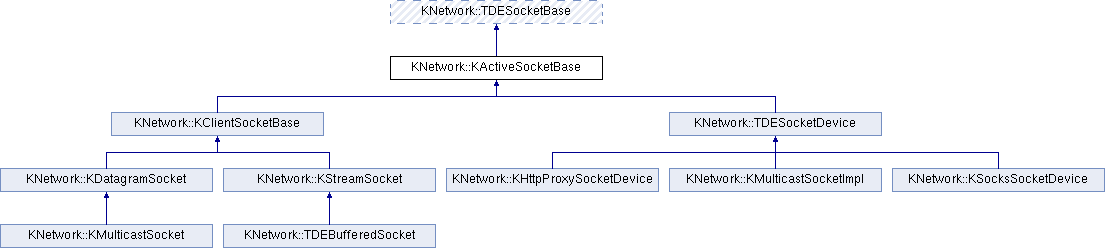

Inheritance diagram for KNetwork::KActiveSocketBase:

Public Member Functions
	KActiveSocketBase ()

virtual	~KActiveSocketBase ()

virtual bool	bind (const KResolverEntry &address)=0

virtual bool	connect (const KResolverEntry &address)=0

virtual bool	disconnect ()=0

virtual Offset	size () const

virtual Offset	at () const

virtual bool	at (Offset)

virtual bool	atEnd () const

virtual TQ_LONG	bytesAvailable () const =0

virtual TQ_LONG	waitForMore (int msecs, bool *timeout=0L)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG len)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len, const TDESocketAddress &to)=0

virtual int	getch ()

virtual int	putch (int ch)

virtual int	ungetch (int)

virtual TDESocketAddress	localAddress () const =0

virtual TDESocketAddress	peerAddress () const =0

Public Member Functions inherited from KNetwork::TDESocketBase
	TDESocketBase ()

virtual	~TDESocketBase ()

virtual bool	setBlocking (bool enable)

bool	blocking () const

virtual bool	setAddressReuseable (bool enable)

bool	addressReuseable () const

virtual bool	setIPv6Only (bool enable)

bool	isIPv6Only () const

virtual bool	setBroadcast (bool enable)

bool	broadcast () const

TDESocketDevice *	socketDevice () const

virtual void	setSocketDevice (TDESocketDevice *device)

int	setRequestedCapabilities (int add, int remove=0)

SocketError	error () const

TQString	errorString () const

TQMutex *	mutex () const

Protected Member Functions
void	setError (int status, SocketError error)

void	resetError ()

Protected Member Functions inherited from KNetwork::TDESocketBase
virtual bool	setSocketOptions (int opts)

virtual int	socketOptions () const

bool	hasDevice () const

void	setError (SocketError error)

Additional Inherited Members
Public Types inherited from KNetwork::TDESocketBase
enum	SocketOptions { Blocking = 0x01 , AddressReuseable = 0x02 , IPv6Only = 0x04 , Keepalive = 0x08 , Broadcast = 0x10 }

enum	SocketError { NoError = 0 , LookupFailure , AddressInUse , AlreadyCreated , AlreadyBound , AlreadyConnected , NotConnected , NotBound , NotCreated , WouldBlock , ConnectionRefused , ConnectionTimedOut , InProgress , NetFailure , NotSupported , Timeout , UnknownError , RemotelyDisconnected }

Static Public Member Functions inherited from KNetwork::TDESocketBase
static TQString	errorString (SocketError code)

static bool	isFatalError (int code)

Detailed Description

Abstract class for active sockets.

This class provides the standard interfaces for active sockets, i.e., sockets that are used to connect to external addresses.

Author: Thiago Macieira thiag.nosp@m.o.ma.nosp@m.cieir.nosp@m.a@kd.nosp@m.email.nosp@m..net

Definition at line 443 of file tdesocketbase.h.

Constructor & Destructor Documentation

◆ KActiveSocketBase()

KActiveSocketBase::KActiveSocketBase ( )

Constructor.

Definition at line 283 of file tdesocketbase.cpp.

◆ ~KActiveSocketBase()

KActiveSocketBase::~KActiveSocketBase ( )

virtual

Destructor.

Definition at line 287 of file tdesocketbase.cpp.

Member Function Documentation

◆ at() [1/2]

virtual Offset KNetwork::KActiveSocketBase::at ( ) const

inlinevirtual

This call is not supported on sockets.

Reimplemented from TQIODevice. This will always return 0.

Definition at line 514 of file tdesocketbase.h.

◆ at() [2/2]

virtual bool KNetwork::KActiveSocketBase::at ( Offset )

inlinevirtual

This call is not supported on sockets.

Reimplemented from TQIODevice. This will always return false.

Definition at line 521 of file tdesocketbase.h.

◆ atEnd()

virtual bool KNetwork::KActiveSocketBase::atEnd ( ) const

inlinevirtual

This call is not supported on sockets.

Reimplemented from TQIODevice. This will always return true.

Definition at line 528 of file tdesocketbase.h.

◆ bind()

virtual bool KNetwork::KActiveSocketBase::bind ( const KResolverEntry & address )

pure virtual

Binds this socket to the given address.

The socket will be constructed with the address family, socket type and protocol as those given in the address object.

Parameters

address the address to bind to

Returns: true if the binding was successful, false otherwise

Implemented in KNetwork::KStreamSocket, KNetwork::KDatagramSocket, KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, and KNetwork::KClientSocketBase.

◆ bytesAvailable()

virtual TQ_LONG KNetwork::KActiveSocketBase::bytesAvailable ( ) const

pure virtual

Returns the number of bytes available for reading without blocking.

Implemented in KNetwork::TDESocketDevice, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

◆ connect()

virtual bool KNetwork::KActiveSocketBase::connect ( const KResolverEntry & address )

pure virtual

Connect to a remote host.

This will make this socket try to connect to the remote host. If the socket is not yet created, it will be created using the address family, socket type and protocol specified in the address object.

If this function returns with error InProgress, calling it again with the same address after a time will cause it to test if the connection has succeeded in the mean time.

Parameters

address the address to connect to

Returns: true if the connection was successful or has been successfully queued; false if an error occurred.

Implemented in KNetwork::KStreamSocket, KNetwork::KDatagramSocket, KNetwork::TDESocketDevice, KNetwork::KMulticastSocketImpl, KNetwork::KSocksSocketDevice, KNetwork::KHttpProxySocketDevice, and KNetwork::KClientSocketBase.

◆ disconnect()

virtual bool KNetwork::KActiveSocketBase::disconnect ( )

pure virtual

Disconnects this socket from a connection, if possible.

If this socket was connected to an endpoint, the connection is severed, but the socket is not closed. If the socket wasn't connected, this function does nothing.

If the socket hadn't yet been created, this function does nothing either.

Not all socket types can disconnect. Most notably, only connectionless datagram protocols such as UDP support this operation.

Returns: true if the socket is now disconnected or false on error.

Implemented in KNetwork::TDESocketDevice, and KNetwork::KClientSocketBase.

◆ getch()

int KActiveSocketBase::getch ( )

virtual

Reads one character from the socket.

Reimplementation from TQIODevice. See TQIODevice::getch for more information.

Definition at line 291 of file tdesocketbase.cpp.

◆ localAddress()

virtual TDESocketAddress KNetwork::KActiveSocketBase::localAddress ( ) const

pure virtual

Returns this socket's local address.

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, and KNetwork::KClientSocketBase.

◆ peekBlock() [1/2]

virtual TQ_LONG KNetwork::KActiveSocketBase::peekBlock	(	char *	data,
		TQ_ULONG	maxlen
	)

pure virtual

Peeks the data in the socket.

This call will allow you to peek the data to be received without actually receiving it – that is, it will be available for further peekings and for the next read call.

Parameters

data	where to write the peeked data to
maxlen	the maximum number of bytes to peek

Returns: the actual number of bytes copied into data

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

◆ peekBlock() [2/2]

virtual TQ_LONG KNetwork::KActiveSocketBase::peekBlock	(	char *	data,
		TQ_ULONG	maxlen,
		TDESocketAddress &	from
	)

pure virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Peeks the data in the socket and the source address.

This call will allow you to peek the data to be received without actually receiving it – that is, it will be available for further peekings and for the next read call.

Parameters

data	where to write the peeked data to
maxlen	the maximum number of bytes to peek
from	the address of the sender will be stored here

Returns: the actual number of bytes copied into data

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

◆ peerAddress()

virtual TDESocketAddress KNetwork::KActiveSocketBase::peerAddress ( ) const

pure virtual

Return this socket's peer address, if we are connected.

If the address cannot be retrieved, the returned object will contain an invalid address.

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, KNetwork::KHttpProxySocketDevice, and KNetwork::KClientSocketBase.

◆ putch()

int KActiveSocketBase::putch ( int ch )

virtual

Writes one character to the socket.

Reimplementation from TQIODevice. See TQIODevice::putch for more information.

Definition at line 300 of file tdesocketbase.cpp.

◆ readBlock() [1/2]

virtual TQ_LONG KNetwork::KActiveSocketBase::readBlock	(	char *	data,
		TQ_ULONG	len
	)

pure virtual

Reads data from the socket.

Reimplemented from TQIODevice. See TQIODevice::readBlock for more information.

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

◆ readBlock() [2/2]

virtual TQ_LONG KNetwork::KActiveSocketBase::readBlock	(	char *	data,
		TQ_ULONG	maxlen,
		TDESocketAddress &	from
	)

pure virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Receives data and the source address.

This call will read data in the socket and will also place the sender's address in from object.

Parameters

data	where to write the read data to
maxlen	the maximum number of bytes to read
from	the address of the sender will be stored here

Returns: the actual number of bytes read

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

◆ resetError()

void KActiveSocketBase::resetError ( )

protected

Resets the socket error code and the I/O Device's status.

Definition at line 315 of file tdesocketbase.cpp.

◆ setError()

void KActiveSocketBase::setError	(	int	status,
		SocketError	error
	)

protected

Sets the socket's error code and the I/O Device's status.

Parameters

status	the I/O Device status
error	the error code

Definition at line 309 of file tdesocketbase.cpp.

◆ size()

virtual Offset KNetwork::KActiveSocketBase::size ( ) const

inlinevirtual

This call is not supported on sockets.

Reimplemented from TQIODevice. This will always return 0.

Definition at line 507 of file tdesocketbase.h.

◆ ungetch()

virtual int KNetwork::KActiveSocketBase::ungetch ( int )

inlinevirtual

This call is not supported on sockets.

Reimplemented from TQIODevice. This will always return -1;

Definition at line 635 of file tdesocketbase.h.

◆ waitForMore()

virtual TQ_LONG KNetwork::KActiveSocketBase::waitForMore	(	int	msecs,
		bool *	timeout = `0L`
	)

pure virtual

Waits up to msecs for more data to be available on this socket.

If msecs is -1, this call will block indefinetely until more data is indeed available; if it's 0, this function returns immediately.

If timeout is not NULL, this function will set it to indicate if a timeout occurred.

Returns: the number of bytes available

Implemented in KNetwork::TDESocketDevice, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

◆ writeBlock() [1/2]

virtual TQ_LONG KNetwork::KActiveSocketBase::writeBlock	(	const char *	data,
		TQ_ULONG	len
	)

pure virtual

Writes the given data to the socket.

Reimplemented from TQIODevice. See TQIODevice::writeBlock for more information.

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

◆ writeBlock() [2/2]

virtual TQ_LONG KNetwork::KActiveSocketBase::writeBlock	(	const char *	data,
		TQ_ULONG	len,
		const TDESocketAddress &	to
	)

pure virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Writes the given data to the destination address.

Note that not all socket connections allow sending data to different addresses than the one the socket is connected to.

Parameters

data	the data to write
len	the length of the data
to	the address to send to

Returns: the number of bytes actually sent

Implemented in KNetwork::TDESocketDevice, KNetwork::KSocksSocketDevice, KNetwork::KDatagramSocket, KNetwork::KClientSocketBase, and KNetwork::TDEBufferedSocket.

The documentation for this class was generated from the following files:
