#include <tdesocketdevice.h>

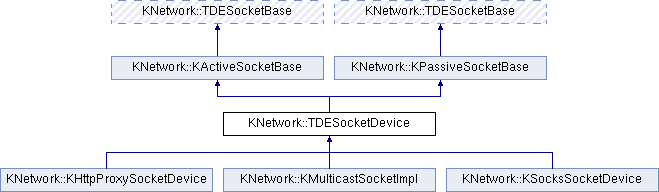

Inheritance diagram for KNetwork::TDESocketDevice:

Public Types
enum	Capabilities { CanConnectString = 0x01 , CanBindString = 0x02 , CanNotBind = 0x04 , CanNotListen = 0x08 , CanMulticast = 0x10 , CanNotUseDatagrams = 0x20 }

Public Types inherited from KNetwork::TDESocketBase
enum	SocketOptions { Blocking = 0x01 , AddressReuseable = 0x02 , IPv6Only = 0x04 , Keepalive = 0x08 , Broadcast = 0x10 }

enum	SocketError { NoError = 0 , LookupFailure , AddressInUse , AlreadyCreated , AlreadyBound , AlreadyConnected , NotConnected , NotBound , NotCreated , WouldBlock , ConnectionRefused , ConnectionTimedOut , InProgress , NetFailure , NotSupported , Timeout , UnknownError , RemotelyDisconnected }

Public Member Functions
	TDESocketDevice (const TDESocketBase *=0L)

	TDESocketDevice (int fd)

virtual	~TDESocketDevice ()

int	socket () const

virtual int	capabilities () const

virtual bool	setSocketOptions (int opts)

virtual bool	open (int mode)

virtual void	close ()

virtual void	flush ()

virtual bool	create (int family, int type, int protocol)

bool	create (const KResolverEntry &address)

virtual bool	bind (const KResolverEntry &address)

virtual bool	listen (int backlog=5)

virtual bool	connect (const KResolverEntry &address)

virtual TDESocketDevice *	accept ()

virtual bool	disconnect ()

virtual TQ_LONG	bytesAvailable () const

virtual TQ_LONG	waitForMore (int msecs, bool *timeout=0L)

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen)

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen)

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len)

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len, const TDESocketAddress &to)

virtual TDESocketAddress	localAddress () const

virtual TDESocketAddress	peerAddress () const

virtual TDESocketAddress	externalAddress () const

TQSocketNotifier *	readNotifier () const

TQSocketNotifier *	writeNotifier () const

TQSocketNotifier *	exceptionNotifier () const

virtual bool	poll (bool input, bool output, bool exception=0L, int timeout=-1, bool timedout=0L)

bool	poll (int timeout=-1, bool *timedout=0L)

Public Member Functions inherited from KNetwork::KActiveSocketBase
	KActiveSocketBase ()

virtual	~KActiveSocketBase ()

virtual bool	bind (const KResolverEntry &address)=0

virtual bool	connect (const KResolverEntry &address)=0

virtual bool	disconnect ()=0

virtual Offset	size () const

virtual Offset	at () const

virtual bool	at (Offset)

virtual bool	atEnd () const

virtual TQ_LONG	bytesAvailable () const =0

virtual TQ_LONG	waitForMore (int msecs, bool *timeout=0L)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG len)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len, const TDESocketAddress &to)=0

virtual int	getch ()

virtual int	putch (int ch)

virtual int	ungetch (int)

virtual TDESocketAddress	localAddress () const =0

virtual TDESocketAddress	peerAddress () const =0

Public Member Functions inherited from KNetwork::TDESocketBase
	TDESocketBase ()

virtual	~TDESocketBase ()

virtual bool	setBlocking (bool enable)

bool	blocking () const

virtual bool	setAddressReuseable (bool enable)

bool	addressReuseable () const

virtual bool	setIPv6Only (bool enable)

bool	isIPv6Only () const

virtual bool	setBroadcast (bool enable)

bool	broadcast () const

TDESocketDevice *	socketDevice () const

virtual void	setSocketDevice (TDESocketDevice *device)

int	setRequestedCapabilities (int add, int remove=0)

SocketError	error () const

TQString	errorString () const

TQMutex *	mutex () const

Public Member Functions inherited from KNetwork::KPassiveSocketBase
	KPassiveSocketBase ()

virtual	~KPassiveSocketBase ()

virtual bool	bind (const KResolverEntry &address)=0

virtual bool	listen (int backlog)=0

virtual void	close ()=0

virtual KActiveSocketBase *	accept ()=0

virtual TDESocketAddress	localAddress () const =0

virtual TDESocketAddress	externalAddress () const =0

Static Public Member Functions
static TDESocketDevice *	createDefault (TDESocketBase *parent)

static TDESocketDevice *	createDefault (TDESocketBase *parent, int capabilities)

static TDESocketDeviceFactoryBase *	setDefaultImpl (TDESocketDeviceFactoryBase *factory)

static void	addNewImpl (TDESocketDeviceFactoryBase *factory, int capabilities)

Static Public Member Functions inherited from KNetwork::TDESocketBase
static TQString	errorString (SocketError code)

static bool	isFatalError (int code)

Protected Member Functions
	TDESocketDevice (bool, const TDESocketBase *parent=0L)

virtual TQSocketNotifier *	createNotifier (TQSocketNotifier::Type type) const

Protected Member Functions inherited from KNetwork::KActiveSocketBase
void	setError (int status, SocketError error)

void	resetError ()

Protected Member Functions inherited from KNetwork::TDESocketBase
virtual bool	setSocketOptions (int opts)

virtual int	socketOptions () const

bool	hasDevice () const

void	setError (SocketError error)

Protected Attributes
int	m_sockfd

Detailed Description

Low-level socket functionality.

This class provides low-level socket functionality.

Most users will prefer "cooked" interfaces like those of KStreamSocket or TDEServerSocket.

Descended classes from this one provide some other kinds of socket functionality, like proxying or specific socket types.

Author: Thiago Macieira thiag.nosp@m.o.ma.nosp@m.cieir.nosp@m.a@kd.nosp@m.email.nosp@m..net

Definition at line 50 of file tdesocketdevice.h.

Member Enumeration Documentation

◆ Capabilities

enum KNetwork::TDESocketDevice::Capabilities

Capabilities for the socket implementation.

TDESocketDevice-derived classes can implement certain capabilities that are not available in the default class. These capabilities are described by these flags. The default TDESocketDevice class has none of these capabilities.

For the negative capabilities (inabilities, the CanNot* forms), when a capability is not present, the implementation will default to the original behaviour.

Enumerator
CanConnectString	Can connect to hostnames. If this flag is present, the string form of connect can be used.
CanBindString	Can bind to hostnames. If this flag is present, the string form of bind can be used
CanNotBind	Can not bind. If this flag is present, this implementation cannot bind
CanNotListen	Can not listen. If this flag is present, this implementation cannot listen
CanMulticast	Can send multicast as well as join/leave multicast groups.
CanNotUseDatagrams	Can not use datagrams. Note that this implies multicast capability not being available either.

Definition at line 63 of file tdesocketdevice.h.

Constructor & Destructor Documentation

◆ TDESocketDevice() [1/3]

TDESocketDevice::TDESocketDevice ( const TDESocketBase * parent = 0L )

explicit

Default constructor.

The parameter is used to specify which socket this object is used as a device for.

Definition at line 78 of file tdesocketdevice.cpp.

◆ TDESocketDevice() [2/3]

TDESocketDevice::TDESocketDevice ( int fd )

explicit

Constructs a new object around an already-open socket.

Note: you should write programs that create sockets through the classes whenever possible.

Definition at line 86 of file tdesocketdevice.cpp.

◆ ~TDESocketDevice()

TDESocketDevice::~TDESocketDevice ( )

virtual

Destructor.

This closes the socket if it's open.

Definition at line 103 of file tdesocketdevice.cpp.

◆ TDESocketDevice() [3/3]

TDESocketDevice::TDESocketDevice	(	bool	,
		const TDESocketBase *	parent = `0L`
	)

protected

Special constructor.

This constructor will cause the internal socket device NOT to be set. Use this if your socket device class takes another underlying socket device.

Parameters

parent the parent, if any

Definition at line 95 of file tdesocketdevice.cpp.

Member Function Documentation

◆ accept()

TDESocketDevice * TDESocketDevice::accept ( )

virtual

Accepts a new incoming connection.

Note: this function returns a socket of type TDESocketDevice.

Implements KNetwork::KPassiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 309 of file tdesocketdevice.cpp.

◆ addNewImpl()

void TDESocketDevice::addNewImpl	(	TDESocketDeviceFactoryBase *	factory,
		int	capabilities
	)

static

Adds a factory of TDESocketDevice objects to the list, along with its capabilities flag.

Definition at line 879 of file tdesocketdevice.cpp.

◆ bind()

bool TDESocketDevice::bind ( const KResolverEntry & address )

virtual

Binds this socket to the given address.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 232 of file tdesocketdevice.cpp.

◆ bytesAvailable()

TQ_LONG TDESocketDevice::bytesAvailable ( ) const

virtual

Returns the number of bytes available for reading without blocking.

Implements KNetwork::KActiveSocketBase.

Definition at line 367 of file tdesocketdevice.cpp.

◆ capabilities()

virtual int KNetwork::TDESocketDevice::capabilities ( ) const

inlinevirtual

Returns the set of capabilities this socket class implements.

The set of capabilities is defined as an OR-ed mask of Capabilities bits.

The default implementation is guaranteed to always return 0. That is, derived implementations always return bits where they differ from the system standard sockets.

Reimplemented in KNetwork::KHttpProxySocketDevice, KNetwork::KSocksSocketDevice, and KNetwork::KMulticastSocketImpl.

Definition at line 134 of file tdesocketdevice.h.

◆ close()

void TDESocketDevice::close ( )

virtual

Closes the socket.

Reimplemented from TQIODevice.

Use this function to close the socket this object is holding open.

Implements KNetwork::KPassiveSocketBase.

Reimplemented in KNetwork::KHttpProxySocketDevice.

Definition at line 180 of file tdesocketdevice.cpp.

◆ connect()

bool TDESocketDevice::connect ( const KResolverEntry & address )

virtual

Connect to a remote host.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KHttpProxySocketDevice, KNetwork::KSocksSocketDevice, and KNetwork::KMulticastSocketImpl.

Definition at line 276 of file tdesocketdevice.cpp.

◆ create() [1/2]

bool TDESocketDevice::create ( const KResolverEntry & address )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Creates a socket but don't connect or bind anywhere.

Definition at line 227 of file tdesocketdevice.cpp.

◆ create() [2/2]

bool TDESocketDevice::create	(	int	family,
		int	type,
		int	protocol
	)

virtual

Creates a socket but don't connect or bind anywhere.

This function is the equivalent of the system call socket(2).

Reimplemented in KNetwork::KMulticastSocketImpl.

Definition at line 201 of file tdesocketdevice.cpp.

◆ createDefault() [1/2]

TDESocketDevice * TDESocketDevice::createDefault ( TDESocketBase * parent )

static

Creates a new default TDESocketDevice object given the parent object.

The capabilities flag indicates the desired capabilities the object being created should possess. Those capabilities are not guaranteed: if no factory can provide such an object, a default object will be created.

Parameters

parent the TDESocketBase parent

Definition at line 839 of file tdesocketdevice.cpp.

◆ createDefault() [2/2]

TDESocketDevice * TDESocketDevice::createDefault	(	TDESocketBase *	parent,
		int	capabilities
	)

static

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.This will create an object only if the requested capabilities match.

Parameters

parent	the parent
capabilities	the requested capabilities

Definition at line 854 of file tdesocketdevice.cpp.

◆ createNotifier()

TQSocketNotifier * TDESocketDevice::createNotifier ( TQSocketNotifier::Type type ) const

protectedvirtual

Creates a socket notifier of the given type.

This function is called by readNotifier, writeNotifier and exceptionNotifier when they need to create a socket notifier (i.e., the first call to those functions after the socket is open). After that call, those functions cache the socket notifier and will not need to call this function again.

Reimplement this function in your derived class if your socket type requires a different kind of TQSocketNotifier. The return value should be deleteable with delete. (close deletes them).

Parameters

type	the socket notifier type

Definition at line 791 of file tdesocketdevice.cpp.

◆ disconnect()

bool TDESocketDevice::disconnect ( )

virtual

Disconnects this socket.

Implements KNetwork::KActiveSocketBase.

Definition at line 333 of file tdesocketdevice.cpp.

◆ exceptionNotifier()

TQSocketNotifier * TDESocketDevice::exceptionNotifier ( ) const

Returns a socket notifier for exceptional events on this socket.

The is created only when requested.

This function might return NULL.

Definition at line 645 of file tdesocketdevice.cpp.

◆ externalAddress()

TDESocketAddress TDESocketDevice::externalAddress ( ) const

virtual

Returns this socket's externally visible local address.

If this socket has a local address visible externally different from the normal local address (as returned by localAddress), then return it.

Certain implementations will use proxies and thus have externally visible addresses different from the local socket values. The default implementation returns the same value as localAddress.

Note: This function may return an empty TDESocketAddress. In that case, the externally visible address could/can not be determined.

Implements KNetwork::KPassiveSocketBase.

Reimplemented in KNetwork::KHttpProxySocketDevice, and KNetwork::KSocksSocketDevice.

Definition at line 602 of file tdesocketdevice.cpp.

◆ flush()

virtual void KNetwork::TDESocketDevice::flush ( )

inlinevirtual

This call is not supported on sockets.

Reimplemented from TQIODevice.

Definition at line 157 of file tdesocketdevice.h.

◆ listen()

bool TDESocketDevice::listen ( int backlog = 5 )

virtual

Puts this socket into listening mode.

Implements KNetwork::KPassiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 255 of file tdesocketdevice.cpp.

◆ localAddress()

TDESocketAddress TDESocketDevice::localAddress ( ) const

virtual

Returns this socket's local address.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 530 of file tdesocketdevice.cpp.

◆ open()

bool TDESocketDevice::open ( int mode )

virtual

Reimplementation from TQIODevice.

You should not call this function in sockets.

Definition at line 174 of file tdesocketdevice.cpp.

◆ peekBlock() [1/2]

TQ_LONG TDESocketDevice::peekBlock	(	char *	data,
		TQ_ULONG	maxlen
	)

virtual

Peeks data in the socket.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 459 of file tdesocketdevice.cpp.

◆ peekBlock() [2/2]

TQ_LONG TDESocketDevice::peekBlock	(	char *	data,
		TQ_ULONG	maxlen,
		TDESocketAddress &	from
	)

virtual

Peeks the data in the socket and the source address.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 480 of file tdesocketdevice.cpp.

◆ peerAddress()

TDESocketAddress TDESocketDevice::peerAddress ( ) const

virtual

Returns this socket's peer address.

If this implementation does proxying of some sort, this is the real external address, not the proxy's address.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KHttpProxySocketDevice, and KNetwork::KSocksSocketDevice.

Definition at line 566 of file tdesocketdevice.cpp.

◆ poll() [1/2]

bool TDESocketDevice::poll	(	bool *	input,
		bool *	output,
		bool *	exception = `0L`,
		int	timeout = `-1`,
		bool *	timedout = `0L`
	)

virtual

Executes a poll in the socket, via select(2) or poll(2).

The events polled are returned in the parameters pointers. Set any of them to NULL to disable polling of that event.

On exit, input, output and exception will contain true if an event of that kind is waiting on the socket or false if not. If a timeout occurred, set timedout to true (all other parameters are necessarily set to false).

Parameters

input	if set, turns on polling for input events
output	if set, turns on polling for output events
exception	if set, turns on polling for exceptional events
timeout	the time in milliseconds to wait for an event; 0 for no wait and any negative value to wait forever
timedout	on exit, will contain true if the polling timed out

Returns: true if the poll call succeeded and false if an error occurred

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 663 of file tdesocketdevice.cpp.

◆ poll() [2/2]

bool TDESocketDevice::poll	(	int	timeout = `-1`,
		bool *	timedout = `0L`
	)

Shorter version to poll for any events in a socket.

This call polls for input, output and exceptional events in a socket but does not return their states. This is useful if you need to wait for any event, but don't need to know which; or for timeouts.

Parameters

timeout	the time in milliseconds to wait for an event; 0 for no wait and any negative value to wait forever
timedout	on exit, will contain true if the polling timed out

Returns: true if the poll call succeeded and false if an error occurred

Definition at line 785 of file tdesocketdevice.cpp.

◆ readBlock() [1/2]

TQ_LONG TDESocketDevice::readBlock	(	char *	data,
		TQ_ULONG	maxlen
	)

virtual

Reads data from this socket.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 417 of file tdesocketdevice.cpp.

◆ readBlock() [2/2]

TQ_LONG TDESocketDevice::readBlock	(	char *	data,
		TQ_ULONG	maxlen,
		TDESocketAddress &	from
	)

virtual

Reads data and the source address from this socket.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 438 of file tdesocketdevice.cpp.

◆ readNotifier()

TQSocketNotifier * TDESocketDevice::readNotifier ( ) const

Returns a socket notifier for input on this socket.

The notifier is created only when requested. Whether it is enabled or not depends on the implementation.

This function might return NULL.

Definition at line 609 of file tdesocketdevice.cpp.

◆ setDefaultImpl()

TDESocketDeviceFactoryBase * TDESocketDevice::setDefaultImpl ( TDESocketDeviceFactoryBase * factory )

static

Sets the default TDESocketDevice implementation to use and return the old factory.

Parameters

factory the factory object for the implementation

Definition at line 871 of file tdesocketdevice.cpp.

◆ setSocketOptions()

bool TDESocketDevice::setSocketOptions ( int opts )

virtual

This implementation sets the options on the socket.

Reimplemented from KNetwork::TDESocketBase.

Definition at line 110 of file tdesocketdevice.cpp.

◆ socket()

int KNetwork::TDESocketDevice::socket ( ) const

inline

Returns the file descriptor for this socket.

Definition at line 122 of file tdesocketdevice.h.

◆ waitForMore()

TQ_LONG TDESocketDevice::waitForMore	(	int	msecs,
		bool *	timeout = `0L`
	)

virtual

Waits up to msecs for more data to be available on this socket.

This function is a wrapper against poll. This function will wait for any read events.

Implements KNetwork::KActiveSocketBase.

Definition at line 379 of file tdesocketdevice.cpp.

◆ writeBlock() [1/2]

TQ_LONG TDESocketDevice::writeBlock	(	const char *	data,
		TQ_ULONG	len
	)

virtual

Writes data to the socket.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 501 of file tdesocketdevice.cpp.

◆ writeBlock() [2/2]

TQ_LONG TDESocketDevice::writeBlock	(	const char *	data,
		TQ_ULONG	len,
		const TDESocketAddress &	to
	)

virtual

Writes the given data to the given destination address.

Implements KNetwork::KActiveSocketBase.

Reimplemented in KNetwork::KSocksSocketDevice.

Definition at line 506 of file tdesocketdevice.cpp.

◆ writeNotifier()

TQSocketNotifier * TDESocketDevice::writeNotifier ( ) const

Returns a socket notifier for output on this socket.

The is created only when requested.

This function might return NULL.

Definition at line 627 of file tdesocketdevice.cpp.

Member Data Documentation

◆ m_sockfd

int KNetwork::TDESocketDevice::m_sockfd

protected

The socket file descriptor.

It is used throughout the implementation and subclasses.

Definition at line 95 of file tdesocketdevice.h.

The documentation for this class was generated from the following files:

tdecore

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ Capabilities

Constructor & Destructor Documentation

◆ TDESocketDevice() [1/3]

◆ TDESocketDevice() [2/3]

◆ ~TDESocketDevice()

◆ TDESocketDevice() [3/3]

Member Function Documentation

◆ accept()

◆ addNewImpl()

◆ bind()

◆ bytesAvailable()

◆ capabilities()

◆ close()

◆ connect()

◆ create() [1/2]

◆ create() [2/2]

◆ createDefault() [1/2]

◆ createDefault() [2/2]

◆ createNotifier()

◆ disconnect()

◆ exceptionNotifier()

◆ externalAddress()

◆ flush()

◆ listen()

◆ localAddress()

◆ open()

◆ peekBlock() [1/2]

◆ peekBlock() [2/2]

◆ peerAddress()

◆ poll() [1/2]

◆ poll() [2/2]

◆ readBlock() [1/2]

◆ readBlock() [2/2]

◆ readNotifier()

◆ setDefaultImpl()

◆ setSocketOptions()

◆ socket()

◆ waitForMore()

◆ writeBlock() [1/2]

◆ writeBlock() [2/2]

◆ writeNotifier()

Member Data Documentation

◆ m_sockfd

tdecore

tdecore
