KNetwork::KPassiveSocketBase Class Reference

#include <tdesocketbase.h>

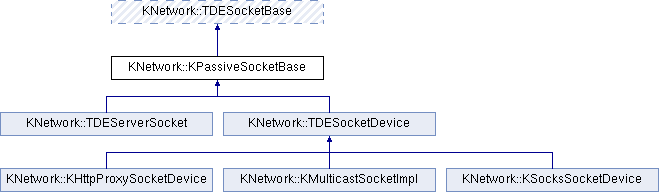

Inheritance diagram for KNetwork::KPassiveSocketBase:

Public Member Functions
	KPassiveSocketBase ()
virtual	~KPassiveSocketBase ()
virtual bool	bind (const KResolverEntry &address)=0
virtual bool	listen (int backlog)=0
virtual void	close ()=0
virtual KActiveSocketBase *	accept ()=0
virtual TDESocketAddress	localAddress () const =0
virtual TDESocketAddress	externalAddress () const =0
Public Member Functions inherited from KNetwork::TDESocketBase
	TDESocketBase ()
virtual	~TDESocketBase ()
virtual bool	setBlocking (bool enable)
bool	blocking () const
virtual bool	setAddressReuseable (bool enable)
bool	addressReuseable () const
virtual bool	setIPv6Only (bool enable)
bool	isIPv6Only () const
virtual bool	setBroadcast (bool enable)
bool	broadcast () const
TDESocketDevice *	socketDevice () const
virtual void	setSocketDevice (TDESocketDevice *device)
int	setRequestedCapabilities (int add, int remove=0)
SocketError	error () const
TQString	errorString () const
TQMutex *	mutex () const

Additional Inherited Members
Public Types inherited from KNetwork::TDESocketBase
enum	SocketOptions {   Blocking = 0x01 , AddressReuseable = 0x02 , IPv6Only = 0x04 , Keepalive = 0x08 ,   Broadcast = 0x10 }
enum	SocketError {   NoError = 0 , LookupFailure , AddressInUse , AlreadyCreated ,   AlreadyBound , AlreadyConnected , NotConnected , NotBound ,   NotCreated , WouldBlock , ConnectionRefused , ConnectionTimedOut ,   InProgress , NetFailure , NotSupported , Timeout ,   UnknownError , RemotelyDisconnected }
Static Public Member Functions inherited from KNetwork::TDESocketBase
static TQString	errorString (SocketError code)
static bool	isFatalError (int code)
Protected Member Functions inherited from KNetwork::TDESocketBase
virtual bool	setSocketOptions (int opts)
virtual int	socketOptions () const
bool	hasDevice () const
void	setError (SocketError error)

Detailed Description

Abstract base class for passive sockets.

This socket provides the initial functionality for passive sockets, i.e., sockets that accept incoming connections.

Author

Thiago Macieira thiag.nosp@m.o.ma.nosp@m.cieir.nosp@m.a@kd.nosp@m.email.nosp@m..net

Definition at line 683 of file tdesocketbase.h.

Constructor & Destructor Documentation

KPassiveSocketBase()

KPassiveSocketBase::KPassiveSocketBase

(

)

Constructor.

Definition at line 321 of file tdesocketbase.cpp.

~KPassiveSocketBase()

KPassiveSocketBase::~KPassiveSocketBase ( )

virtual

Destructor.

Definition at line 325 of file tdesocketbase.cpp.

Member Function Documentation

accept()

virtual KActiveSocketBase * KNetwork::KPassiveSocketBase::accept ( )

pure virtual

Accepts a new incoming connection.

If this socket was in listening mode, you can call this function to accept an incoming connection.

If this function cannot accept a new connection (either because it is not listening for one or because the operation would block), it will return NULL.

Also note that descended classes will override this function to return specialised socket classes.

Implemented in KNetwork::TDEServerSocket, KNetwork::KSocksSocketDevice, and KNetwork::TDESocketDevice.

bind()

virtual bool KNetwork::KPassiveSocketBase::bind ( const KResolverEntry &  address )

pure virtual

Binds this socket to the given address.

The socket will be constructed with the address family, socket type and protocol as those given in the address object.

Parameters

address

the address to bind to

Returns

true if the binding was successful, false otherwise

Implemented in KNetwork::TDEServerSocket, KNetwork::KSocksSocketDevice, and KNetwork::TDESocketDevice.

close()

virtual void KNetwork::KPassiveSocketBase::close ( )

pure virtual

Closes this socket.

All resources used are freed. Note that closing a passive socket does not close the connections accepted with it.

Implemented in KNetwork::KHttpProxySocketDevice, KNetwork::TDEServerSocket, and KNetwork::TDESocketDevice.

externalAddress()

virtual TDESocketAddress KNetwork::KPassiveSocketBase::externalAddress ( ) const

pure virtual

Returns this socket's externally-visible address if known.

Implemented in KNetwork::KHttpProxySocketDevice, KNetwork::TDEServerSocket, KNetwork::KSocksSocketDevice, and KNetwork::TDESocketDevice.

listen()

virtual bool KNetwork::KPassiveSocketBase::listen ( int  backlog )

pure virtual

Puts this socket into listening mode.

Placing a socket in listening mode means that it will be allowed to receive incoming connections from remote hosts.

Note that some socket types or protocols cannot be put in listening mode.

Parameters

backlog

the number of accepted connections to hold before starting to refuse

Returns

true if the socket is now in listening mode

Implemented in KNetwork::KSocksSocketDevice, KNetwork::TDEServerSocket, and KNetwork::TDESocketDevice.

localAddress()

virtual TDESocketAddress KNetwork::KPassiveSocketBase::localAddress ( ) const

pure virtual

Returns this socket's local address.

Implemented in KNetwork::TDEServerSocket, KNetwork::KSocksSocketDevice, and KNetwork::TDESocketDevice.

---

The documentation for this class was generated from the following files:

• tdesocketbase.h
• tdesocketbase.cpp
