#include <tdemulticastsocketdevice.h>

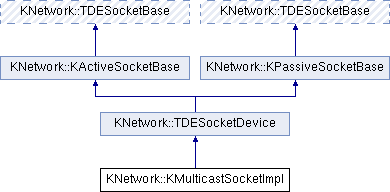

Inheritance diagram for KNetwork::KMulticastSocketImpl:

Public Member Functions
	KMulticastSocketImpl (const TDESocketBase *=0L)

virtual	~KMulticastSocketImpl ()

virtual int	capabilities () const

virtual bool	create (int family, int type, int protocol)

virtual bool	connect (const KResolverEntry &address)

virtual int	timeToLive () const

virtual bool	setTimeToLive (int ttl)

virtual bool	multicastLoop () const

virtual bool	setMulticastLoop (bool enable)

virtual KNetworkInterface	networkInterface ()

virtual bool	setNetworkInterface (const KNetworkInterface &iface)

virtual bool	joinGroup (const TDESocketAddress &group)

virtual bool	joinGroup (const TDESocketAddress &group, const KNetworkInterface &iface)

virtual bool	leaveGroup (const TDESocketAddress &group)

virtual bool	leaveGroup (const TDESocketAddress &group, const KNetworkInterface &iface)

Public Member Functions inherited from KNetwork::TDESocketDevice
	TDESocketDevice (const TDESocketBase *=0L)

	TDESocketDevice (int fd)

virtual	~TDESocketDevice ()

int	socket () const

virtual int	capabilities () const

virtual bool	setSocketOptions (int opts)

virtual bool	open (int mode)

virtual void	close ()

virtual void	flush ()

virtual bool	create (int family, int type, int protocol)

bool	create (const KResolverEntry &address)

virtual bool	bind (const KResolverEntry &address)

virtual bool	listen (int backlog=5)

virtual bool	connect (const KResolverEntry &address)

virtual TDESocketDevice *	accept ()

virtual bool	disconnect ()

virtual TQ_LONG	bytesAvailable () const

virtual TQ_LONG	waitForMore (int msecs, bool *timeout=0L)

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen)

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen)

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len)

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len, const TDESocketAddress &to)

virtual TDESocketAddress	localAddress () const

virtual TDESocketAddress	peerAddress () const

virtual TDESocketAddress	externalAddress () const

TQSocketNotifier *	readNotifier () const

TQSocketNotifier *	writeNotifier () const

TQSocketNotifier *	exceptionNotifier () const

virtual bool	poll (bool input, bool output, bool exception=0L, int timeout=-1, bool timedout=0L)

bool	poll (int timeout=-1, bool *timedout=0L)

Public Member Functions inherited from KNetwork::KActiveSocketBase
	KActiveSocketBase ()

virtual	~KActiveSocketBase ()

virtual bool	bind (const KResolverEntry &address)=0

virtual bool	connect (const KResolverEntry &address)=0

virtual bool	disconnect ()=0

virtual Offset	size () const

virtual Offset	at () const

virtual bool	at (Offset)

virtual bool	atEnd () const

virtual TQ_LONG	bytesAvailable () const =0

virtual TQ_LONG	waitForMore (int msecs, bool *timeout=0L)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG len)=0

virtual TQ_LONG	readBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen)=0

virtual TQ_LONG	peekBlock (char *data, TQ_ULONG maxlen, TDESocketAddress &from)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len)=0

virtual TQ_LONG	writeBlock (const char *data, TQ_ULONG len, const TDESocketAddress &to)=0

virtual int	getch ()

virtual int	putch (int ch)

virtual int	ungetch (int)

virtual TDESocketAddress	localAddress () const =0

virtual TDESocketAddress	peerAddress () const =0

Public Member Functions inherited from KNetwork::TDESocketBase
	TDESocketBase ()

virtual	~TDESocketBase ()

virtual bool	setBlocking (bool enable)

bool	blocking () const

virtual bool	setAddressReuseable (bool enable)

bool	addressReuseable () const

virtual bool	setIPv6Only (bool enable)

bool	isIPv6Only () const

virtual bool	setBroadcast (bool enable)

bool	broadcast () const

TDESocketDevice *	socketDevice () const

virtual void	setSocketDevice (TDESocketDevice *device)

int	setRequestedCapabilities (int add, int remove=0)

SocketError	error () const

TQString	errorString () const

TQMutex *	mutex () const

Public Member Functions inherited from KNetwork::KPassiveSocketBase
	KPassiveSocketBase ()

virtual	~KPassiveSocketBase ()

virtual bool	bind (const KResolverEntry &address)=0

virtual bool	listen (int backlog)=0

virtual void	close ()=0

virtual KActiveSocketBase *	accept ()=0

virtual TDESocketAddress	localAddress () const =0

virtual TDESocketAddress	externalAddress () const =0

Additional Inherited Members
Public Types inherited from KNetwork::TDESocketDevice
enum	Capabilities { CanConnectString = 0x01 , CanBindString = 0x02 , CanNotBind = 0x04 , CanNotListen = 0x08 , CanMulticast = 0x10 , CanNotUseDatagrams = 0x20 }

Public Types inherited from KNetwork::TDESocketBase
enum	SocketOptions { Blocking = 0x01 , AddressReuseable = 0x02 , IPv6Only = 0x04 , Keepalive = 0x08 , Broadcast = 0x10 }

enum	SocketError { NoError = 0 , LookupFailure , AddressInUse , AlreadyCreated , AlreadyBound , AlreadyConnected , NotConnected , NotBound , NotCreated , WouldBlock , ConnectionRefused , ConnectionTimedOut , InProgress , NetFailure , NotSupported , Timeout , UnknownError , RemotelyDisconnected }

Static Public Member Functions inherited from KNetwork::TDESocketDevice
static TDESocketDevice *	createDefault (TDESocketBase *parent)

static TDESocketDevice *	createDefault (TDESocketBase *parent, int capabilities)

static TDESocketDeviceFactoryBase *	setDefaultImpl (TDESocketDeviceFactoryBase *factory)

static void	addNewImpl (TDESocketDeviceFactoryBase *factory, int capabilities)

Static Public Member Functions inherited from KNetwork::TDESocketBase
static TQString	errorString (SocketError code)

static bool	isFatalError (int code)

Protected Member Functions inherited from KNetwork::TDESocketDevice
	TDESocketDevice (bool, const TDESocketBase *parent=0L)

virtual TQSocketNotifier *	createNotifier (TQSocketNotifier::Type type) const

Protected Member Functions inherited from KNetwork::KActiveSocketBase
void	setError (int status, SocketError error)

void	resetError ()

Protected Member Functions inherited from KNetwork::TDESocketBase
virtual bool	setSocketOptions (int opts)

virtual int	socketOptions () const

bool	hasDevice () const

void	setError (SocketError error)

Protected Attributes inherited from KNetwork::TDESocketDevice
int	m_sockfd

Detailed Description

The low-level backend for multicasting sockets.

This class is an interface providing methods for handling multicast operations.

Author: Thiago Macieira thiag.nosp@m.o.ma.nosp@m.cieir.nosp@m.a@kd.nosp@m.email.nosp@m..net

Definition at line 45 of file tdemulticastsocketdevice.h.

Constructor & Destructor Documentation

◆ KMulticastSocketImpl()

KNetwork::KMulticastSocketImpl::KMulticastSocketImpl ( const TDESocketBase * = 0L )

Constructor.

◆ ~KMulticastSocketImpl()

virtual KNetwork::KMulticastSocketImpl::~KMulticastSocketImpl ( )

virtual

Destructor.

Member Function Documentation

◆ capabilities()

virtual int KNetwork::KMulticastSocketImpl::capabilities ( ) const

virtual

Sets our capabilities.

Reimplemented from KNetwork::TDESocketDevice.

◆ connect()

virtual bool KNetwork::KMulticastSocketImpl::connect ( const KResolverEntry & address )

virtual

Overrides connection.

Multicast sockets may not connect.

Reimplemented from KNetwork::TDESocketDevice.

◆ create()

virtual bool KNetwork::KMulticastSocketImpl::create	(	int	family,
		int	type,
		int	protocol
	)

virtual

Overrides the socket creation.

Reimplemented from KNetwork::TDESocketDevice.

◆ joinGroup() [1/2]

virtual bool KNetwork::KMulticastSocketImpl::joinGroup ( const TDESocketAddress & group )

virtual

Joins a multicast group.

The group to be joined is identified by the group parameter.

Parameters

group the multicast group to join

Returns: true on success

◆ joinGroup() [2/2]

virtual bool KNetwork::KMulticastSocketImpl::joinGroup	(	const TDESocketAddress &	group,
		const KNetworkInterface &	iface
	)

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Joins a multicast group.

This function also specifies the network interface to be used.

◆ leaveGroup() [1/2]

virtual bool KNetwork::KMulticastSocketImpl::leaveGroup ( const TDESocketAddress & group )

virtual

Leaves a multicast group.

The group being left is given by its address in the group parameter.

Parameters

group the group to leave

Returns: true on successful leaving the group

◆ leaveGroup() [2/2]

virtual bool KNetwork::KMulticastSocketImpl::leaveGroup	(	const TDESocketAddress &	group,
		const KNetworkInterface &	iface
	)

virtual

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Leaves a multicast group.

◆ multicastLoop()

virtual bool KNetwork::KMulticastSocketImpl::multicastLoop ( ) const

virtual

Retrieves the flag indicating if sent packets will be echoed back to sender.

◆ networkInterface()

virtual KNetworkInterface KNetwork::KMulticastSocketImpl::networkInterface ( )

virtual

Retrieves the network interface this socket is associated to.

◆ setMulticastLoop()

virtual bool KNetwork::KMulticastSocketImpl::setMulticastLoop ( bool enable )

virtual

Sets the flag indicating the loopback of packets to the sender.

Parameters

enable if true, will echo back

Returns: true if setting the value was successful.

◆ setNetworkInterface()

virtual bool KNetwork::KMulticastSocketImpl::setNetworkInterface ( const KNetworkInterface & iface )

virtual

Sets the network interface on which this socket should work.

Parameters

iface the interface to associate with

Returns: true if setting the value was successful.

◆ setTimeToLive()

virtual bool KNetwork::KMulticastSocketImpl::setTimeToLive ( int ttl )

virtual

Sets the time-to-live/hop count for outgoing multicast packets.

Parameters

ttl	the hop count, from 0 to 255

Returns: true if setting the value was successful.

◆ timeToLive()

virtual int KNetwork::KMulticastSocketImpl::timeToLive ( ) const

virtual

Retrieves the time-to-live/hop count value on multicast packets being sent.

The documentation for this class was generated from the following file:

tdemulticastsocketdevice.h
